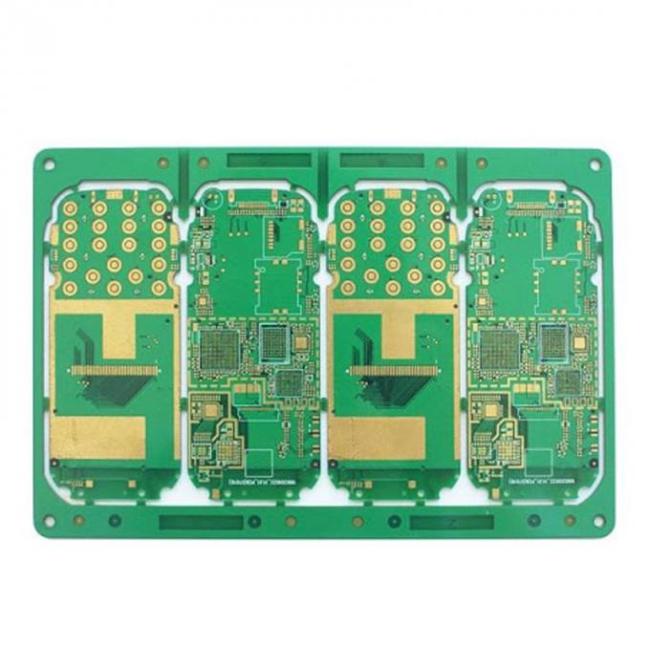

Customized Smart Home PCB Board Assembly 0.4mm thick Flexible 3mil
Customized Smart Home PCB Board Assembly 0.4mm Thick Flexible
Smart Home PCB Customized Designs Pcb Home Machine Assembly Flexible Manufacture Line Pcb
Leadsintec offers a wide selection of high-temperature PCB product manufacturing services either with FR-4 or other high-quality heat- and temperature-resistant Tg materials. We are able to perform high-temperature PCB fabrication for automotive, industry, and high-temperature electronics applications. We can manufacture High-Tg PCBs with a Tg value of up to 180°C. The following table lists some of our commonly used materials for High-Tg PCB production.
| Material | TG (DSC, °C) |
Td (Wt, °C) |
CTE-z (ppm/°C) |
Td260 (min) |
Td288 (min) |
| S1141 (FR4) | 175 | 300 | 55 | 8 | / |
| S1000-2M (FR4) | 180 | 345 | 45 | 60 | 20 |
| IT180 | 180 | 345 | 45 | 60 | 20 |
| Rogers 4350B | 280 | 390 | 50 | / | / |
Regardless of the scope or complexity of your PCB application, we have the technical expertise to develop customized PCB boards that meet your specific demands. Check our capabilities in here:
| Feature | Capability |
| Quality Grade | Standard IPC 2 |
| Number of Layers | 2 - 40layers |
| Order Quantity | 1pc - 10000+pcs |
| Material | S1141 (FR4), S1000-2M (FR4), IT180, Rogers 4350B |
| Board Size | Min 6mm x 6mm | Max 500mm x 900mm |
| Board Thickness | 0.4mm - 6.5mm |
| Copper Weight (Finished) | 0.5oz - 2.0oz |
| Min Tracing/Spacing | 3mil/3mil |
| Solder Mask Sides | As per the file |
| Solder Mask Color | Green, White, Blue, Black, Red, Yellow |
| Silkscreen Sides | As per the file |
| Silkscreen Color | White, Black, Yellow |
| Surface Finish | HASL - Hot Air Solder Leveling Lead Free HASL - RoHS ENIG - Electroless Nickle/Immersion Gold - RoHS Immersion Silver - RoHS Immersion Tin - RoHS OSP - Organic Solderability Preservatives - RoHS |
| Min Annular Ring | 4mil |
| Min Drilling Hole Diameter | 6mil |
| Other Techniques | Gold fingers Blind/Buried Vias Countersink Holes |
Leadsintec is the one-stop pcb and pcba factory, with ISO9001, ISO14001, ISO13485 & IATF16949 certificates, can ensure high-quality pcb pcba service for customers of smart home, automotive, medical, industry, communication, military, aerospace, etc.
If you're not sure whether your particular operation requires high-TG PCB boards or how exactly a TG PCB works to protect your sensitive circuits during implementation, we're happy to tell you everything you need to know.
