1OZ 2OZ 3OZ Fast PCB Prototyping Service Rigid Flex High Frequency
1OZ 2OZ 3OZ Fast PCB Prototyping Service Rigid Flex High Frequency
Shenzhen Controller Prototype PCB Assembly Electronic PCB Cricuit Board Assembly
Leadsintec is a China high-tech PCB and Assembly Manufacturer. It is currently the fast growing high-tech company with leading technology In China's printed circuit board and Assembly industry.
We have an over 20 years experience Technical team and hard-working team that can satisfy customers from High end PCB manufacturing and assembly.
Leadsintec specializes in prototype development and Medium volume production of high-end printed circuit boards , component purchasing and quick turn Assembly .

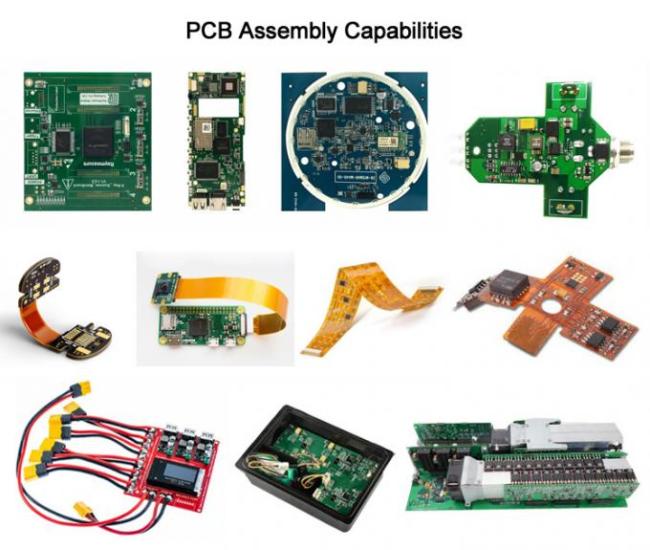

Our products cover multi-layer 2 to 48 layers , HDI boards 5 to 7 days, RF board , Rigid-flex, flex , High frequency and Assembly.
Our products cover multi-layer 2 to 48 layers, HDI boards, RF board, Rigid-flex, flex, High frequency and Assembly.
| Article | Description | Capability | |
| Sercive | PCB and SMT assembly with one-stop service | ||
| Material | Laminate materials | FR4, high TG FR4, high frequency, alum, FPC | |
| Board cutting | Number of layers | 1-48 | |
|
Min.thickness for inner layers (Cu thickness are excluded) |
0.003”(0.07mm) | ||
| Board thickness | Standard | (0.1-4mm±10%) | |
| Min. | Single/Double:0.008±0.004” | ||
| 4layer:0.01±0.008” | |||
| 8layer:0.01±0.008” | |||
| Bow and twist | 7/1000 | ||
| Copper weight | Outer Cu weight | 0.5-4 0z | |
| Inner Cu weight | 0.5-3 0z | ||
| Drilling | Min size | 0.0078”(0.2mm) | |
| Drill deviation | ±0.002″(0.05mm) | ||
| PTH hole tolerance | ±0.002″(0.005mm) | ||
| NPTH hole tolerance | ±0.002″(0.005mm) | ||
|
Solder mask
|
Color | Green,white,black,red,blue… | |
| Min solder mask clearanace | 0.003″(0.07mm) | ||
| Thickness | (0.012*0.017mm) | ||
| Silkscreen | Color | white,black,yellow,blue… | |
| Min size | 0.006″(0.15mm) | ||
| E-test | Function Test | 100% Functional test | |
| PCBA Testing | X-ray,AOI Test,Functional test | ||
| Pcb assembly | one-stop service electronic manufacxturer service | ||
| Component sourcing | Yes | ||
| Certificate | IATF16949,ISO9001,ISO14001,ISO13485 | ||
| Tolerance of pcb | ±5% | ||
| Max size of finish board | 700*650mm | ||
| MOQ | NO MOQ (1pcs) | ||
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | ||
| PCB outline | Square,circle,irregular(with jigs) | ||
| package | QFN,BGA,SSOP,PLCC,LGA | ||
| Sub-assembly | Plastic,metal,screen | ||
In the product PCB manufacturing assembly ,warehousing logistics and other aspects we strictly follow industry standards to ensure our products meet IPC standards and other special requirement.

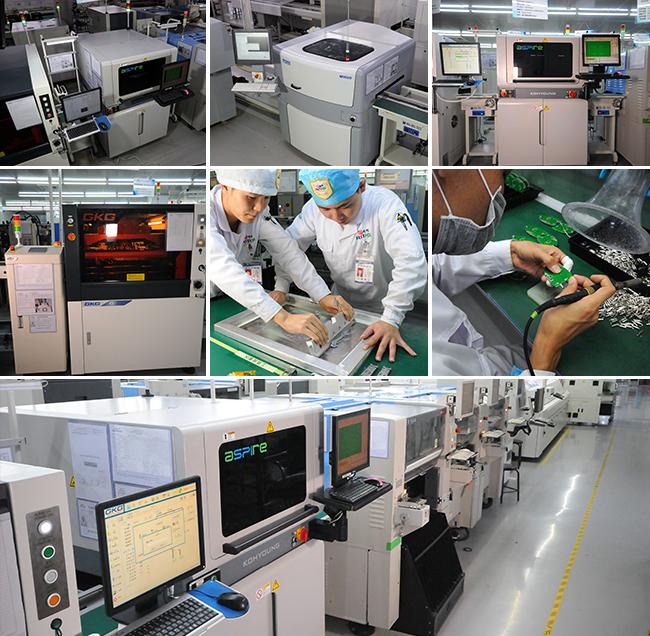

Our PCB and assembly factory has introduced the most advanced automation equipment like Auto plating line , Laser drill machine , auto dry film , AOI , Auto printing silkscreen machine , Auto inspection machine , Auto E-test machine , Vertical spray coating, auto-loaded and uploaded machine .all these auto machine can speed up lead time and reduce scrap rate . make sure our board has great quality, It can realize fast delivery of double-sided boards in 12 hours, four-layer boards in 24 hours six-layer boards in 48 hours and eight-layer boards in 72 hours. HDI board 5 to 7 days , PCB assembly can be 1 to 3 days .
More than 20 years of continuous innovation and development, Leadsintec completed the global business PCB fabrication and assembly , its can leading position in PCB industry.
Our business philosophy is green production pollution prevention energy saving excellent quality continuous improvement customer satisfaction.
Leadsintec always adheres to the customer first, Fast delivery quality in mind innovation and win-win. To become a world-class PCB one-stop solution provider.
Millions of circuit boards are produced here every year, which provides superior service for automotive electronics, medical electronics, power communications, industrial automation, intelligent home and other industries around the world. We will continue to improve our quality and service; customer satisfaction and development of science and technology are our eternal motivation.
