2OZ Led Tv Custom PCB Assembly
| Name | Contract Automotive Electronics PCBA Board Hasl Enig Surface Finish | Keyword | Mid Volume PCB Assembly |
|---|---|---|---|
| Board Thickness | Single/Double:0.008±0.004” | Laminate Materials | FR4, High TG FR4, High Frequency, Alum, FPC |
| Max Size Of Finish Board | 700*460mm | Sub-assembly | Plastic,metal,screen |
| Min Space | 0.075mm | Surface Finish | HASL,ENIG,immersion Silver,immersion Tin,OSP |
| ROHS | CANEC1308721101 | Process Characteristics | HDI Blind Buried Hole Process, High BGA Density, Small Hole-To-Line Spacing |
| Solder Mask | Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue | ||
| High Light |
Automotive Electronics PCBA Board,ENIG Surface PCBA Board,hasl pcba surface finish |
||
Shenzhen PCB&PCBA Manufacturer Custom OEM Electronic Automotive Circuit Board

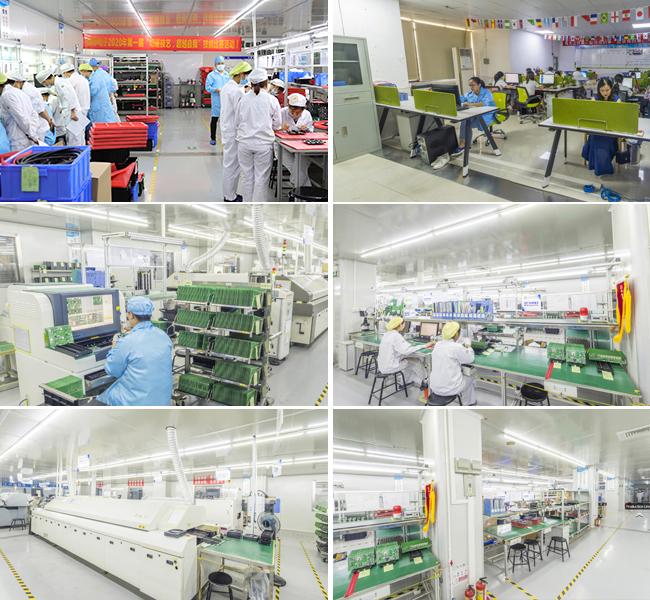

Company information
JINGBANG has the capability to manufacture pcb ranging from basic single sided boards up to 48 layer multilayers ,and provide one stop turnkey services, including pcb layout, manufacture, assembly, components sourcing and function testing. The superior service we offer our customers is the key to our success and our mission has remained the same since we started business in 2007: to provide high quality, technically advanced products within the customer’s timescales. This commitment, combined with the wealth of experience and expertise we have built up over the years, means we can offer a total solution to our customers PCB requirements – from front end engineering through to in time deliveries.
Product description:
Combination of hard and soft pcb, automotive electronics pcb, PCB processing to find Leadsintec, circuit board rapid proofing, high frequency circuit board, front temperature gun circuit board, PCBA semi-finished products and OEM production, to create a domestic PCB industry leader, multi-layer PCB circuit Board, mixed voltage circuit board
Production Capability:
| Item |
PCB Board Fabrication |
| 1.Base Material | FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon |
| 2.Layers | 1-28 |
| 3.Finised inner/outer copper thickness | 1-6OZ |
| 4.Finished board thickness | 0.2-7.0mm |
| 7.Min hole size | Mechanical hole: 0.15mm Laser hole: 0.1mm |
| 9.Controlled Impedance | +/-5% |
| 13.Plugging vias capability | 0.2-0.8mm |
| 15.Outline profile | Rout/ V-cut/ Bridge/ Stamp hole |
| 16.Surface treatment | HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OPS… |
Leadsintec has focus on one-stop pcb manufacturing and assembly service over 20 years,service business include: industrial pcba, automotive pcba, medical pcba, smart home pcba, communication pcba, military pcba, aerospace pcba etc.
