Programmable Lead Free PCB Assembly 4OZ High TG FR4 Electonic
Pcb Population Manufacturing Service Board Pcb Fabrication And Assembly
Product Description:
| Article | Description | Capability | |
| Sercive | PCB and SMT assembly with one-stop service | ||

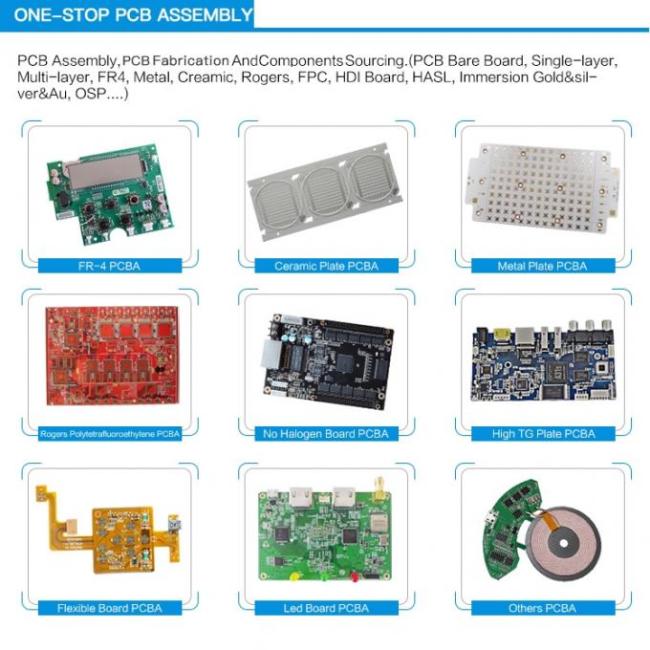

| Material | Laminate materials | FR4, high TG FR4, high frequency, alum, FPC | |
| Board cutting | Number of layers | 1-48 | |
|
Min.thickness for inner layers (Cu thickness are excluded) |
0.003”(0.07mm) | ||
| Board thickness | Standard | (0.1-4mm±10%) | |
| Min. | Single/Double:0.008±0.004” | ||
| 4layer:0.01±0.008” | |||
| 8layer:0.01±0.008” | |||
| Bow and twist | 7/1000 | ||
| Copper weight | Outer Cu weight | 0.5-4 0z | |
| Inner Cu weight | 0.5-3 0z | ||
| Drilling | Min size | 0.0078”(0.2mm) | |
| Drill deviation | ±0.002″(0.05mm) | ||
| PTH hole tolerance | ±0.002″(0.005mm) | ||
| NPTH hole tolerance | ±0.002″(0.005mm) | ||
|
Solder mask
|
Color | Green,white,black,red,blue… | |
| Min solder mask clearanace | 0.003″(0.07mm) | ||
| Thickness | (0.012*0.017mm) | ||
| Silkscreen | Color | white,black,yellow,blue… | |
| Min size | 0.006″(0.15mm) | ||
| E-test | Function Test | 100% Functional test | |
| PCBA Testing | X-ray,AOI Test,Functional test | ||
| Pcb assembly | one-stop service electronic manufacxturer service | ||
| Component sourcing | Yes | ||
| Certificate | IATF16949, ISO13485, ISO9001 | ||
| Delivery time: | PCB | 3-12days | |
| PCBA | 8-20days | ||
| Tolerance of pcb | ±5% | ||
| Max size of finish board | 450*450mm | ||
| MOQ | NO MOQ (1pcs) | ||
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | ||
| PCB outline | Square,circle,irregular(with jigs) | ||
| package | QFN,BGA,SSOP,PLCC,LGA | ||
| Sub-assembly | Plastic,metal,screen | ||
Leadsintec has focused on high quality pcb assembly over 20 years, and it’s arm to better serve for industry pcba,automotive pcba, medical pcba,military pcba, smart home pcba, communication pcba, militay pcba, aerospace pcba etc.
Leadsintec A is the most cost-effective manufacturer with procurement team average pcba industry experience over 15 years, providing the most competitive pcba price and high quality pcb components for customers of medical, automotive, industrial control etc.

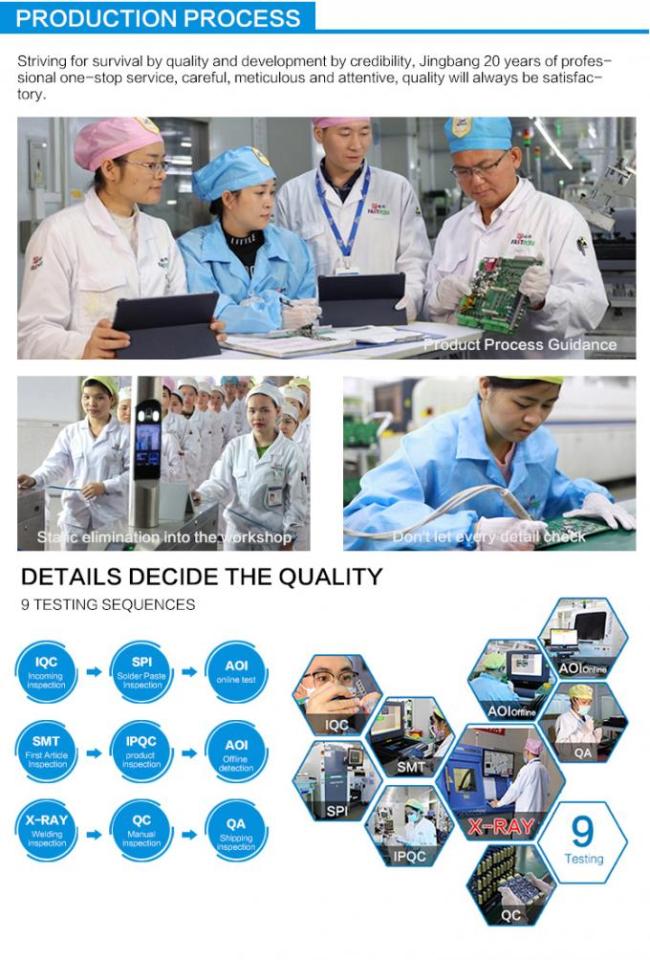

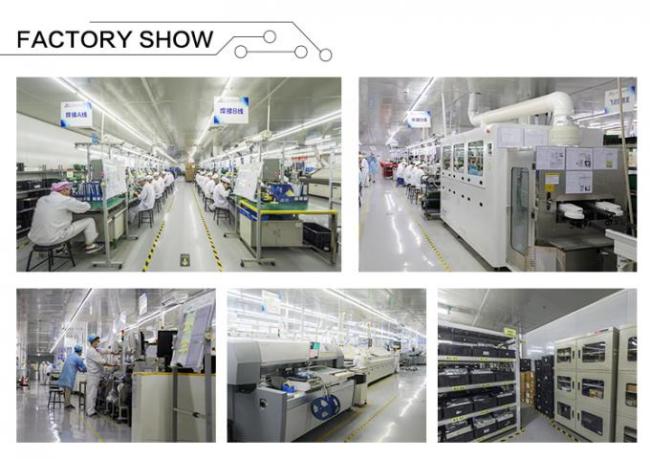

With ISO9001,13485, 14000 and IATF16949 certificates, complete ESD protection & dust free smt workshop, experienced engineer team, ERP pcb process control online, 9 steps pcb testing, ensuring high quality pcb & pcba service.
Due to quality oriented, Leadsintec has continuous orders in such fierce competition pcba market environment, welcome to consult or send a inquiry to get best pcb quotation.
