OEM Electronic EMS PCB Assembly High Frequency 4OZ 3OZ 1.6mm Thickness
OEM Electronic EMS PCB Assembly High Frequency 4OZ 1.6mm Thickness
EMS Pcb Assembly Pcba Pcba Circuit Board Assembly PCB Assembly Service OEM Electronic PCBA Circuit Board Assembly
Service
* Small to a medium volume PCB manufacturer
* Multi PCB types manufacturer
* EMS/PCBA/OEM customers reliable PCB partner
* Trustworthy supplier for PCB trading companies
Product parameters:
| Description | Capability |

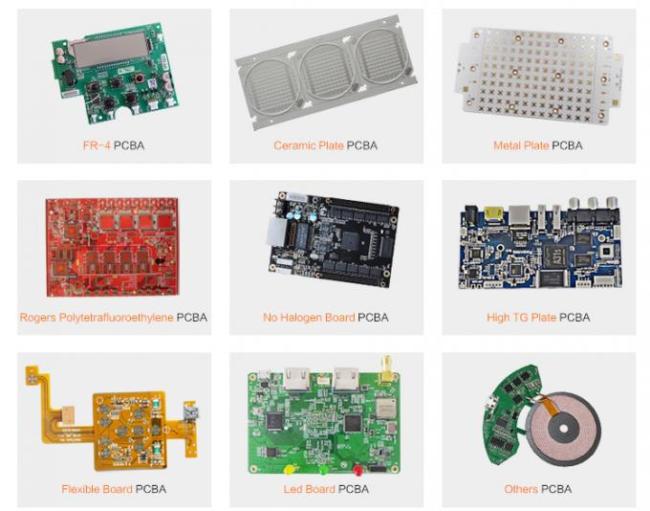

| Laminate materials | FR4, High TG FR4, High Frequency, Alum, FPC... |
| Number of layers | 1-48 |
| Min.thickness for inner layers (Cu thickness are excluded) |
0.003”(0.07mm) |
| Standard | (0.1-4mm±10%) |
| Board Thickness | Single/Double:0.008±0.004” |
| 4layer:0.01±0.008” | |
| 8layer:0.01±0.008” | |
| Bow and twist | no more than 7/1000 |
| Outer Cu weight | 0.5-4 Oz |
| Inner Cu weight | 0.5-3 Oz |
| Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) |
| PTH hole tolerance | ±0.002″(0.005mm) |
| NPTH hole tolerance | ±0.002″(0.005mm) |
| Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) |
| Solder Mask Thickness | (0.012*0.017mm) |
| Silkscreen Color | white,black,yellow,blue… |
| Silkscreen Min size | 0.006″(0.15mm) |
| Max Size of Finish Board | 700*460mm |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… |
| PCB Outline | Square,circle,irregular(with jigs) |
| Package | QFN,BGA,SSOP,PLCC,LGA |
Leadsintec Technology Co., Ltd is a professional PCB manufacturer in China, Shenzhen. With 20 years of development, FASPCBA turns into a first class manufacturer of HDI PCB, with production capability 35,000 square meters. Leadsintec is providing high quality bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world, Our main market is Europe, north USA, Australia, South America, and Asia.
ASTPCBA has been selected as the “excellent partner of the year” by numerous well-known enterprises, and won many domestic and authorized certifications at home and abroad, such as Chinese high-tech project certification, ISO 9001, IATF 16949 quality management system standard and customized CE, UL, FCC and other product certifications according to the customer's requirements.
Millions of circuit boards are produced here every year, which provides superior service for automotive electronics, medical electronics, power communications, industrial automation, intelligent home and other industries around the world. We will continue to improve our quality and service; customer satisfaction and development of science and technology are our eternal motivation.
Delivery time for PCB |
|||
| Layer | Prototype |
Mass Productions |
|
| Quick Turn | Unual Time | ||
| 2 | 24 hours | 3-4 days | 8-10 days |
| 4 | 48 hours | 5-6 days | 10-12 days |
| 6 | 72 hours | 6-8 days | 12-14 days |
| 8 | 96 hours | 8-10 days | 14-16 days |
| 10 | 120 hours | 12-14 days | 16-18 days |
| ... | ... | ... | ... |
| Delivery Time for PCBA | ||
| Order Conditions | Standard Delivery Date | The fastest Delivery Date |
| Prototype (<20 pcs) | 2 days | 8 hours |
| Small Volum (20-100 pcs) | 3 days | 12 hours |
| Medium Volum(100-1000 pcs) | 6 days | 24 hours |
| Mass productions (>1000 pcs) | Depends on BOM | Depends on BOM |
Leadsintec is the best pcba factory in china for customers of aerospace, automotive, medical, industry, military, smart home, communication, which keep long-term cooperation with domestic and abroad clients over 20 years.
