ODM Multilayer EMS Components Assembly FR4 CEM1 CEM3 Hight TG
ODM Multilayer EMS Components Assembly FR4 CEM1 CEM3 Hight TG
EMS Multilayer Printer Circuit Board Pcb Manufacturer 13 Years Ems Experience Pcb Manufacture Assembly
PCB Capability
| Article | Description | Capability |
| Material | Laminate materials | FR4, High TG FR4, High Frequency, Alum, FPC... |
| Board Cutting | Number of layers | 1-48 |
| Min.thickness for inner layers (Cu thickness are excluded) |
0.003”(0.07mm) | |
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” | |
| 4layer:0.01±0.008” | ||
| 8layer:0.01±0.008” | ||
| Bow and twist | no more than 7/1000 | |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z | |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) | |
| PTH hole tolerance | ±0.002″(0.005mm) | |
| NPTH hole tolerance | ±0.002″(0.005mm) | |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) | |
| Thickness | (0.012*0.017mm) | |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) | |
| Max Size of Finish Board | 700*460mm | |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | |
| PCB Outline | Square,circle,irregular(with jigs) | |
| Package | QFN,BGA,SSOP,PLCC,LGA | |
Company Profile
Leadsintec Co.,Ltd is an expert PCBA manufacturing factory located in China mainland Shenzhen. Its parent company is JINGBANG(INTERNATIONAL)GROUP .With ten years of development,from a small scale printed circuit board enterprises and companies, Leadsintec turns into a first class manufacturer that could provide HDI, SMT (Surface mounting technology) service as one unit. Leadsintec exclusively offer OEM service to those domestic and overseas high technology enterprise and enterprises and companies.
Leadsintec was honored as an excellent supplier annually by many well-known companies both at home and abroad, and was defined as the outstanding private individual high technology enterprise by ShenZhen Scientific Technology Bureau.
Leadsintec integrates a team of experienced technical consultants and experts in the industry to establish a reliable, lean and convenient manufacturing platform in the fields of automotive electronics, medical electronics, smart home, new energy, and industrial control; and to create a comprehensive PCBA one-stop manufacturing core technology. Solution solution capabilities, to provide customers with advanced patch processing, component generation procurement, assembly testing and supply chain support and other in-depth manufacturing services. Help customers steadily move toward the market, promote the continuous innovation of the electronic technology industry and upgrade the development of manufacturing services.
Quality Management
| No produced defects Quality Principle | No defects parts in,No defects flow outFollow TS process |
| Quality target | 98% after oven 100% after QC |
| Quality rules | All staff participation； Keep improving; Strive for customer satisfaction |

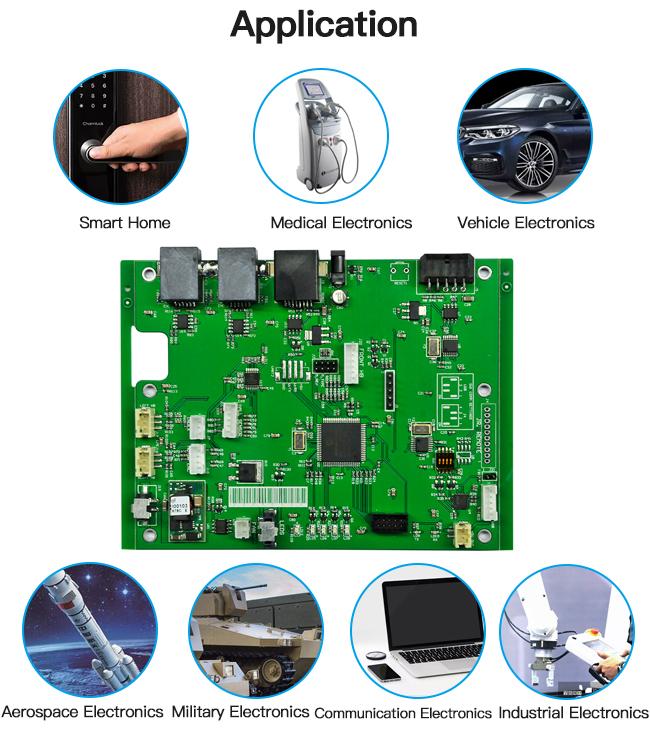

Leadsintec is a turnkey pcb manufacturing and assembly factory indeed, with our own pcb factory separated from pcba company. PCBA service cover automotive,medical, industry, smart home, aviation, military, communication etc.
