OEM ODM FR4 Industrial PCB Cable Assembly Light Sensor Motion Cable Assemblies
OEM ODM FR4 Industrial PCB Cable Assembly Light Sensor Motion Cable Assemblies
Pcb Cable OEM ODM Industrial PCB Board Light Sensor Motion Cable Assemblies

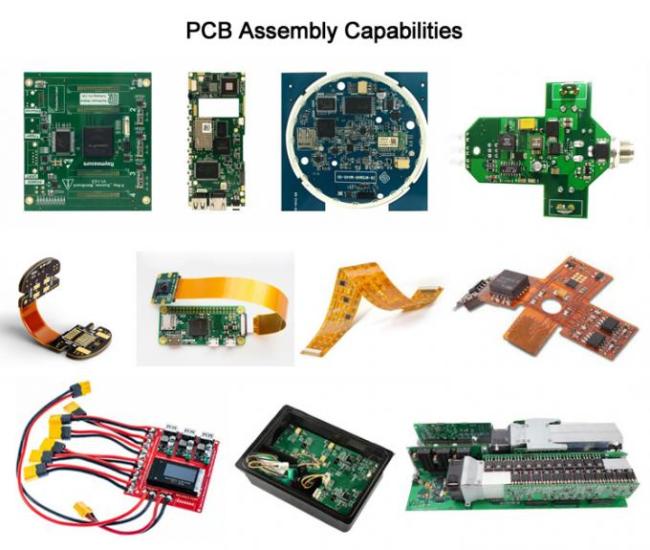

PCBA Capabilities
| Service Category | Supported Capabilities |
| Types of Assembly | THD (Thru-Hole Device) (Automatic Assembly in POE) SMT (Surface-Mount Technology) (Automatic Assembly in POE) SMT & THD mixed (Automatic Assembly in POE) 2 sided SMT and THD assembly (Automatic Assembly in POE) |
| Order quantity | 1 to 50,000 boards |
| Components | Passives parts, smallest size 01005, 0201 Fine pitch to 8 Mils BGA, uBGA, QFN,POP and Leadless chips Connectors and terminals |
| Component Package | Reels Cut tape Tube and tray Loose parts and bulk |
| Board dimensions | Smallest size: 0.2" x 0.2" Largest size: 15" x 20" |
| Board shape | Rectangular Round Slots and Cut outs Complex and Irregular |
| Board type |
Rigid PCB Flexible PCB |
| Assembly process | Leaded process Lead-Free (RoHS) |
| Design file format | Emails, Phone calls quotation for PCB and assembly |
| Electrical testing | X-ray Inspection AOI (Automated Optical Inspection) Functional testing |
| Oven profile | Standard Custom |
| Turnaround time | 1-5 days for only PCB assembly (quick turn 1day) 10-16 days for turnkey PCB assembly (including components) |

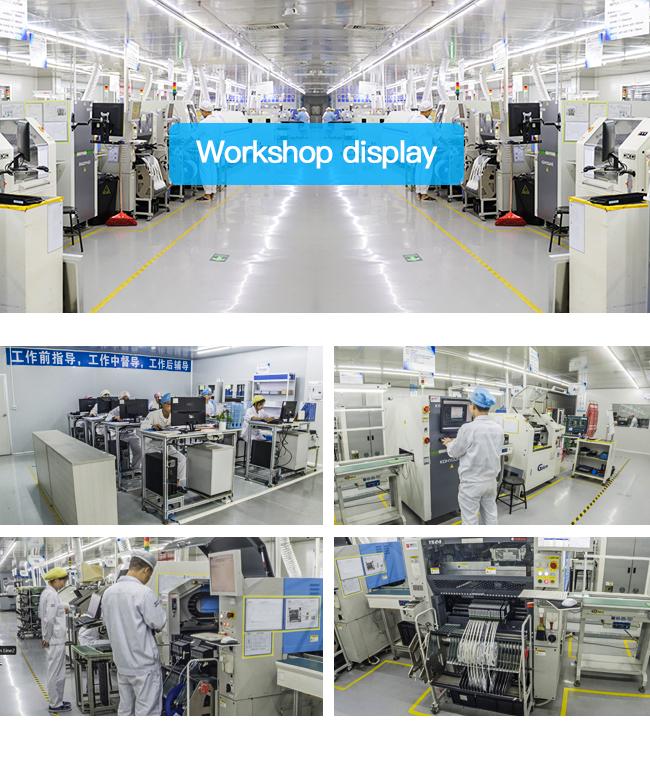

SMT PCB Service Features
●New automatic SMT solder paste printing machine
●Advanced high speed assembly machine
●SMT PCB stencil service can be provide
●Strictly control the soldering quality
●Each SMT line is equipped with automatic AOI detection machine
●X-Ray machine plays a key role in BGA inspection
●Inspection report can be exported for you reference
SMT PCB Solutions
Leadsintec offers full Turn-Key and partial Turn-Key Circuit Board Assembly Services. We focus on both rigid PCB Assembly and flex PCB assembly. Our quality driven PCB assembly process ensures that your finished project is of the highest quality.
In Full Turn-Key PCB, we handle everything including making circuit boards, ordering components, quality inspection and final assembly. In partial Turn-Key, you can order the PCBs and partial components.
Leadsintec PCBA Application
Leadsintec is high-end pcb assembly factory, we have ISO9001,ISO14001, ISO13485, IATF16949 Certification. Mainly service for customers involved in automotive electronic pcba, medical device, , smart home pcba, industrial pcba, communication pcba, military & aviation pcba.
FAQ:
1, What service do you have?
We provide turnkey solution including PCB fabrication, SMT, plastic injection & metal,final assembly, testing and other value-added service.
2, What is needed for PCB & PCBA quotation?
For PCB: Quantity, Gerber file and technic requirements(material,size, surface finish treatment, copper thickness,board thickness).
For PCBA: PCB information, BOM,Testing documents.
3, How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.
4, What are the main products of your PCB/PCBA services?
Automotive, Medical, Industry Control, IOT, Smart Home, Military, Aerospace.
5, What is your minimum order quantity (MOQ)?
Our MOQ is 1 PCS, sample and mass production all can support.
6, Are you factory?
Our factory is located in 1st Building, No. 18-1, Yuquan East Road, Yulv Village, Gongming Street, Guangming New District shenzhen, china.
If you have any PCB or PCBA projects, please share your pcba file(Gerber+BOM), we give you a good quote.
