Housing Industrial Robots Drones PCB Custom Cable Assembly 1OZ 2OZ 3OZ
Housing Industrial Robots Drones PCB Custom Cable Assembly 1OZ 2OZ 3OZ
OEM Housing Industrial Robots Drones PCB Board Electrical connector trailer motorcycle Cable Assembly
Product Description:
| Article | Description | Capability | |
| Sercive | PCB and SMT assembly with one-stop service | ||
| Material | Laminate materials | FR4, high TG FR4, high frequency, alum, FPC | |
| Board cutting | Number of layers | 1-48 | |
|
Min.thickness for inner layers (Cu thickness are excluded) |
0.003”(0.07mm) | ||
| Board thickness | Standard | (0.1-4mm±10%) | |
| Min. | Single/Double:0.008±0.004” | ||
| 4layer:0.01±0.008” | |||
| 8layer:0.01±0.008” | |||
| Bow and twist | 7/1000 | ||
| Copper weight | Outer Cu weight | 0.5-4 0z | |
| Inner Cu weight | 0.5-3 0z | ||
| Drilling | Min size | 0.0078”(0.2mm) | |
| Drill deviation | ±0.002″(0.05mm) | ||
| PTH hole tolerance | ±0.002″(0.005mm) | ||
| NPTH hole tolerance | ±0.002″(0.005mm) | ||
|
Solder mask
|
Color | Green,white,black,red,blue… | |
| Min solder mask clearanace | 0.003″(0.07mm) | ||
| Thickness | (0.012*0.017mm) | ||
| Silkscreen | Color | white,black,yellow,blue… | |
| Min size | 0.006″(0.15mm) | ||
| E-test | Function Test | 100% Functional test | |
| PCBA Testing | X-ray,AOI Test,Functional test | ||
one-stop service electronic manufacxturer service
| Component sourcing | Yes | ||
| Certificate | IATF16949, ISO13485, ISO9001 | ||
| Delivery time: | PCB | 3-12days | |
| PCBA | 8-20days | ||
| Tolerance of pcb | ±5% | ||
| Max size of finish board | 450*450mm | ||
| MOQ | NO MOQ (1pcs) | ||
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | ||
| PCB outline | Square,circle,irregular(with jigs) | ||
| package | QFN,BGA,SSOP,PLCC,LGA | ||
| Sub-assembly | Plastic,metal,screen | ||

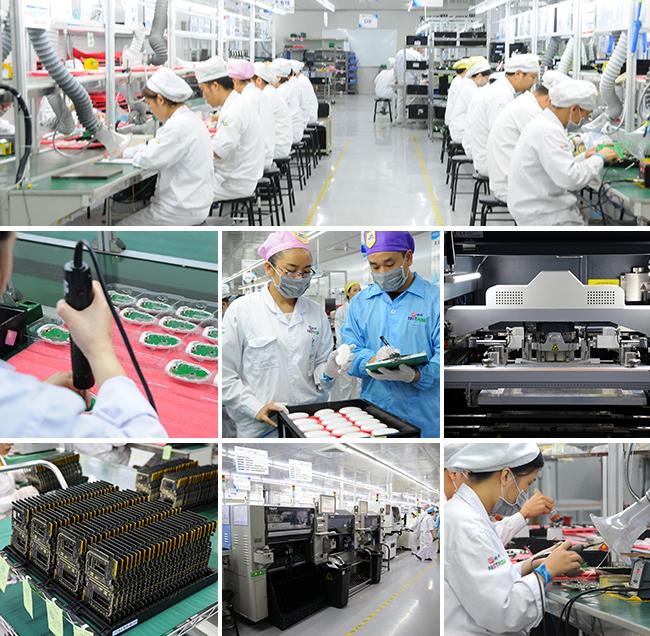

Leadsintec is the professional pcb factory over 20 years, who has been audited by gemany bosch. With ISO & IATF certificate, 5000㎡+ dust free and ESD protection smt workshop, Leadsintec gets the favor of customers among medical, industrial control, military, smart home, power communication,aerospace, automotive .
Leadsintec is well-known for precise and accutate pcb fabrication and assembly capacibility among pcba industry with 70000 points/ h placement speed, can mount 01005 & 0201 devices, identify 0.2MM connectors and 0.25 pitch BGA , we can better satisfy high density, fine pith pcb assembly requirements.
Leadsintec is the best one-stop pcba assembly supplier in china, it’s our continuous pursuit to better serve and creat more values for customers domestic and abroad.
