R140W-9S Excavator Electrical Parts , Hyundai Excavator MCU 21Q4-32211
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
1-7Work Days
Product Description

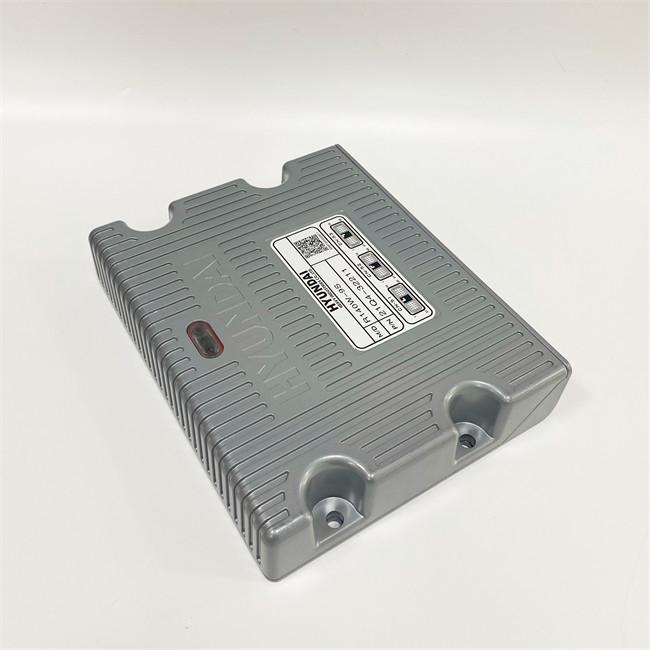

R140W-9S Series Wheel Excavator MCU / Controller 21Q4-32211 Hyundai Parts
Specifiion
| Part Number | 21Q4-32211 |
| Part Name | MCU / Controller |
| Appliion | 9-SERIES Wheel Excavator |
| Size | Standard |
| Colour | Silver |
| Quality | 100% Tested |
| Condition | Brand New |
| Availability | In Stock |
| Certifiion | ISO9001 |
| Origin | China |
Related Parts
| Pos. | Part Number | Qty | Parts name |
| 1 | 21Q4-17400 | [1] | HARNESS-FRAME |
| 2 | 21Q4-32211 | [1] | MCU(MACHINE CNTL UNIT) |
| 4 | 21Q6-14101 | [1] | PLATE |
| 5 | 21Q6-16310 | [1] | PLATE-MCU |
| 6 | 21Q6-20440 | [1] | RELAY BOARD ASSY |
| 6-1. | 21E4-0011 | [10] | RELAY ASSY |
| 6-1. | 22FV-24110 | [10] | RELAY |
| 6-2. | 21Q6-20430 | [1] | BOARD WA-RELAY |
| 6-3. | S132-061046 | [10] | SCREW-W/WASHER |
| 6-4. | 21Q6-11160 | [1] | HARNESS-RELAY BOARD |
| 6-4. | 21Q6-11161 | [1] | HARNESS-RELAY BOARD |
| 8 | 21Q4-60400 | [2] | BAR-BATTERY |
| 9 | 21Q4-60300 | [1] | COVER ASSY-BATTERY |
| 13 | 21Q4-10360 | [1] | LAMP-HEAD&POSITION,RH |
| 14 | 21Q4-10350 | [1] | LAMP-HEAD&POSITION,LH |
| 15 | 21Q4-01161 | [1] | BREAKER-CIRCUIT ,30A |
| 16 | 21M9-01171 | [1] | CIRCUIT-BREAKER,60A |
| 18 | 21N5-10061 | [1] | HORN-HIGH |
| 19 | 21N5-10051 | [1] | HORN-LOW |
| 21 | 21E2-60031 | [1] | CABLE(BATT RY-STARTER) |
| 21 | 21N6-21200 | [1] | CABLE(BATT RY-STARTER) |
| 22 | 21EA-60490 | [1] | CABLE(BATT-BATT RY) |
| 22 | 21E2-60140 | [1] | CABLE(BATT-BATT RY) |
| 23 | 21N4-01400 | [1] | CABLE(BATT-BATT) |
| 24 | 21EA-60620 | [1] | CABLE(BATT-EARTH) |
| 24 | 21EM-11000 | [1] | CABLE(BATT-EARTH) |
| 26 | 21N4-20550 | [1] | HOSE-OUTLET |
| 27 | 21E6-20270 | [2] | BATTERY |
| 31 | 21QA-70010 | [1] | RELAY-BATTERY |
| 31 | 21QA-70011 | [1] | RELAY-BATTERY |
| 31 | 21E5-0003 | [1] | RELAY-BATTERY |
| 31 | 21QA-70011 | [1] | RELAY-BATTERY |
| 32 | 21QB-20080 | [1] | PLATE-CLAMP |
| 33 | 25D1-10640 | [2] | CLIP ASSY |
| 34 | 31L7-10190 | [10] | CLAMP-TUBE |
| 35 | 31L7-10200 | [5] | CLAMP-TUBE |
| 36 | 31L7-10210 | [2] | CLAMP-TUBE INS |
| 37 | 31L7-10230 | [2] | CLAMP-TUBE |
| 38 | 31L7-10340 | [4] | CLAMP-TUBE INS |
| 39 | S017-102506 | [2] | BOLT-HEX |

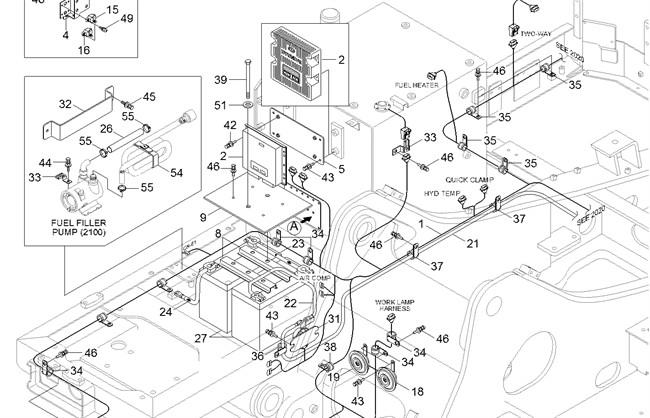

Parts Drawing
We Can Also Provide The Following Products
| Undercarriage Spare Parts | Track shoe, Track link, Bolt, Track roller, Carrier Roller, Sprocket, Front idler, idler Cushion |
| Engine spare parts | Cylinder head, Cylinder block, Turbocharger, Piston, Piston ring, Metal, Crankshaft, Oil pump, Fuel injection pump, Water pump, Alternator, Starting motor |
| Hydraulic spare parts | Main Valve, Main Pump, Solenoid Valve, Boom/Arm/ Bucket Cylinder, Final Drive, Travel Motor, Swing Machinery, Swing Motor |
| Operator’s Cab spare parts | Cab Ass’y, Monitor, Controller, Engine Controller, Wiring Harness, Seat, Air Conditioner, Air Compressor |
| Work equipment | Boom, Arm, Bucket, Bucket teeth, Bucket link, H link |
| Cooling system | Radiator, Oil Cooler, Fuel Cooler, Condenser, Fan |
