Product Description
H3 Smart HMI Motherboard Quad-core Mali-T764 4-pole 3.5mm jack Headphone

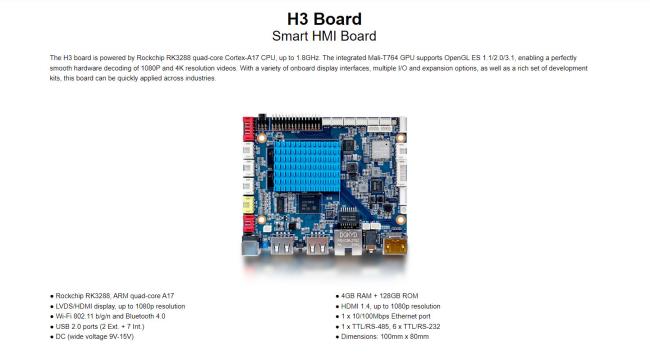

H3 Smart HMI Motherboard Description:
H-3399 is based on Rockchip RK3399 processor. It has powerful performance, rich interfaces and powerful computing performance. It can be easily applied to scenarios such as welcome robots, face detection recognition and industrial control equipment.

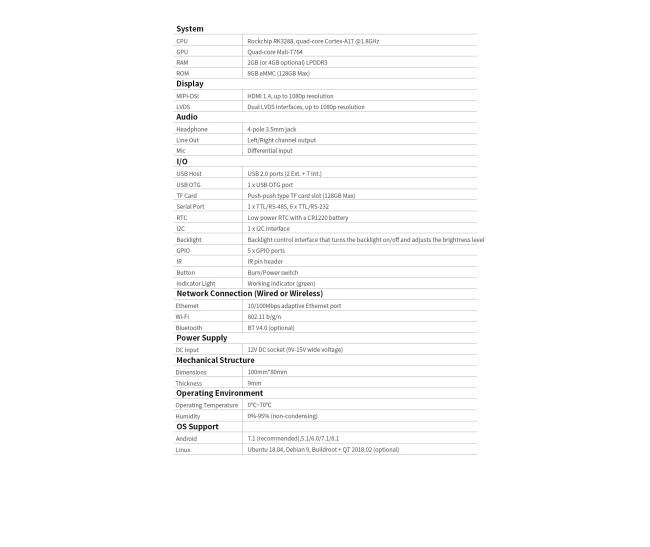

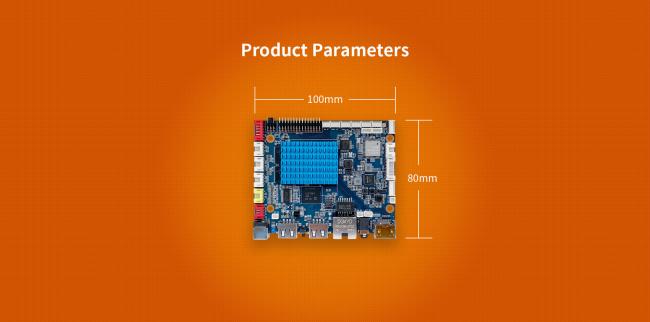

H3 Smart HMI Motherboard Parameters:
|
Keyword: |
Smart HMI Motherboard |
CPU: |
Rockchip RK3288,quad-core Cortex-A17 @1.8GHz |
|---|---|---|---|
| GPU: | Quad-core Mali-T764 | MIPI-DSI: | HDMI 1.4, up to 1080p resolution |
|
RAM: |
2GB (or 4GB optional) LPDDR3 |
ROM: |
8GB eMMC (128GB Max) |
|

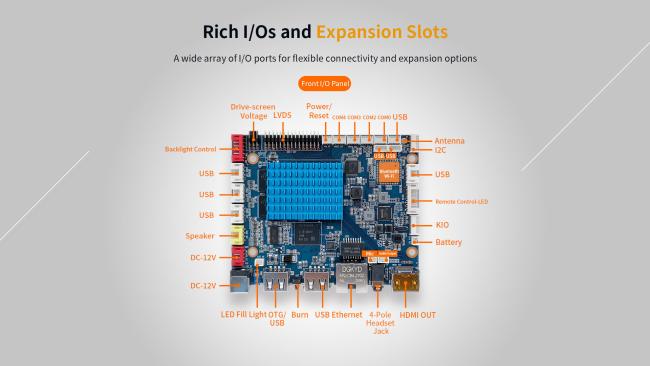

USB Host: |
USB 2.0 ports (2 Ext. +7 Int.) |
Serial Port: |
1xTTL/RS-485,6x TTL/RS-232 |
| Headphone: | 4-pole 3.5mm jack | TF Card: | Push-push type TF card slot(128GB Max) |
| GPIO: | 5 x GPIO ports | MIC Input: | Differential MIC input |
| Indicator Light: | Working indicator (green) | USB OTG: | 1 x USB OTG port |
|
Ethernet: |
10/100Mbps adaptive Ethernet port |
Android: |
7.1 (recommended),5.1/ 6.0/ 7.1/ 8.1 |
