Mono Perc Longi Bifacial Solar Panels , 535W Double Sided Solar Panels
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8working days
Brand:
LEEHO
Product Description
Longi Brand B Grade Bicfacial 535w Stock Mono Perc

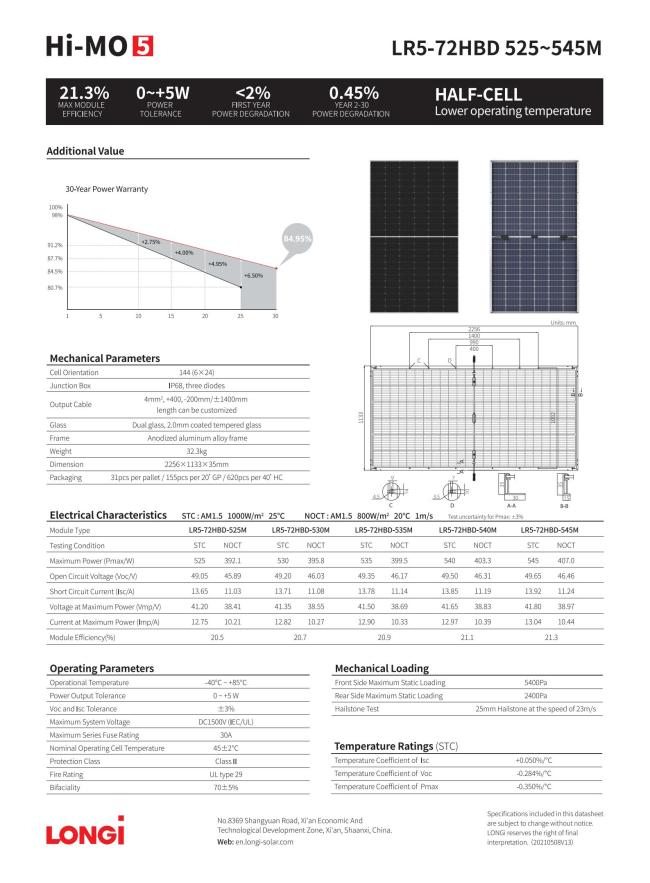

| Cett Orientation | 144(6X24) |
| Junction Box | IP68, three diodes |
| Output Cable |
4mm2, +400, -200m m/± 1400m length can be customized |
| Glass | Dual glass, 2.0mm coated tempered glass |
| Frame | Anodized aluminum a Hoy frame |
| Weight | 32.3kg |
| Dimension | 2256 X1133 X35m m |
| Packaging | 31pcs per pallet / 155pcs per 20' GP / 620pcs per 40' HC |
| Module Type | LR5-72HBD-525M | LR5-72HBD-530M | LR5-72HBD-535M | LR5-72HBD-540M | LR5-72HBD-545M | |||||
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power (Pmax/W) | 525 | 392.1 | 530 | 395.8 | 535 | 399.5 | 540 | 403.3 | 545 | 407 |
| Open Circuit Voltage (Voc/V) | 49.05 | 45.89 | 49.2 | 46.03 | 49.35 | 46.17 | 49.5 | 46.31 | 49,65 | 46.46 |
| Short Circuit Current (Isc/A) | 13.65 | 11.03 | 13.71 | 11.08 | 13.78 | 11.14 | 13.85 | 11.19 | 13.92 | 11.24 |
| Voltage at Maximum Power (Vmp/V) | 41.2 | 38.41 | 41.35 | 38.55 | 41.5 | 38.69 | 41.65 | 38.83 | 41.8 | 38.97 |
| Current at Maximum Power (Imp/A) | 12.75 | 10.21 | 12.82 | 10.27 | 12.9 | 10.33 | 12.97 | 10.39 | 13.04 | 10.44 |
| Module Efficiency (%) | 20.5 | 20.7 | 20.9 | 21.1 | 21.3 | |||||
| Operational Temperature | -40°C~+85°C |
| Power Output Tolerance | 0-+5W |
| Vocand Isc Tolerance | ±3% |
| Maximum System Voltage | DC1500V(IEC/UL) |
| Maximum Series Fuse Rating | 30A |
| Nominat Operating Cell Temperature | 45±2°C |
| Protection Class | Class II |
| Fire Rating | UL type 29 |
| Bifacia [ity | 70±5% |
| Front Side Maximum Static Loading | 5400Pa |
| Rear Side Maximum Static Loading | 2400Pa |
| Hailstone Test | 25mm Hailstone at the speed of23m/s |
Features:
- READY STOCK
- Higher cost performance.
- TOP 10 BRAND
- Advanced module technology delivers superior module efficience
- M10 Gallium-doped Wafer
- Globally validated bifacial energy yielD
- High module quality ensures long-term reliability
