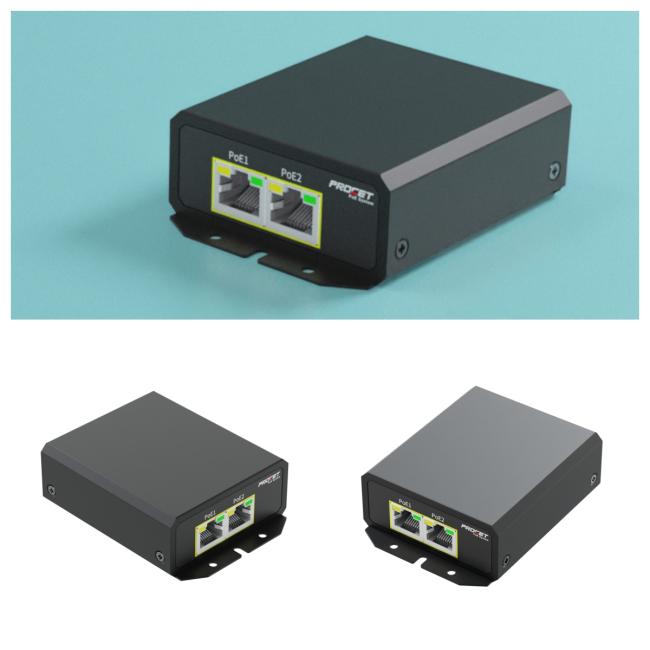

44- 57Vdc PoE Network Extender For Point To Multipoint PoE Application
44- 57Vdc PoE network extender designed especially for point to multipoint PoE application
Product Review:
The power over ethernet wifi extender,which is 6KV surge protection PoE extender is a reliable, cost-effective
solution for extending your PoE network. Whether you need to connect PoE devices in a remote location or
expand your existing network infrastructure, PoE Network extender can help you achieve your goals.
Product Specifications:
| Operating Environment | Working Temperature:-40℃to 65℃ | |
| Operating Humidity: 20% to 80%, non-condensation | ||
| Operating Altitude: Up to 2000 meters | ||
| Storage Humidity: 10%-90%,non-condensation | ||
| Storage Temperature: -20℃ to 70℃ | ||
| PoE Surge Protection | Protected line:1,2,3,4,5,6,7,8 | |
| Common mode surge protection(10/700us): 6KV | ||
| Differential mode surge protection (10/700us): 1.5KV | ||
| Network Protocol | IEEE802.3/IEEE802.3u/IEEE802.3ab | |
| Media Support | 10 / 100 / 1000BASE-TXCat5 or above UTP(≤328 feets) | |
| Regulatory Compliance | CE FCC | |
| IP Rated | IP40 | |
| Dimensions | PoE network extender Size: 98.5mm X 70.27mm X 29.7mm | |
| PoE network extender Weight:207.8g(7.33oz) | ||
| LED | Yellow Light | Solid light:Connected |
| Light off: Not connected or connection failed | ||
| Flashinglight: Data transmitting | ||
| Green Light | Light off:Not powered or no connection to device | |
| Solid light:Power on | ||

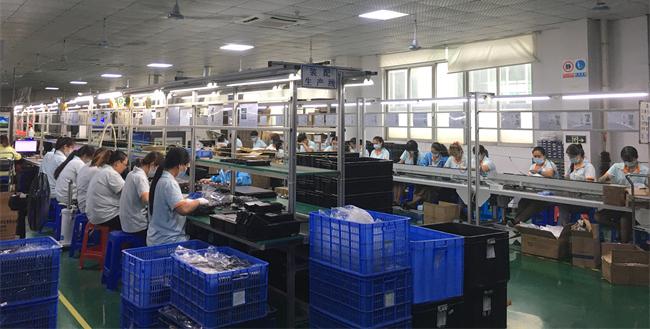

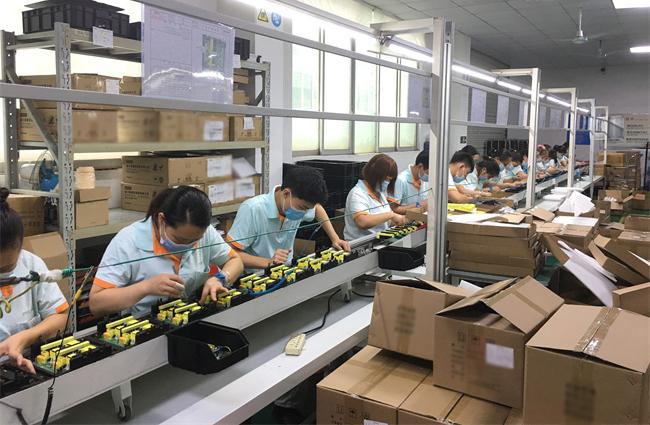

Company Introduction:
PROCET(Creative Lianjie Network Technology Co.,Ltd) maked in 2000. PROCET mainly R&D on the PoE
(Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE.-40℃ to +65℃
PoE, PoE splitter, PoE extender and PoE network extender. We registered PROCET Technology Co., Ltd
in HONGKONG in 2019.PROCET PoE injector has been widely favored by customers since its development.
Certification:
Shipping and Payment:
| MOQ | 1PC |
| PORT | SHENZHEN |
| PAYMENT TERMS | T/T,WESTERN UNION/PAYPAL |
| PRODUCING CAPACITY | 500,00 Per/Month POE Module and POE Splitter,10000 Per/Month PoE network extender |
| LEADING TIME | SMALL quantities in stock.Large quantities 20-30 days |
| PACKAGE | Carton packaging |
FAQ:
1. How do I install the PT-PEX02GB PoE network extender?
The PT-PEX02GB PoE network extender is easy to install. Simply connect the PoE input to your injector and connect the
PoE output to your PoE device.
2. What is the PT-PEX02GB PoE network extender?
The PT-PEX02GB PoE network extender is a device that allows you to extend the reach of a Power over Ethernet (PoE)
connection by up to 100 meters.
3. Is the PT-PEX02GB PoE extender weatherproof?
No, the PT-PEX02GB PoE network extender is not weatherproof. It should be installed in a dry, indoor location.
4.What is the largest spacing I can extend a PoE connection with the PT-PEX02GB extender?
The PT-PEX02GB PoE network extender can extend a PoE connection by up to 100 meters (328 feet).
5.What types of PoE does the PT-PEX02GB PoE network extender support?
The PT-PEX02GB supports both 802.3af and 802.3at PoE standards, which means it can work with a wide extent of PoE devices.
