PROCET PoE spitter adapter Industrial IP40 802.3bt PoE + Injector
PROCET PoE spitter adapter Industrial IP40 802.3bt PoE + Injector
Product Review:
PoE spitter adapter Cable Length: PROCET PoE spitter adapter length of the Ethernet cable between the
PoE injector (PSE) and the PoE spitter adapter 802.3bt (PD) can vary depending on the specific PoE standard
and the capabilities of the splitter.
Product Specifications:
| Parameter | Description |
| Key Features | Industrial-rated PoE Splitter |
| 802.3af/at/PoE+ standard | |
| DlP switch for 12V and 24V adjustable output voltage | |
| Working Temperature:-40℃ to 65℃ | |
| Part Number | PT-PD208GT PoE spitter adapter |
| Standard | IEEE802.3 10Base-T Ethernet |
| IEEE802.3u 100Base-Tx Fast Ethernet | |
| IEEE802.3ab 1000Base-T Gigabit | |
| Full compliant with IEEE802.3af/at/PoE+ | |
| RoHS & WEEE Compliance | |
| Ports condition | Interface:12/24 VDC*1 Grounding*1 PoE IN*1 LAN*1 |
| Regulatory Compliance | IEEE802.3bz |
| RoHS Compliance | |
| WEEE Compliance | |
| Interface | 50-56 VDC*2 Grounding*1 PoE*1 LAN*1 |
| Output | Pin Assignment and Polarity: |
| Output:12Vdc 2.15A Max 24Vdc 1.05A Max | |
| Data Speed:10/100 / 1000Mbps |
Company Introduction:

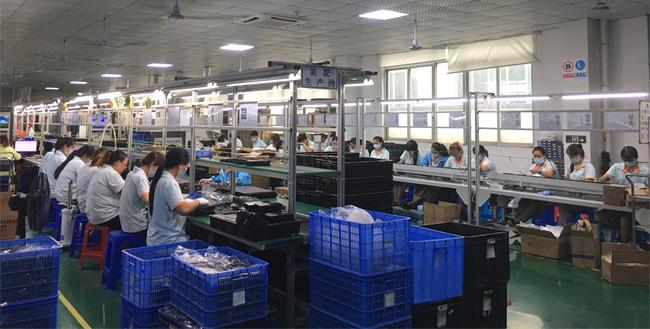

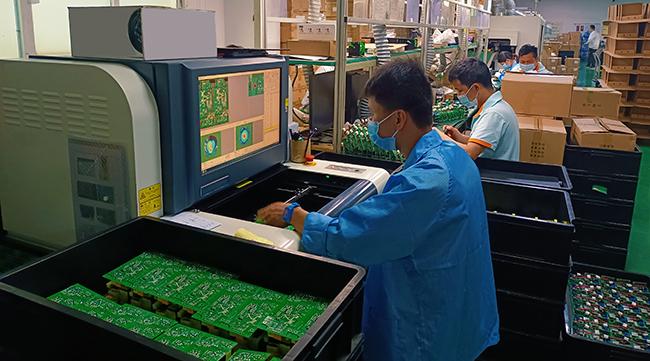

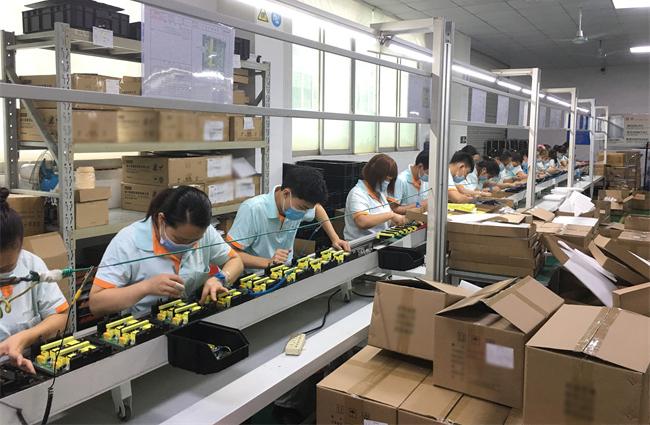

PROCET(Creative Lianjie Network Technology Co.,Ltd) maked in 2000. PROCET mainly R&D on the PoE
(Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE.-40℃ to +65℃
PoE,PoE spitter adapter, PoE extender and PoE+ extender. We registered PROCET Technology Co., Ltd in
HONGKONG in 2019.PROCET PoE injector has been widely favored by consumer since its development.
Certification:
Shipping and Payment:
| MOQ | 1PC |
| PORT | Guangdong |
| PAYMENT TERMS | T/T,WESTERN UNION/PAYPAL |
| Manufacturability | 500,00 Per/Month POE Module and POE Splitter,10000 Per/Month PoE spitter adapter |
| LEADING TIME | SMALL quantities in stock.Large quantities 20-30 days |
| PACKAGE | Carton packaging |
FAQ:
1. What is a PT-PD208GT PoE spitter adapter?
The PT-PD208GT PoE splitter is a device that separates power and data signals from a PoE source,
allowing you to power non-PoE devices using the PoE infrastructure.
2.What PoE standards does the PT-PD208GT PoE spitter adapter out support?
The PT-PD208GT endorsement the IEEE 802.3at standards for PoE.
3. What is the maximum power output of the PT-PD208GT PoE spitter adapter?
The PT-PD208GT can deliver a maximum power output of 12V, 9V, or 5V, depending on the device's requirements.
4.What does the PT-PD208GT PoE spitter adapter do with the data signal?
The PT-PD208GT splitter separates the data signal from the PoE input and delivers it to the connected device.
5.What are the LED indicators on the PT-PD208GT PoE spitter adapter for?
The LED indicators on the PT-PD208GT provide visual feedback on the device's status, including
Power On, PoE Detection, and Data Link.
