IEEE802.3AT 30W Single Port Outdoor PoE Injectors For External Solar Power Supply
IEEE802.3AT 30W Single Port Outdoor PoE+ industrial design, plug and play,For external solar power supply
Product Features:

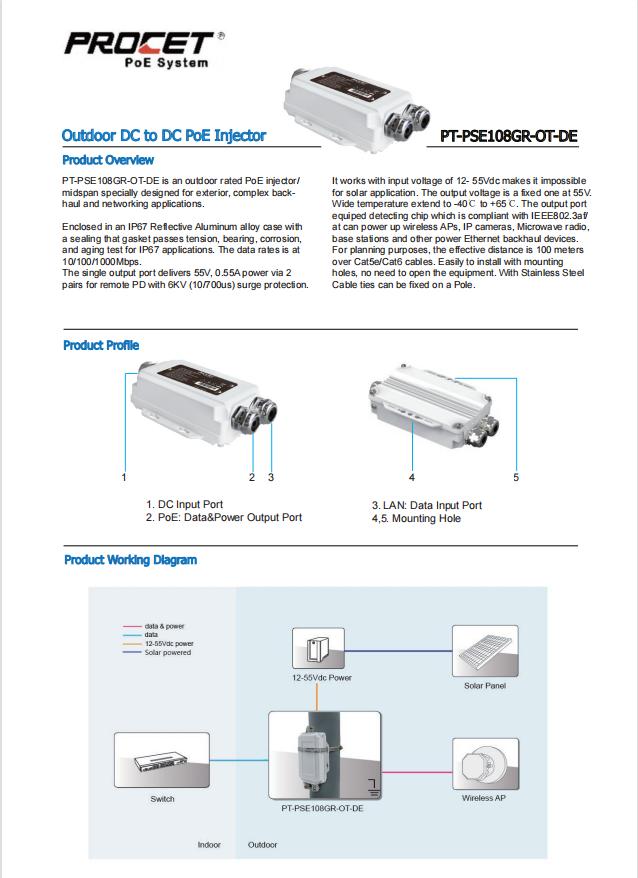

PT-PSE108GR-OT-DE is an outdoor rated PoE injector/midspan specially designed for exterior, complex back_x0002_haul and networking applications. Enclosed in an IP67 Reflective Aluminum alloy case with a sealing that gasket passes tension, bearing, corrosion,and aging test for IP67 applications
After negotiating 802.3at standard PD, the single PoE output port delivers 55Vdc, 0.55A up to 30W power with 6KV surge protection for remote PDs over 2 Pair at 10/100/1000Mbps data rates. It works with a wide input voltage of 12-55Vdc and operates under -40℃ to +65℃. It fully complies with IEEE802.3at and backward compatible to IEEE 802.3af PoE standard, such as IP Cameras, wireless APs, Microwave radio, IoT application and other PoE+ power PoE devices.
For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. Easily to install with mounting holes, no need to open the equipment. With Stainless Steel Cable ties can be fixed on a Pole.
Introduction:
Procet Outdoor IP67 AT PoE+ Injector, Input 12-55Vdc, Output 55Vdc 550mA, PoE Surge protection 6Kv, Working temperature at -40℃ to 65℃, Gigabit data rates

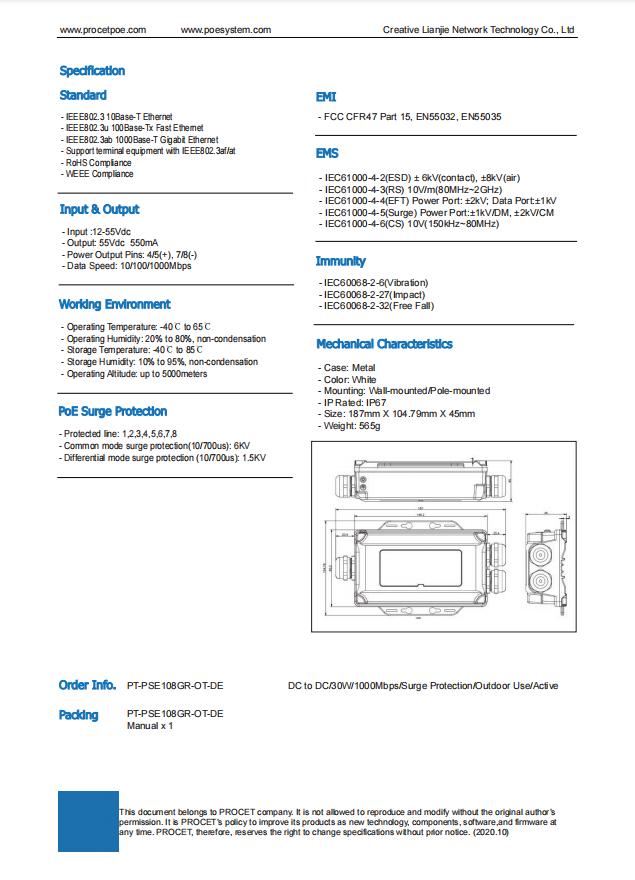

Parameter:
| Part Number: | PT-PSE108GR-OT-DE |
| Regulatory Compliance: | IEEE802.3at, RoHS Compliance , WEEE Compliance |
| Output Pin Assignment And Polarity: | 4/5(+), 7/8(-) |
| User Port Power: | 30W Guaranteen |
| DC Input Current: | 4.0A |
| Operating Humidity: | 20% To 80%, Non-condensation |
| Storage Humidity: | 10% To 95%, Non-condensation |
| Protected Line: | 1,2,3,4,5,6,7,8 |
| Differential Mode Surge Protection (10/700us): | 1.5KV |
| Color: | White |
| Ports Condition: | LAN Input Port*1, AC Input Port*1, PoE Output Port*1 |
| Pass Through Data Rates: | 10/100/1000 Mbps |
| Output Power Voltage: | 55Vdc |
| DC Input Voltage: | 12 To 55Vdc |
| Operating Temperature: | -40℃ To 65℃ |
| Storage Temperature: | -40℃ To 85℃ |
| Operating Altitude: | Up To 5000meters |
| Common Mode Surge Protection(10/700us): | 6KV |
| Case: | Aluminum Alloy |
| Mounting: | Wall-mounted/Pole-mounted |
