PROCET PoE++ 160W Single Port Midspan PoE Injector with 4 Pair PoE with 6Kv surge protection

Main Features :

1. Procet Indoor Active Ultra 160W PoE injector
2. Input 100-240Vac
3. Output 55Vdc 2900mA
4. Surge protection 6Kv
5. Gigabit data rates

Key Features:

Lighting Protection at PoE port
Gigabit data rates
IP20 high-impact metal enclosure
AC power cord with optional US or EU plug or other standard plug
Diagnostic LEDs
High power of 160 Watts
Detecting chip

Product Features​:

PT-PSE109GXR is a single port midspan Injector with 4 Pair PoE up to 160 watts of power at 55 Vdc at 2.9 Amp with 6Kv surge protection.

Designed for the PoE++ powered 160W PoE Powered Devices (PDs), such as wireless APs, base stations, high power cameras, door locks, displays, information kiosks and other high power Ethernet terminals. It is also compatible and safe to use with any IEEE802.3af/at/bt compliant terminals. It supports 10/100/1000Mbps of data rates. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

Enclosed in an IP20 high-impact metal case, designed for indoor use. It works with a wide input voltage of 100-240VAC, 50 or 60 Hz. The effective distance limitation is 100 meters over Cat5e/Cat6 cables.

Introduction:

Procet Indoor Acitve with detecting chip Ultra 160W PoE injector, Input 100-240Vac, Output 55Vdc 2900mA, Surge protection 6Kv, Gigabit data rates

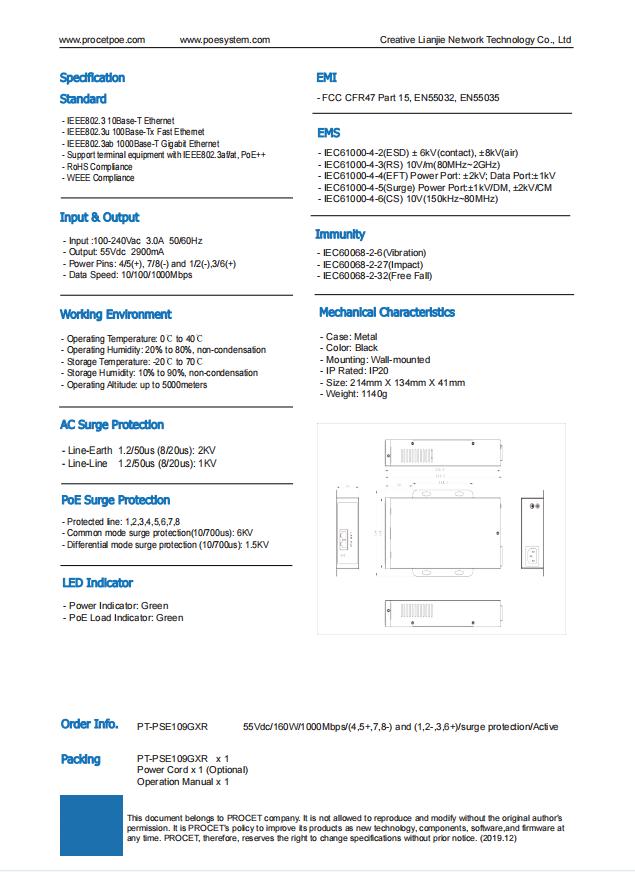

Product Parameter:

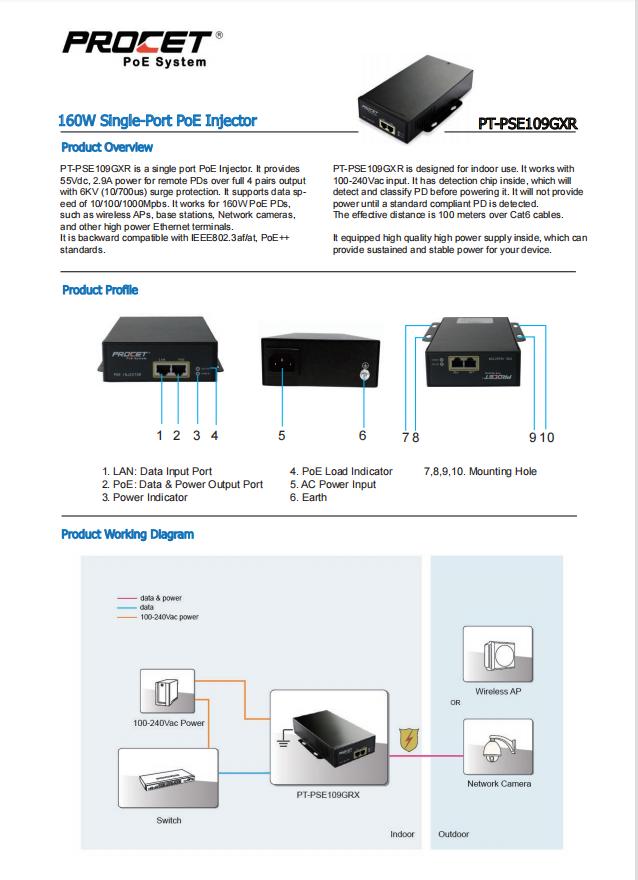

Muanl:

Company Introduction:

PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

Certification:

Ordering:

Order Info.: -PT-PSE109GXR 55Vdc/160W/10/100/1000 Mbps/(4,5+,7,8-) and (3,6+,1,2-)

Packing:

-PT-PSE109GXR x 1
-Power Cord x 1
-Manual x 1

Stock Quantity:-100PCS

Warehouse Location :-Dongguan China

Sample Delivery Time:-Within 24H

Bulk Stock Delivery Time:-Within 48H

Shipping Way:

-DHL,UPS,FedEx,TNT,
-By SEA/AIR
-Customer Nominated Forwarder

Packing Size:

-Qty: 10pcs/carton
-G.W.: 16Kgs
-Volume: 0.06 m³
-Packing: Export Carton
-Pallet size: 110 x 110cm

FAQ:

(1) Lead Time?
Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.

(2) How to buy?
Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.
Your sales consultant will contact you with 24 hr.

(3) OEM/ODM Services?
YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.

Shipping:
