100 Watt 1 Port Indoor PoE Surge Protector For IP Videophones
IEEE802.3af/at/bf Procet 1 port indoor PoE surge protector with 4 Pair PoE up to 100 watts of power.
Froducts Features:
1. PT-PR01GB is a 1 port indoor PoE surge protector with 4 Pair PoE up to 100 watts of power.

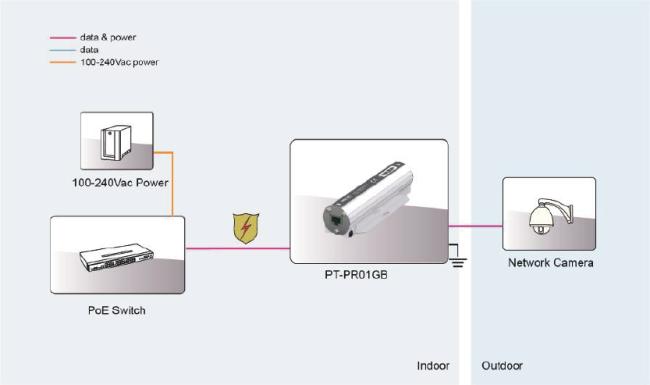

2. Designed for the PoE++ powered 100W(max) PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.
3. Enclosed in an IP40 fire retardant Alumininum alloy case, designed for indoor installation with Wall-mounted. It operates with a wide input voltage of 44-57 VDC. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with Outdoor or Indoor PoE Extender
Procet indoor Wall-mounted IP40 PoE surge protector, Input 44-57Vdc(Max 60Vdc), Output 100W (Max.), Surge protection 10KV, Max Discharge Current: 20KA, Working temperature at -40℃ to 65℃, Gigabit data rates
| Key Features: | Wall-mounted IP40 Rated Aluminum Alloy Shell Provide 10KV Surge Protection And 4 Level Protection For 4 PoE Wires Simultaneously Peak Surge Current Up To 20KA Per PoE Wire Wide Temperature At -40℃ To 65℃ Even Up To 85℃ No Local Power Is Needed. |
| Regulatory Compliance: | IEEE802.3bt RoHS Compliance WEEE Compliance |
| Output: | Pin Assignment And Polarity: 4/5(+), 7/8(-) And 3/6(+),1/2(-) Maximum Operating DC Current :1A For 2 Pairs, 2A For 4 Pairs, User Port Power: 100W (Max.) |
| Working Environment: | Operating Temperature: -40℃ To 65℃ Operating Humidity: 20% To 80%, Non-condensation Storage Temperature: -40℃ To 85℃ Storage Humidity: 10% To 90%, Non-condensation Operating Altitude: Up To 5000meters |
| Part Number: | PT-PR01GB |
| Pass Through Data Rateshrough Data Rates: | 10/100/1000 Mbps |
| Input: | Operating Voltage :44-57Vdc (Max 60Vdc) |
| POE Surge Protection: | Otected Line: 1,2,3,4,5,6,7,8 Common Mode Surge Protection(10/700us): 10KV Differential Mode Surge Protection (10/700us): 6KV |
Order Info.
PT-PR01GB 1 Port PoE Surge Protector/44-57Vdc/10/100/1000 Mbps/Indoor use
Packing
PT-PR01GB x 1
Ground lug Wire x 1: 16AWG/0.5meters
Manual x 1
