30w 55V RJ45 Ports 2.5GbE 5GbE Gigabit Poe Injector For Displays

2.5G/5G data rates poe gigabit poe injector IEEE802.3at standard 30w 55V RJ45 ports

Product Features:

1. PT-PSE104G-30-5 is a single port midspan Injector with 2 Pair PoE up to 30 watts of powerat 55 VDC at 0.55 amp.Designed for the PoE+ powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports not only 10/100/1000Mbps of data rates, but also 2.5GbE/5GbE NBase-T.Fully comply with IEEE802.3at and remains compatible with any IEEE802.3af compliant devices.

2. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with a wall mount bracket.

3. It operates with a wide input voltage of 100-240VAC, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender)

Introdution:

Procet indoor wall-mounted AT PoE injector, Input 100-240Vac, Output 55Vdc 550mA, 2.5G/5G data rates

Product Parameter:

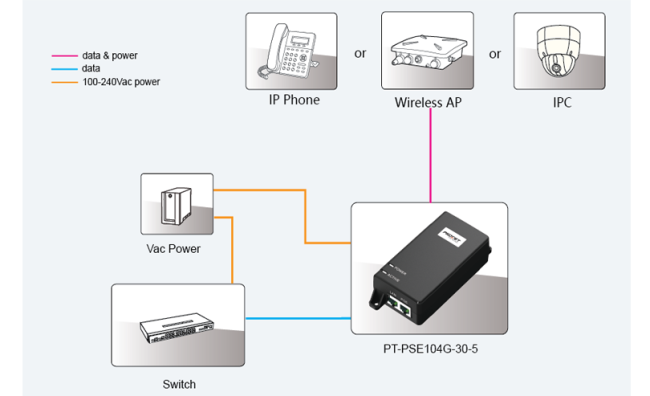

Schematic Diagram:

Ordering:

Order Info.:PT-PSE104G-30-5 55Vdc/0.55A/2.5Gbps/5Gbps/(4,5+,7,8-) /Active

Packing:PT-PSE104G-30-5

Power Cord x 1 (Optional)

Manual x 1

Stock Quantity:200PCS

Warehouse Location:Dongguan China

Sample Delivery Time:Within 24H

Bulk Stock Delivery Time:Within 48H

Shipping Way:DHL,UPS,FedEx,TNT,By SEA/AIR,Customer Nominated Forwarder

Packing Size:Qty: 20pcs/carton

G.W.: 16Kgs

Volume: 0.06 m³

Packing: Export Carton

Pallet size: 110 x 110cm

FAQ:

(1)Lead Time?

Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.

(2)How to buy?

Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.
Your sales consultant will contact you with 24 hr.

(3)OEM/ODM Services?

YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.

Company Introduction:

PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

Certification:

Why Choose Us:

Operating since 2000
PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

R&D Engineer Team
PROCET's engineers used PoE on 2002, and then mainly focus on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE on the end of 2003.
Our PoE engineers have experience more than 15 years by now. They started to R&D the surge on PoE using, and now they have great contribution on our outdoor PoE series.

Production quality assurance
We keeped our stable production workers, four QC with at least 4 years experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.

OEM&ODM serives
We do OEM serives. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM serives too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.

Shipping:
