60W Aluminium Alloy PoE Surge Protectors 44Vdc To 57Vdc

IEEE802.3af/at/bt Indoor Wall-mounted PoE Surge Protector Output 60W For PoE wires

Product features:

1. PT-PR01G is a single-port PoE surge protector designed for exterior complex backhaul and networking applications with an IP 40 rated Aluminum alloy shell. It supports 8 lines network signals and provides surge protection for PoE wires. 10KV surge protection and four Level protection for SPD technology. Peak Surge Current up to 20KA. It supports10/100/1000Mbps of data rates. Ideal for 60W(max) PoE wires and well protects your devices against surge damage.

2. PT-PR01G operates from -40℃ to +65℃ and works with voltage of 44-57Vdc. PoE In port should always be connected to device which you want it to be protected.

3. Both RJ45 ports connect to network over Cat5e/Cat6 cables which is very conveniently and tightly. It can be easily installed with 2 mounting holes.

Introduction:

Procet indoor Wall-mounted IP40 PoE surge protector, Input 44-57Vdc, Output 60W (Max.), Surge protection 10KV, Max Discharge Current: 20KA, Working temperature at -40℃ to 65℃, Gigabit data rates

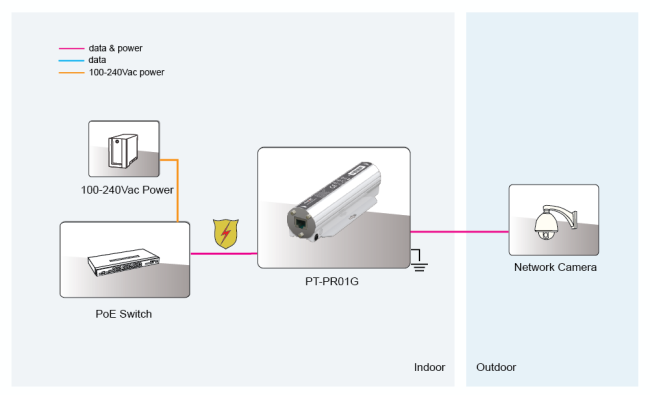

Schematic Diagram:

Company Introduction:
PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

Certification:

Why Choose Us:

Operating since 2000
PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

R&D Engineer Team
PROCET's engineers used PoE on 2002, and then mainly focus on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE on the end of 2003.
Our PoE engineers have experience more than 15 years by now. They started to R&D the surge on PoE using, and now they have great contribution on our outdoor PoE series.

Production quality assurance
We keeped our stable production workers, four QC with at least 4 years experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.

OEM&ODM serives
We do OEM serives. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM serives too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.

Ordering:

Order info.: PT-PR01G 1 Port PoE Surge Protector/44-57Vdc/1000Mbps/10KV Surge Protection/Indoor use

Packing: PT-PR01G
               Ground lug Wire: 16AWG
               Manual x 1

Stock Quantity: 100PCS

Warehouse Location: Dongguan China

Sample Delivery Time: Within 24H

Bulk Stock Delivery Time: DHL,UPS,FedEx,TNT,By SEA/AIR,Customer Nominated Forwarder

Packing Size:
Qty:20pcs/carton
G.W.:16Kgs
Volume:0.06 m³
Packing: Export Carton
Pallet size:110 x 110cm

FAQ:

(1) Lead Time?

Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.

(2) How to buy?

Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.
Your sales consultant will contact you with 24 hr.

(3) OEM/ODM Services?

YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.
