IEEE802.3bt 2 Port 95W PoE Surge Protectors For IP Camera
IEEE802.3bt 2 Port Indoor PoE Surge Protector With 4 Pair PoE Up To 95W Of Power For IP Camera
Product features:
1. PT-PR02G is a 2 port indoor PoE surge protector with 4 Pair PoE up to 95 watts of power.
2. Designed for the PoE++ powered 95W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.
3. Enclosed in an IP67 fire retardant metal case, designed for indoor installation with Wall-mounted. It operates with a wide input voltage of 44-57 VDC. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT (Outdoor or Indoor PoE Extender).
Introduction:
Procet Indoor Wall-mounted AF/AT/BT PoE surge protector, Input 44-57Vdc, Output 95W (Max.), Surge protection 10Kv, Working temperature at -40℃ to 65℃.
Parameters:
| Type | PT-PR02G | |
| Ports condition | PoE Port*4 | |
| Regulatory Compliance | IEEE802.3bt RoHS Compliance WEEE Compliance |
|
| Output |
Pin Assignment and Polarity: 4/5(+), 7/8(-) and 3/6(+),1/2(-) |
|
| Input | Operating Voltage :44-57Vdc (Max 60Vdc) | |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 10KV Differential mode surge protection (10/700us): 6KV |
|
| Size | 145mmX 86.4mmX 26mm | |
| Weight | 260g(9.17oz) | |

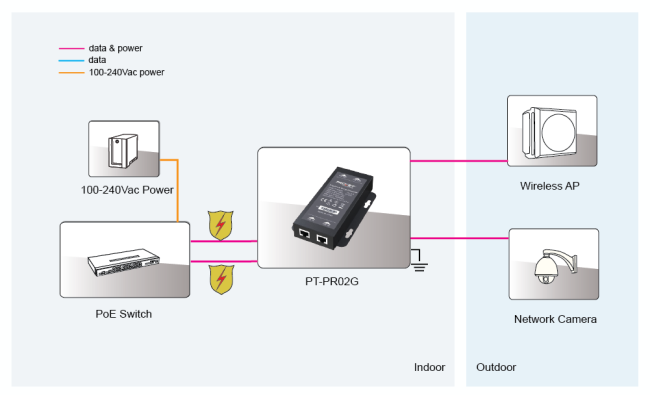

Schematic Diagram:
Company Introduction:
PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.
Certification:
Why Choose Us:
Operating since 2000
PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.
R&D Engineer Team
PROCET's engineers used PoE on 2002, and then mainly focus on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE on the end of 2003.
Our PoE engineers have experience more than 15 years by now. They started to R&D the surge on PoE using, and now they have great contribution on our outdoor PoE series.
Production quality assurance
We keeped our stable production workers, four QC with at least 4 years experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.
OEM&ODM serives
We do OEM serives. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM serives too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.
Ordering:
Order info.: PT-PR02G 2 Port PoE Surge Protector/44-57Vdc/1000Mbps/10KV Surge Protection/Indoor use
Packing: PT-PR02G
Ground lug Wire: 16AWG
Manual x 1
FAQ:
(1) Lead Time?
Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.
(2) How to buy?
Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.
Your sales consultant will contact you with 24 hr.
(3) OEM/ODM Services?
YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.
