1 Port Managed Gigabit Fiber POE Injector 60W Power Supply DC Input
Built-in 60W Power Supply DC Input 1-Port Managed Gigabit Fiber POE Injector
Product features:
Introduction:
| Product Name | Built-in 60W Power Supply DC Input 1-Port Managed Gigabit Fiber POE Injector |
| Data Speed | 10/100/1000Mbps |
| Power Pins | 4/5(+), 7/8(-) & 3/6(+),1/2(-) |
| PoE Surge Protection |
Protected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 4KV
Differential mode surge protection (10/700us): 1.5KV
|
| Mounting | DIN-rail |
| IP Rated | IP40 |
| Size | 144.5mm X 86mm X 35.4mm |
| LED Indicator |
Power Indicator : Green
PoE Load Indicator : Green
SFP fiber indicator: Green
LAN data indicator: Yellow
|
| Immunity |
IEC60068-2-6(Vibration)
IEC60068-2-27(Impact)
IEC60068-2-32(Free Fall)
|

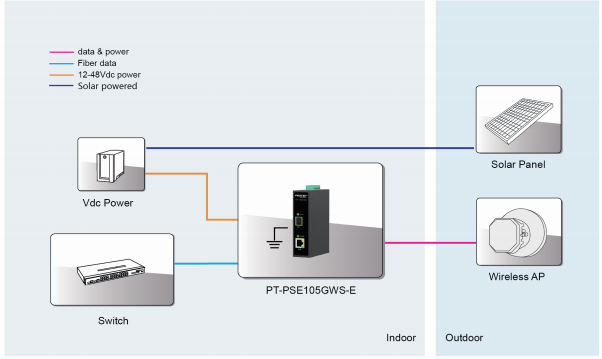

Schematic Diagram:
Company Introduction:
PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.
Certification:
Why Choose Us:
Operating since 2000
PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.
R&D Engineer Team
PROCET's engineers used PoE on 2002, and then mainly focus on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE on the end of 2003.
Our PoE engineers have experience more than 15 years by now. They started to R&D the surge on PoE using, and now they have great contribution on our outdoor PoE series.
Production quality assurance
We keeped our stable production workers, four QC with at least 4 years experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.
OEM&ODM serives
We do OEM serives. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM serives too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.
Ordering:
Order Info.: PT-PSE105GWS-E 55Vdc/1.1A/1000Mbps/(4,5+,7,8-) & 3/6(+),1/2(-) /Surge Protection/Active
Packing Size: PT-PSE105GWS-E
FAQ:
(1) Lead Time?
Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.
(2) How to buy?
Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.
Your sales consultant will contact you with 24 hr.
(3) OEM/ODM Services?
YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.
