55Vdc 1.75Amp Single Port Midspan Poe Injector 95w 6Kv Surge Protection
Single port Midspan Injector 95watts of power at 55Vdc, at 1.75Amp with 6Kv surge protection.
Froducts Features:
PT-PSE105GB-E is a single port midspan Injector with 4 Pair PoE up to 95watts of power at 55Vdc, at 1.75Amp with 6Kv surge protection.

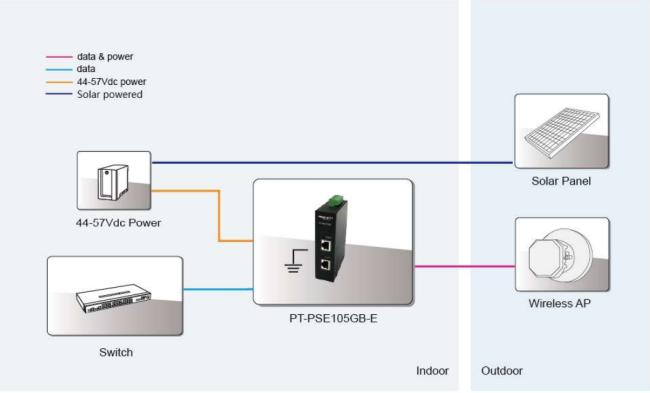

Designed for the PoE++ powered 95W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with PoE++ and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.
Enclosed in an IP40 high-impact metal case with DIN Rail mount bracket, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input voltage of 12-48Vdc make it possible for solar application and operates under -40℃ to +65℃, For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables
| Key Features: | Covered With Waterproof Case |
| Regulatory Compliance: | IEEE802.3bt RoHS Compliance WEEE Compliance |
| Output: | 95W Guaranteen |
| Working Environment: | -40℃ To 65℃ Operating |
| Connector: | Shielded RJ-45*1, SFP Slot*1 |
| Safety Approvals: | CE |
| LED Indicator: | P Indicator : Green - PoE Load Indicator : Yellow |
| Part Number: | PT-PSE105GB-E |
| Pass Through Data Rateshrough Data Rates: | 10/100/1000 Mbps |
| Input: | 12 To 48 Vdc DC 8.0A |
| POE Surge Protection: | 6000KV |
| Warranty: | 2 Year |
| Ports Conditioning: | , PoE Output Port*1, DC Input Terminal Block *1 |
| Name': | Single Port Midspan Injector |
Company Introduction:
Creative Lianjie Co., Ltd established in 2000, we have our own brand“Procet”. We are an integrated and manufactured enterprise not only specialized in R&D but also good at manufacturing. Our headquarter is based in Beijing, our R&D center and factory is located at Dongguan City.
Our company has got ISO 9001:2015, ISO 14001:2015, OHSAS 18001:2007 Certification.We accumulated abundant experiences and excellent corporate reputation during the past years.We have rich variety of PoE Products, Single-port PoE, multi-port PoE, lightning-PoE, indoor PoE, outdoor IP67 PoE, DC PoE, Wide-temperature PoE, high power PoE, Industrial PoE, SFP fiber PoE, DIN Rail&Wall mounting&Pole mounting&Wall plug PoE, PoE Splitter, PoE Extender etc.All the PoE designed base on CE/FCC/CCC requirements, part type past cUL/UL, SAA, PSE, BIS, KCC, RCM, NOM certification.
Order Info.
PT-PSE105GB-E 48Vdc/0.32A/1000Mbps/(4,5+,7,8-)/Active
Packing
PT-PSE105GB-E x 1
Manual x 1
Stock Quantity
50PCS
Warehouse Location
Dongguan China
Sample Delivery Time
Within 24H
Bulk Stock Delivery Time
Within 48H
Shipping Way
DHL,UPS,FedEx,TNT,
By SEA/AIR
Customer Nominated Forwarder
Packing Size
Qty: 20pcs/carton
G.W.: 12Kgs
Volume: 0.03 m³
Packing: Export Carton
Pallet size: 110 x 110cm
