Indoor 1 Port Passive Poe Injector White Ip40 Flame Resistant Housing
Indoor Passive PoE Injector White IP40 Flame Resistant Housing Desktop Mount Compact Size, Single Port PoE Adapter
- Small & fast: compact size, saving installation space; 3-wire pair PoE output, single-port maximum output power of 15.4W power, Supports data rate 10/100 / 1000Mbps to protect output from overvoltage, overcurrent and short circuit circuit.
- Higher performance: Single-port PoE power supply with IP40 flame retardant plastic housing, LAN port for data transmission, PoE port for data transmission & power supply, AC power supply 3Pin input power.
- Stable long-distance transmission: The EN15G-2 indoor single-port PoE provider connects to a common switch or router to exchange data and provide continuous and stable power to the remote PD via Cat5e / Cat6 cable. The effective distance is 100m .
- International certification: The EN15G-2PoE power supply device is certified to multiple CE/FCC standards and is designed for indoor installation with wall plugs and supplied with UK power cord.
- Contact Us:If you have any usage problems or are not satisfied with our products, please feel free to contact us, our professional customer service team will sincerely consult the problem.PROCET provides customers with high quality and stable PoE power supply and corresponding services.
Products Description:
| Parameter | Description |
| Key Features | Single-port |
| 10/100/1000Mbps | |
| Input 100-240Vac 0.5A 50/60Hz | |
| output 52V | |
| 0.320A 15W | |
| Power pin: 4/5+,7/8- | |
| Power cable with US/EUoptional | |
| AC input: 3 wire | |
| Part Number | EN15G-3 |

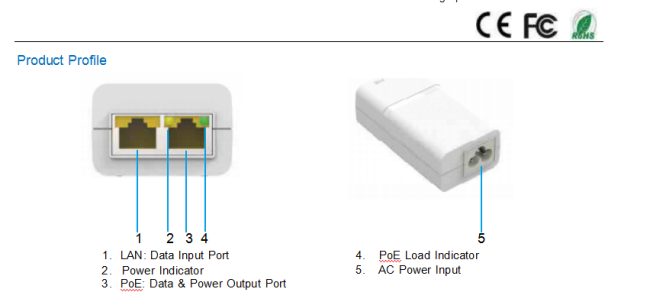

| Ports condition | LAN Port*1, PoE Output Port*1,AC inpout port *1 |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: |
| 4/5(+), 7/8(-) | |
| Output Power Voltage: 52V | |
| User Port Power: 15W Guaranteen | |
| Input | Input Voltage: 100-240Vac |
| Frequency: 50/60Hz Typ | |
| Working Environment | Operating Temperature: 0℃ to 40℃ |
| Operating Humidity: 20% to 80%, non-condensation | |
| Storage Temperature: -20℃ to 70℃ | |
| Storage Humidity: 10% to 90%, non-condensation | |
| Operating Altitude: up to 2000meters | |
| LED Indicator | Power Indicator: Yellow |
| PoE Load Indicator: Green | |
| Safety Approvals | CE, FCC |
Schematic Diagram:
Company Introduction:
PROCET(Creative Lianjie Network Technology Co., Ltd) was established in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.
Why Choose Us:
Operating since 2000
PROCET(Creative Lianjie Network Technology Co., Ltd) was established in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.
R&D Engineer Team
PROCET's engineers used PoE in 2002, and then mainly focused on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE at the end of 2003.
Our PoE engineers have experience of more than 15 years now. They started to R&D the surgeon PoE using, and now they have a great contribution to our outdoor PoE series.
Production quality assurance
We kept our stable production workers, four QC with at least 4 years of experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.
OEM&ODM services
We do OEM services. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM services too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.
Ordering:
Order Info. : PT-PTC-AT 5V-20V/25W/1000Mbps/Type-C&RJ45 Port
Packing. : PT-PTC-AT
Manual x 1
FAQ:
(1) Lead Time?
Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.
(2) How to buy?
Click the BLUE BUTTON "Inquire now" (in the middle of the page), input your order info, and send it to us.
Your sales consultant will contact you within 24 hr.
(3) OEM/ODM Services?
YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.
