Single Port Gigabit Poe Injector Industrial Power Over Ethernet Active 95w 55v
Single Port Gigabit Industrial Power Over Ethernet Active PoE Injector 95W 55V Output with Wide Temperature and 6KV Surge Protection
Build-in detection chip inside, which will detect and classify PD before powering it(Active PoE), protect output against over-voltage, over current, short circuit
UL,CB,CE,FCC,Certification, all material used are ROHS compliant,complies to IEEE802.3af/at,PoE++ standard, support transmission rate of 10/100/1000Mbps
PoE 6KV surge protection, Operating Temperature: -40℃ to 65℃, can be outdoor used by covered with a waterproof case

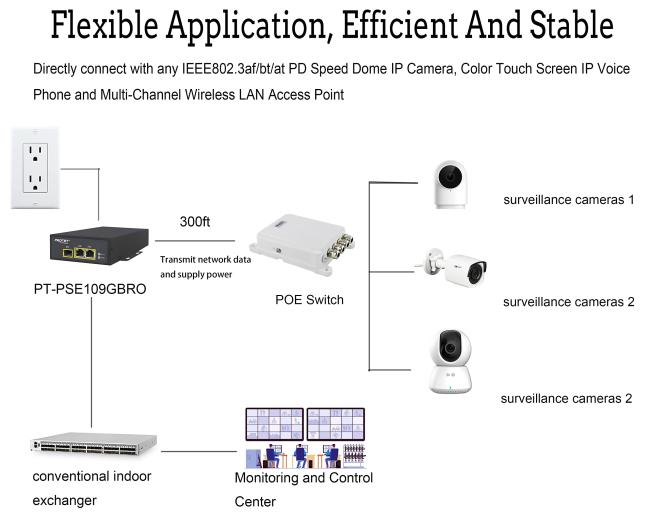

Connect with a normal switch to exchange data, and provide sustained and stable power supply through Cat5e/Cat6 cable to remote PD(including IP Phones, Cameras, Wireless APP), the effective distance is 100meters(109 yds)
| Parameter | Description |
| Key Features | Industrial PoE can be outdoor use by covered with a waterproof case |
| Extend temperature from -40℃ to 65℃ | |
| Lighting Protection at PoE port | |
| Gigabit data rates | |
| Part Number | PT-PSE109GBRO-A-S120 |
| Ports condition | LAN Port*1, AC Input Port*1, PoE Output Port*1 |
| Regulatory Compliance | IEEE802.3bt |
| Pass-Through Data Rates | 10/100/1000 Mbps |
| Case | Metal |
| Output | 55Vdc 95W |
| Input | 90 to 264Vac(100 to 240Vac Rated) 2.0A |
| Color | Black |
| Mounting | Wall-mounted |
| IP Rated | IP20 |
| Size | 214 X 134 X 41mm |
| Weight | 1070g(2.36lb) |
| Power Indicator | Green |
| PoE Load Indicator | Green |
Company Introduction:
PROCET(Creative Lianjie Network Technology Co., Ltd) was established in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.
Why Choose Us:
Operating since 2000
PROCET(Creative Lianjie Network Technology Co., Ltd) was established in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.
R&D Engineer Team.
PROCET's engineers used PoE in 2002, and then mainly focused on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE at the end of 2003.
Our PoE engineers have experience of more than 15 years now. They started to R&D the surgeon PoE using, and now they have a great contribution to our outdoor PoE series.
Production quality assurance
We kept our stable production workers, four QC with at least 4 years of experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.
OEM&ODM services
We do OEM services. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM services too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.
FAQ:
(1) Lead Time?
Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.
(2) How to buy?
Click the BLUE BUTTON "Inquire now" (in the middle of the page), input your order info, and send it to us.
Your sales consultant will contact you within 24 hr.
(3) OEM/ODM Services?
YES. Tell us your demand, get the products you want. For distributors, we can put your labels on it too.
