30W 5G Indoor Rated PoE Midspan Injector Power over Ethernet Injector Passive PoE Injector

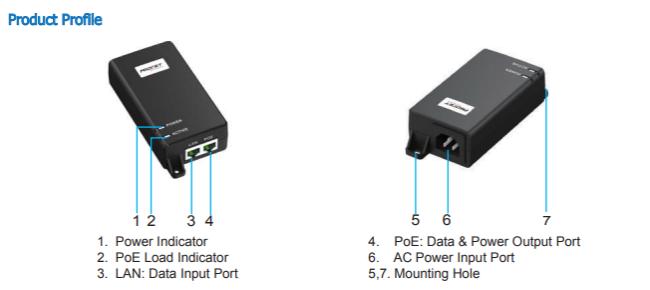

PT-PSE104GO-30-5 is an indoor-rated power over ethernet midspan Injector adapter specially designed for complex backhaul and networking applications. Enclosed in an IP40 fire retardant plastic case.

After negotiating IEEE802.3at standard power over ethernet, the single power over ethernet output power port delivers 55Vdc, 0.55A up to 30W power for remote PDs over 2 Pair at 2.5GbE/5GbE NBase-T data rates. It works with a wide input power voltage of 100-240VAC, 50 or 60 Hz and operates from -40℃ to +65℃. It fully complies with IEEE802.3at standard and remains compatible with any IEEE802.3af compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT applications, door locks, displays, POS, and information kiosks.

For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.

Specification

Standard

- IEEE802.3 10Base-T Ethernet

- IEEE802.3u 100Base-Tx Fast Ethernet

- IEEE802.3ab 1000Base-T Gigabit Ethernet

- IEEE802.3bz 2.5GbE/5GbE NBASE-T

- Full compliant with IEEE802.3af/at, Power over ethernet++

- RoHS Compliance

- WEEE Compliance

Input & Output

- Input :100-240Vac 1.5A 50/60Hz

- Output: 55Vdc 550mA

- Power Pins: 4/5(+), 7/8(-)

- Data Speed: 10/100/1000Mbp & 2.5/5GbE

AC Surge Protection

- 1.0KV (5P/5N)

- L-N 1.2/50 (8/20) Tr/Th us

- 2.0KV (5P/5N)

- L-PE 1.2/50 (8/20) Tr/Th us

- N -PE

Mechanical Characteristics

- Case: Plastic

- Color: Black

- Mounting: Wall-mounted

- IP Rated: IP40

- Size: 145.51mm X 65.8mm X 33.5mm

- Weight: 255g

Certification:

FAQ

Q: Are you manufacturer or trading company?

A: Manufacturer, and industry network total solution provider.

Q: Do you accept ODM/OEM?

A: Yes. We provide customized service.

Q: What is your minimum order quantity?

A: MOQ is 1 unit.

Q: What’s the payment type?

A: T/T, L/C,Western Union, Money Cram, Credit Card, Alipay, Cash.

Q: What’s the accepted trade terms?

A: EXW, FOB, CIF, FAS, CIP, FCA, CPT, DED, etc.

Q: How about shipping time?

A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.

Q: How about after-sales service?

A: 7/24 hours online and respond to user's field device problems in time.

Q: How about the warranty?

A: 5 years.
