4 Pairs PoE Lightning Protection, IEEE802.3bt Din Rail Ethernet Lightning Surge Protector, 4 Input & 4 Input Ports

Technical Parameter :

Input & Output

- Operating Voltage: 60Vdc Max
- Maximum Operating Power: Maximum 120W
- Data Speed: 10/100/1000Mbps

Working Environment

- Operating Temperature: -40℃ to 85℃
- Operating Humidity: 20% to 80%, non-condensation
- Storage Temperature: -40℃ to 85℃
- Storage Humidity: 10% to 90%, non-condensation
- Operating Altitude: up to 5000meters

PoE Surge Protection
- Max Discharge Current: 10KA(8/20us,1.25KA per line)
- Protected Line: 1,2,3,4,5,6,7,8
- Common Mode Protection Level(10/700us): 10KV
- Differential Mode Protection Level(10/700us): 1.5KV
- Insertion Loss @10MHz/100MHz:-1db
- Return Loss @10MHz/100MHz: -20db
- Response Time:5ns

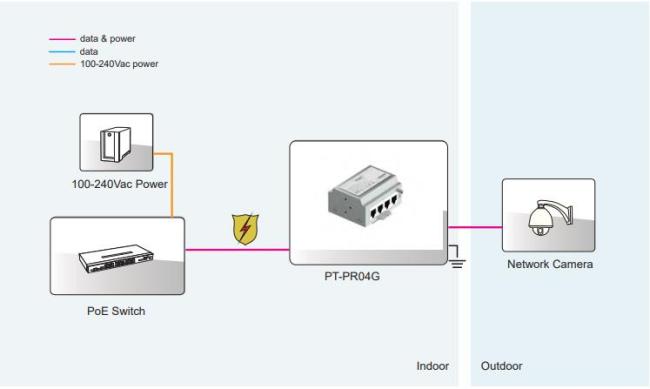

Schematic Diagram:

Company Introduction:
PROCET(Creative Lianjie Network Technology Co., Ltd) was established in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

Procet is experienced in PoE Manufacturing, we have:

High-Quality Material

We keep good cooperative relationships with famous chips suppliers and electronic parts and components vendors. Procet uses superior quality materials, such as Rubycon and Nichicon Electrolytic capacitor, and Infineon Mosfet. Stable power supply for AC input. High-performance detecting chip. All materials used are RoHS compliant, REACH Declaration of Conformity.

R&D Ability

We have been dedicated to R&D PoE and relevant technology since 2003, we accumulated abundant experiences in the files. We can offer you unlimited technical support. We have over 10 series and more than 200 models of PoE from 15W to 160W. Both OEM and ODM are acceptable. Customization PoE to match all your emerging devices. We program our own Power Source Equipment(PSE) signature detection which is compatible with most PDs in the market, such as IEEE802.3af/at/bt, Pre BT, PoH.

Production Quality Assurance

We use progressive management systems at production, ISO 9001 QUALITY MANAGEMENT SYSTEM, ISO 14001 ENVIRONMENTAL MANAGEMENT SYSTEM, and OHSAS 18001 OCCUPATIONAL HEALTH AND SAFETY MANAGEMENT SYSTEM. Our factory equip advanced facilities for production and development. All the PoE is designed based on CE/FCC/CCC requirements, part type past cUL/UL, SAA, PSE, BIS, KCC, RCM, NOM certification. Every production process is under our control.
