Ip40 Fiber Injector Industrial Rated For Backhaul And Networking Application
Industrial Rated Fiber PoE Media Converter Specially Designed for Complex Industrial Backhaul and Networking Application
Technical Parameter :
| Parameter | Description |
| Key Features | Industrial Fiber PoE can be outdoor use by covered with waterproof case |
| Surge protection at PoE port | |
| 1000Base-FX to 1000Base-TX | |
| SFP slot for Multi mode or Single mode SFP transceiver | |
| Gigabit data rates | |

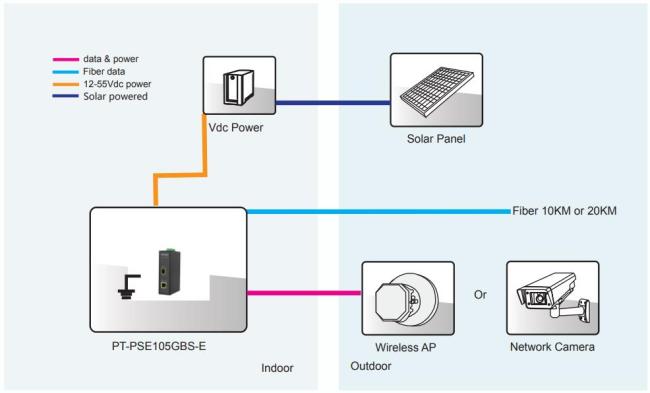

| 12-48VDC input make it possible for solar application | |
| DIN Rail mount | |
| IP40 high-impact metal enclosure | |
| Extend temperature from -40℃ to 65℃ | |
| Diagnostic LEDs | |
| Ports condition | SFP Port*1, PoE Output Port*1, DC input Terminal Block *1 |
| Pass Through Data Rates | 1000 Mbps |
| Output Power Voltage: 55Vdc | |
| User Port Power: 95W Guaranteen | |
| Input | DC Input Voltage: 12 to 48 Vdc |
| DC Input Current: 8.0A | |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 |
| Common mode surge protection(10/700us): 6KV | |
| Differential mode surge protection (10/700us): 1.5KV | |
| Mechanical Characteristics | Case: Metal |
| Color: Black | |
| Mounting: DIN-rail | |
| IP Rated: IP40 | |
| Connectors: Shielded RJ-45*1, SFP slot*1 | |
| Size: 144.5mmX 95mmX 35.4mm | |
| Weight: 485g(1.1lb) | |
| Warranty | 2 year |
Input & Output
- Input :12-55Vdc 10.0A
- Output: 55Vdc 1750mA
- Power Pins: 4/5(+), 7/8(-) & 3/6(+),1/2(-)
- Data Speed: 10/100/1000BASE-T RJ45 Interfaces
1000BASE-X SFP Interfaces
Working Environment
- Operating Temperature: -40℃ to 75℃
- Operating Humidity: 20% to 80%, non-condensation
- Storage Temperature: -40℃ to 85℃
- Storage Humidity: 10% to 90%, non-condensation
- Operating Altitude: up to 5000meters
PoE Surge Protection
- Protected line: 1,2,3,4,5,6,7,8
- Common mode surge protection(10/700us): 6KV
- Differential mode surge protection (10/700us): 1.5KV
Immunity
- IEC60068-2-6(Vibration)
- IEC60068-2-27(Impact)
- IEC60068-2-32(Free Fall)
