Customizable Outdoor P10 Bright And Large Outdoor Advertising Display
Customizable Outdoor P10 Bright And Large Outdoor Advertising Display
Product description

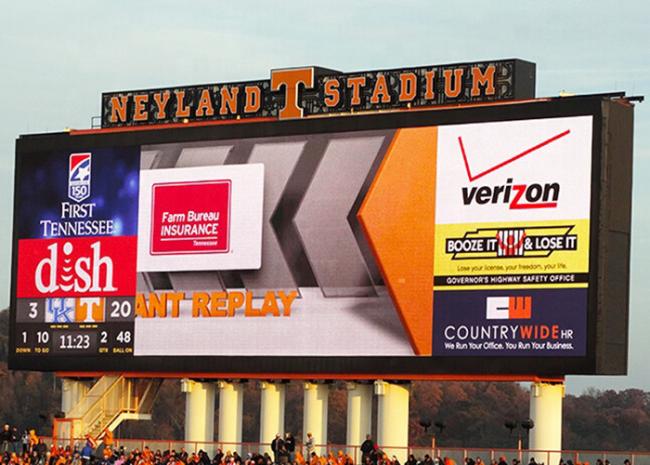

1. Advertising billboards, landmark billboards, street view billboards, digital billboards, transportation hub billboards, stadiums.
2. The most advanced automated production equipment and professional team, selection of first-class raw materials, strict raw materials and process control.
3. High Brightness,High Gray Scale,High Contrast Ratio,High Refresh Rate,Wide color gamut,High level driving IC.
4. The 304 stainless steel screws and locks, the aluminum panel, and the double protection of strongly-insulated wires wrapped in fiberglass, thereby ensuring longer service life of our products.
5. Thin Panel,Convenient Transport,Save Transport Cost.
6. Flexible Installation,Convenient Maintenance-Front and Rear Access.
| Pixel Pitch | 10mm | |||
| LED Lamp | SMD3535 | |||
| LED configuration | SMD 3 in 1 | |||
| Module Size | 320mm x 160mm | |||
| Module pixels | 32x16dots | |||
| Cabinet Size(WxHxD)(mm) | 960x960x101mm | |||
| Module Quantity(pcs) | 18 | |||
| Pixel Density | 96x96dots | |||
| Cabinet pixels | 9216 dots | |||
| Cabinet Material | Magnesium alloy | |||
| Cabinet Weight (kg) | 25 | |||
| Average Power/sqm (watts) | 200 | |||
| Max Power/sqm(watts) | 600 | |||
| Brightness | 7000-7500cd/㎡ | |||
| Viewing Angle | H:160°, V:120° | |||
| Best Viewing Distance | 10-100 meters | |||
| Brightness Control | 256 level | |||
| Gray scale | 14 bit | |||
| Refresh frequency | 1920hertz | |||
| Driving mode | 1/2 scan | |||
| Input power frequency | 50 or 60 Hertz | |||
| Input Voltage | 110 ～ 240 Volt,60Hz | |||
| Blind spot rate | ＜1/10000 | |||
| Lifetime at 50% brightness | 100000 hours | |||
| Ingress Protection | IP65 | |||
| Operating temperature | ﹣20 ～﹢60 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | HDMI,DVI,SDI,VGA etc. | |||
