Monocrystalline Diamond Powder Mesh Size 6/8 (2.2MM) Grade 2240

Mesh 6/8 2.2MM Monocrystalline Diamond Powder For Saw Blade

Description:

Monocrystalline Diamond is produced by HPHT (high-pressure, high-temperature) synthesis. The diamond particles feature an oriented crystal structure with parallel-running cleavage planes, similar to natural diamond. For diamond tools, particle fracturing provides a self-sharpening mechanism and thus increases tool life. Monocrystalline diamond is a popular choice for precision grinding and cutting of various materials.

HID 22 series refers the grits from size 40/50 to size 70/80 which are mainly used to produce saw blades. The quality under this series is good enough to substitute the imported materials that are produced by belt press

HID 21 series refers to the grits with size bigger than 35/40 (0.425mm-3.0mm). Compared with HID 21 series,these grits are bigger and with higher quality. All the quality data of this series, such as Ti, shape, color and transparency, can meet the international standards. lt fills up the technology blank on large diamond grits of China and marks that our diamond manufacturing technology reached the advanced level in the world.

HID 22 Series Mesh Size Available:

HID 21 Series Mesh Size Available:

HID 22 and HID 21 Series

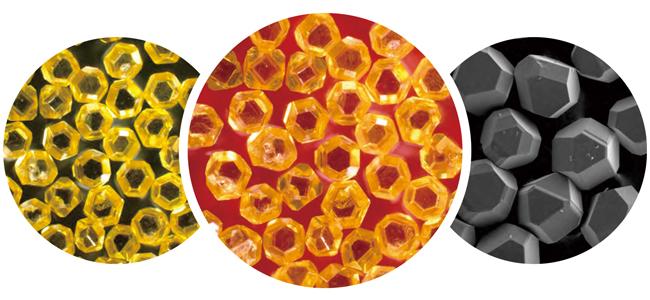

- Monocrystalline Diamond Grade HID 2290
Uniform crystal color, regular shape, good diaphaneity, high strength and great thermal stability,applied to make tools for cutting all kinds of hard stone and concrete,also suitable for making geological drills.

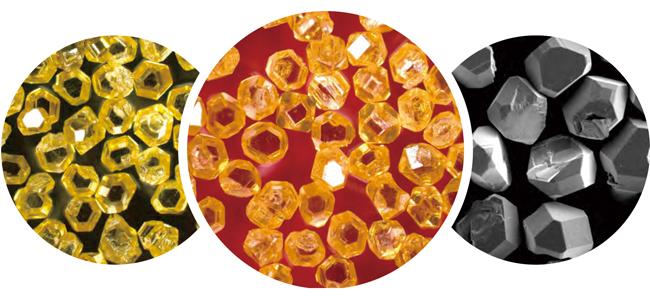

- Monocrystalline Diamond Grade HID 2280
Complete crystal shape, perfect octahedron, good diaphaneity,high impacting strength and thermal stability, suitable for high grade cutting, drilling and grinding tools.

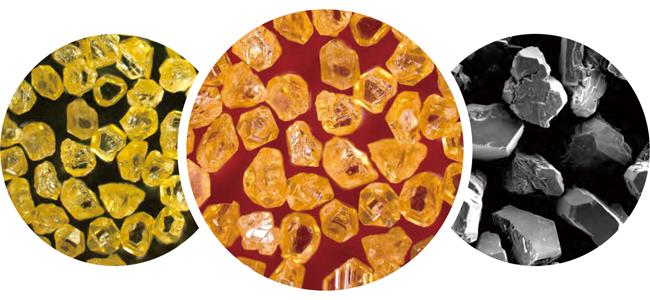

- Monocrystalline Diamond Grade HID 2260
Complete crystal shape, good diaphaneity and low impurity,high strength,suitable for making circular saws ,frame-saw and geological drills.

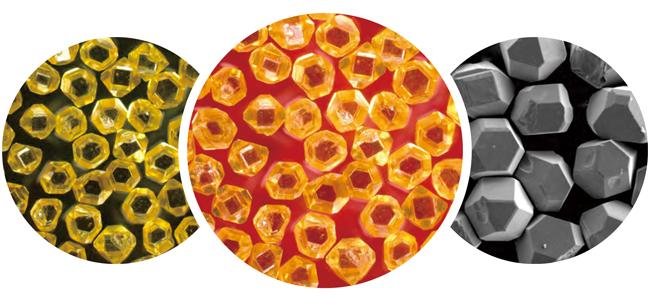

- Monocrystalline Diamond Grade HID 2240
Comparatively regular crystal shape,high mechanic strength,medium grade containing more regular crystal, suitable for grinding and free-cutting tools, grinding wheels which work with medium load.

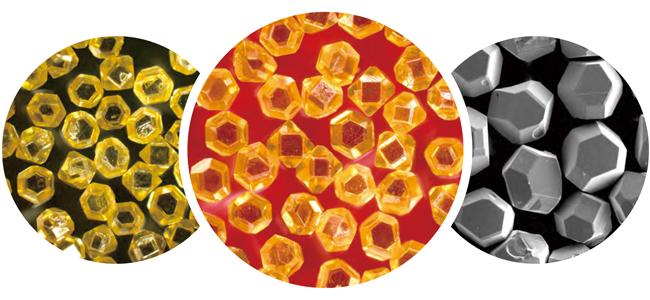

- Monocrystalline Diamond Grade HID 2230
Comparatively regular crystal shape, high strength,containing some regular crystals, suitable for grinding and cutting tools, grinding wheels that work with medium load.

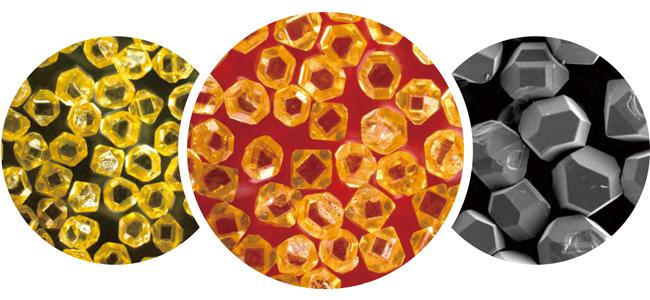

- Monocrystalline Diamond Grade HID 2220
Irregular crystal shape and low strength, belonging to low grade diamond,suitable for low load grinding.

- Monocrystalline Diamond Grade HID 2215
Irregular crystal shape and low strength,suitable for low load grinding such as grinding.

- Monocrystalline Diamond Grade HID 2110
Poor crystal shape,irregular, low in strength,mainly used to make resin tools.

Application of Monocrystalline Diamond Powder:

HID 22 & 21 series of monocrystalline diamonds are widely using for sawing,drilling and grinding applications in the stone, construction, mining and oil and gas industries.
