4M Series 5 Port 2 Position Solenoid Valve 3 Way 4M210-08 0.15-0.8MPa
4M series 2 position 5 port Solenoid Valve 4M210-08
Aluminum Alloy 5 way 2 position namur solenoid valve. G1/4'' port size, Class F insulation, 4.8 Watts coil power, IP65 coil protection. The solenoid valve with 5 position 2 positions with namur interface makes it suitable for attaching directly to the pneumatic actuator (both in operation and back to the spring). Standard features include manual override, indicator plug (IP65), encapsulated low voltage coil (AC 5.5 VA, DC 4.8 Watts). Available in all voltages. Comes with mounting screws.
Data of NAMUR Pneumatic Solenoid Valves:
| Model No |
4M110-M5 4M120-M5 |
4M110-06 4M120-06 |
4M210-06 4M220-06 |
4M210-08 4M220-08 |
4M310-08 4M320-08 |
4M310-10 4M320-10 |
| Fluid | Air (to be filtered by 40 μm filter element) | |||||
| Port Size | In=Out=M5 | In=Out=1/8'' | In=Out=1/8'' | In=Out=1/4'' | In=Out=1/4'' | In=Out=3/8'' |
| Orifice Size |
5.5mm² (Cv=0.31) |
12.0mm² (Cv=0.67) |
14.0mm² (Cv=0.78) |
16.0mm² (Cv=0.89) |
25.0mm² (Cv=1.40) |
30.0mm² (Cv=1.67) |
| Valve Type | 5 Way 2 Position | |||||
| Operating Pressure | 0.15 to 0.8MPa (21 to 114 PSI) | |||||
| Proof Pressure | 1.5MPa (215PSI) | |||||
| Temperature (℃) | -20 to +70 | |||||
| Body Material | Aluminum Alloy | |||||
| Max. Frequency | 5 Cycle / Second | 4 Cycle / Second | ||||
| Coil Voltages | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | |||||
| Coil Protection Class | IP65 | |||||
| Activating Time | 0.05 second and below | |||||

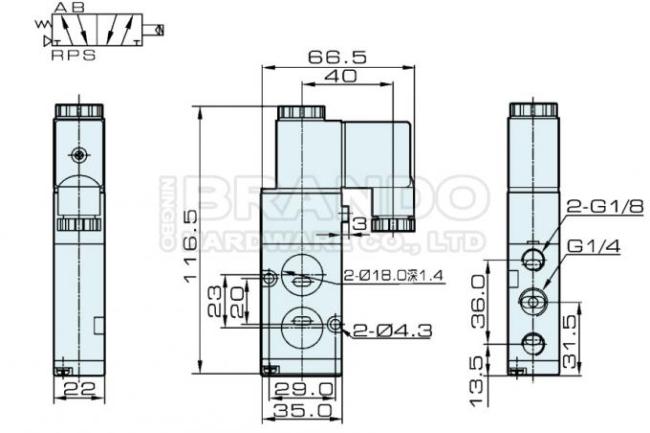

Dimension of 4M210-08 Namur Solenoid Valve:
