3V310-10-NO Airtac Type Pneumatic Solenoid Valve 3 Way 2 Position
Price:
Negotiable
MOQ:
1 PC
Delivery Time:
5 working days after receiving the customers' payment
Brand:
DOPOW
Product Description
3V310-10-NO Airtac Type Pneumatic Solenoid Valve 3 Way 2 Position
The 3V310-10 is a pneumatic directional solenoid valve with a three-way operation & three ports (P = Pressure, A = Outlet, EA = Exhaust for port A). Three-way, two-position valves are generally used to fully extend a single acting (spring return) cylinder, or in applications with similar operation.
Technical Data of 3V300 Series Pneumatic Solenoid Valves:
| Model No | 3V310-08 | 3V320-08 | 3V310-10 | 3V320-10 |
| Fluid | Air (to be filtered by 40 μm filter element) | |||
| Port Size | In=Out=1/4'' | In=Out=3/8'' | ||
| Orifice Size |
25.0mm² (Cv=1.39) |
30.0mm² (Cv=1.67) |
||
| Valve Type | 3 Way 2 Position | |||
| Operating Pressure | 0.15 to 0.8MPa (21 to 114 PSI) | |||
| Proof Pressure | 1.5MPa (215PSI) | |||
| Temperature (℃) | -20 to +70 | |||
| Body Material | Aluminum Alloy | |||
| Coil Voltages | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | |||
| Coil Protection Class | IP65 | |||
| Activating Time | 0.05 second and below | |||

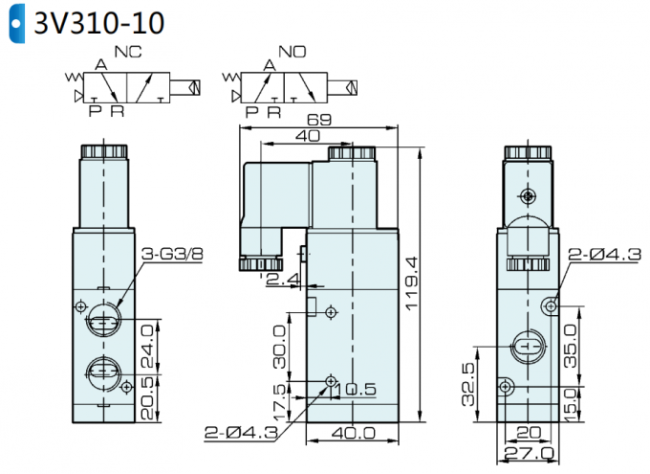

Dimension of 3V310-10 Pneumatic Solenoid Valve:
