24VDC Pneumatic Double Solenoid Valve 4V220-08 Good Corrosion Resistance

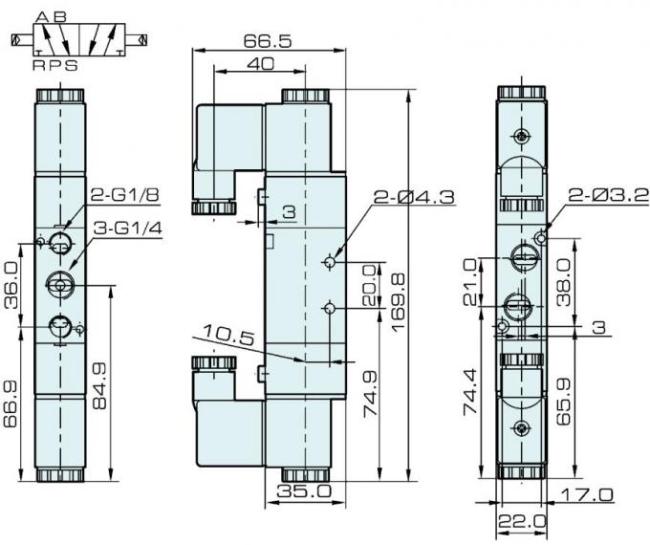

24VDC Pneumatic Double Solenoid Valve 4V220-08
1. The strength of the aluminum alloy valve body is large. The valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation;
2. High quality sealing ring. High quality seals for durability and longer life;
3. High precision valve stem. Imported high-quality lubricants to ensure lubrication and reduce friction during exercise;
4. High frequency sub-head. Made of high-quality conductor material with 5 times in 1 second high intensity and high frequency response for smoother operation;
5. The coil is easy to disassemble. Removable core nut, coil can be replaced at any time;
6. High quality electronic components. The copper coil can work hard for a long time, the wiring operation is simple;
7. Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
| Model | 4V210-06 | 4V220-06 | 4V230C-06 | 4V230E-06 | 4V230P-06 | 4V210-08 | 4V220-08 | 4V230C-08 | 4V230E-08 | 4V230P-08 |
| 4A210-06 | 4A220-06 | 4A230C-06 | 4A230E-06 | 4A230P-06 | 4A210-08 | 4A220-08 | 4A230C-08 | 4A230E-08 | 4A230P-08 | |
| Valve type | 5/2 way | 5/3 way | 5/2 way | 5/3 way | ||||||
| Effectiive area | 14 mm2(CV=0.78) | 12 mm2(CV=0.67) | 16 mm2(CV=0.89) | 12 mm2(CV=0.67) | ||||||
| Model | 3V210-06 | 3V220-06 | 3A210-06 | 3A220-06 | 3V210-08 | 3V220-08 | 3A210-08 | 3A220-08 | ||
| Valve type | 3/2 way | |||||||||
| Effective area | 14 mm2(CV=0.78) | 16 mm2(CV=0.89) | ||||||||
| Port size | Inlet , outlet,exhaust port=1/8" | Inlet, outlet=1/4", Exhaust port=1/8" | ||||||||
| Working medium | 40 micron filtered air | |||||||||
| Operation | Internal piloted | |||||||||
| Working pressure | 0.15-0.8 Mpa | |||||||||
| Max. pressure | 1.2 Mpa | |||||||||
| Temperature | 5-50 degrees centigrade | |||||||||
| Voltage tolerance | Plus or minus 10% | |||||||||
| Power consumption | AC:5.5 VA, DC:4.8W | |||||||||
| Connector protection | F Class , IP65 | |||||||||
| Wiring/Connector | Cable/Lead wire or DIN connector | |||||||||
| Frequency | 5 cycles/ sec | |||||||||
| Response time | 0.05 sec | |||||||||
