3F210-08 Airtac Type Foot Pedal Air Valve 3 Way 2 Position Direct Acting
3F210-08 Airtac Type Foot Pedal Air Valve 3 Way 2 Position
Product Feature:
1. Direct acting and normally closed type.
2. The 3F series has aluminum foot pedal and 3FM series has plastic foot pedal, in direct acting type, horizontal and compact structure.
3. If the duration of direction-change is long. the valves with lock may be selected.
4. The clamping framework is steady and reliable that it is easy and quick to unlock. However, with the limitation of the dimension of structure, it can not bear frequent strong impact.
Technical Data of 3F, 3FM series Foot Pedal Valve:
| Model | 3F210-M5 | 3F210-06 | 3FM210-06 | 3F210-08 | 3FM210-08 |
| Fluid | Air (to be filtered by 40μm filter element) | ||||
| Operating | Acting type controlled by foot normally closed | ||||
| Port Size | M5 | 1/8'' | 1/8'' | 1/4'' | 1/4'' |
| Valve Type | 3/2 way | ||||
| Pressure Range | 0 to 1.0 MPa (0 to 145 psi) | ||||
| Proof Pressure | 1.5 MPa (215 psi) | ||||
| Temperature | -20 to +70℃ | ||||
| Body Material | 3FM: Plastic, 3F: Aluminum Alloy | ||||

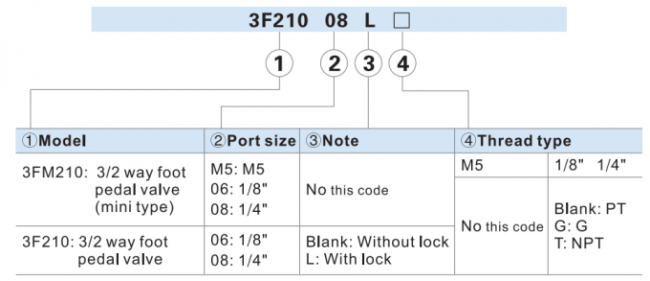

Ordering Code of 3F, 3FM series Foot Pedal Valve:

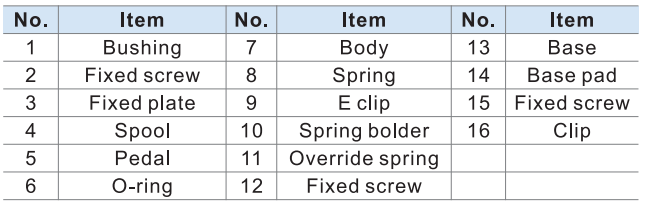

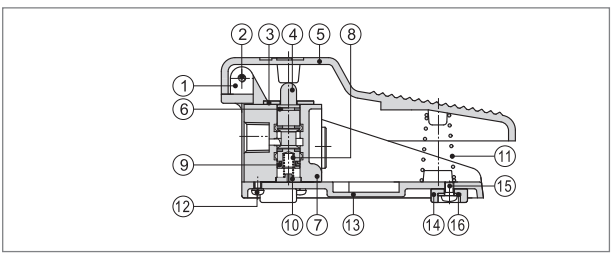

Inner Structure of 3F, 3FM series Foot Pedal Valve:

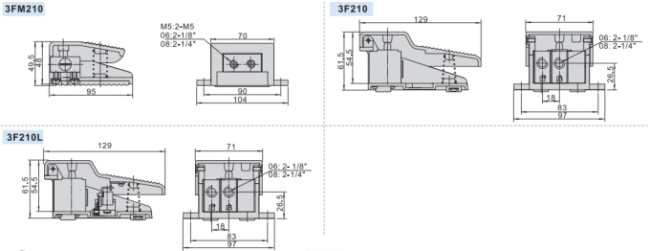

Dimension of 3F, 3FM series Foot Pedal Valve:
