Water Proof Capacitive PCAP Touch Screen Monitor For Kiosk POS 7-55"
Customization Water Proof 7-55" PCAP Capacitive Touch Panel for Kiosk POS
Touch screen devices placed in the lobby. Financial institutions are places where Capacitive Touch Panel Screen are used a lot. The bank can help the business through the operation of the touch screen. It is more convenient for the handler to enter the information in advance and then go to the front desk to handle it. Today, I would like to introduce to you which industries are suitable for touch screens.
1. Capacitive Touch Panel Screen Apply In Cinema
The staff of touch screen manufacturers introduced that movie theaters are also places where touch screens are often used. Many movies need to be promoted through the touch screen in the early stage of the screening. Only in this way can more people learn about the movie and its content. So according to the staff of touch screen manufacturers, the frequency of use of touch screens in movie theaters has gradually increased in recent years. So many lovers and theater staff lovers lov many movie lovers and theater staff.
Main Feature
- High image clarity
- Free of drift
- Z-axis pressure recognition
- Strong mechanical strength
- Short response time
- Compact size for easy integration
- Customization available on glass sensorsize, driver, accessories
Specification of Product
| Technical specification | |
| Type | Projected touch panel |
| Interface | USB |
| Number of touch point | 10 |
| input voltage | 5V ---- |
| Pressure endurance value | <10g |
| Input | Hand writing or capacitive pen |
| Transmittance | >90% |
| Surface Hardness | ≥6H |
| Usage | The specification is applied to transparent and handwriting input |
| capacitive touch panels | |
| Application | It's applied in ordinary electric equipments and automatic office facilities |
| Cover Lens Specification | |
| Pressure Value | 400 ~500 mPA above 6u |
| Ball Drop Test | 130g±2g, 35cm, No damage after the impact at the central area for once. |
| Hardness | ≥6H Pencil: 6H Pressure: 1N/45. |
| Environment | |
| Working temperature and humidity | -10~+60ºC, 20~85% RH |
| Storage temperature and humidity | -10~+65ºC, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 65ºC, 120H |
| Cold resistance | -10ºC, 120H |
| Thermal shock | -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles |
| Anti - glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Software(Firmware) | |
| Scanning | Auto full screen scanning |
| Operate system | Win 7,Win 8,Win10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |

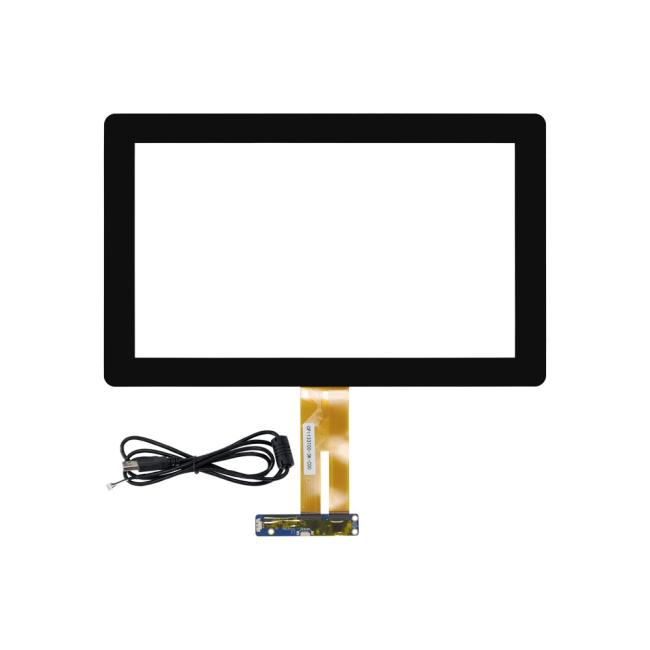

Picture of Product
Technical Drawing
