19 Inch RK3288 RK3399 AIO Touch PC With Waterproof PCAP Touch Screen
Price:
Negotiable
MOQ:
10 pcs
Delivery Time:
5-8 working days
Brand:
CJTOUCH
Product Description
19 inch Multi Touch Screen AIO Touch PC with waterproof touch screen with RK3288 RK3399 I3 I5 I7
19 inch AIO Touch PC Features:
- Optional size from 10.1'' 12.1'' 13.3'' 15'' 15.6'' 17'' 18.5'' 19'' 21.5'' 23.8'' 27'' 32'' 43'' 55'' 65''
- With anti-vandal PCAP multi 10 points touch screen
- IP65 touch screen sur face waterproof sealled
- CPU RK3288 / RK3399 / J1900/I3/I5/I7 optional
- RAM 2GB - 32GB Optional
- SSD 32GB -512GBOptional
- VESA mounting and rear mounting
- Factory competitive price and fast delivery
- Our Touch screen all in one panel pc are widely used in so many fileds, including transportation, entetainment, education, finance, industrial control, self service kiosk, etc.
- Warranty: 12 months
- 14 years' experienced manufacturer of SAW / Infrared / PCAP touch screens/touch monitors/ AIO Touch PC
Specifications:
| General Information | |
| Model | CCT190-CFF-M110S-LA |
| CPU | RK3288 / RK3399 /J1900 / I3/I5/I7 optional |
| RAM | 2GB / 4GB / 8GB / 16GB / 32GB |
| Memory | SSD 32GB / 64GB / 128GB / 256GB /512GB |
| Interface | USB, COM, RJ45, HD-MI, VGA |
| Power supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A |
| Mount Interface |
1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical |
| OS | Wins or Android |
| LCD Specification | |
| Active area(mm) |
376.32 × 301.056 (H×V) mm |
| Resolution |
1280×1024@60Hz |
| Pixel Pitch(mm) |
0.264×0.264 (H×V) |
| Nominal input voltage VDD |
+5V |
| Viewing angle(v/h) |
85/85/80/80 (Typ.)(CR≥10) |
| Contrast |
1000:1 |
| Luminance (cd/m2) | 250 cd/m² (Typ.) |
| Response time |
3.6/1.4 (Typ.)(Tr/Td) |
| Support color |
16.7M |
| Backlight MTBF(hr) | 30000 |
|
Touchscreen Specification |
|
|
Type |
CJTOUCH capacitive PCAP touch panel |
|
Multi touch |
10 points touch |
|
Touch Life Cycle |
10 millions |
|
Touch Response time |
8ms |
|
Touch System Interface |
USB interface |
|
Power consumption |
+5V@80mA |
|
External AC Power Adapter |
|
|
Output |
DC 12V /5A |
|
Input |
100-240 VAC, 50-60 Hz |
|
MTBF |
50000 hr at 25°C |
|
Environment |
|
| Operating temp. | 0~50°C |
| Storage temp. | -20~60°C |
| Operating temp. | 20%~80% |
| Stroage RH | 10%~90% |
Components:
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs

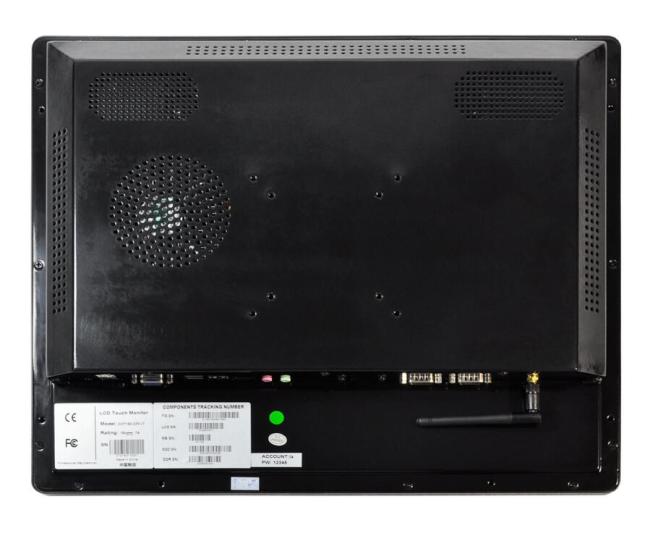

Pictures:
