Antiglare 10.1inch All In One Desktop Computer Dustproof High Sensitivity
High quality flat screen panel capacitive touch monitor 10.1inch all in one pc touch computer
10.1inch all in one PC Features:
- Size varied from 10.1'' to 55'' touch all in one PC
- High image clarity and fast respone
- 3mm tempered vandal-proof touch screen glass
- L G, Sam sung, AU O, BO E, ect Original Grade A+LCD LED Panels
- Capacitive Technology support 5 or 10 points multi-touch function
- IP65 Touch screen surface Waterproof Sealled
- J1900/I3/I5/I7/Android CPU Optional
- 2/4/8/16/32 GB ect RAM Optional
- 32/64/128/256/512 ect SSD Optional
- Our all in one PC are widely used in so many fileds, including transportation, entetainment, education, finance, industrial control, self service kiosk, etc.
- Warranty: 1 year
- 14 years' experienced manufacturer of SAW / Infrared / PCAP touch screens/touch monitors/PC
10.1inch all in one PC Specifications:
| General Information | |
| Model | CCT101-CFK-RK3288 |
| CPU | Intel(R)Celeron(R)CPU J1900 - I3/I5/I7/ Android optional |
| RAM | 2/4/8/16/32GB |
| Memory | 32/64/128/256/512 GB |
| Interface | H-DMI, VGA, USB, COM, RJ45 |
| Power supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A |
| Mount Interface | 1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical |
| OS | Wins7/8/10 |
| LCD Specification | |
| Active area(mm) | 220.8(H)×139.2(V) mm |
| Resolution | 1280(RGB)×800, WXGA, 149PPI |
| Pixel Pitch(mm) | 0.0565×0.1695 |
| Nominal input voltage VDD | 3.3v |
| Viewing angle(v/h) | 80/80/80/80 (Typ.)(CR≥10) |
| Contrast | 500:1 (Typ.) (TM) |
| Luminance (cd/m2) | 400 cd/m² (Typ.) |
| Response time | 30 (Typ.)(Tr+Td) ms |
| Support color | 16.7M , 45% NTSC |
| Backlight MTBF(hr) | 30000 |
| Environment | |
| Operating temp. | 0~50°C |
| Storage temp. | -20~60°C |
| Operating temp. | 20%~80% |
| Stroage RH | 10%~90% |
Components:
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs

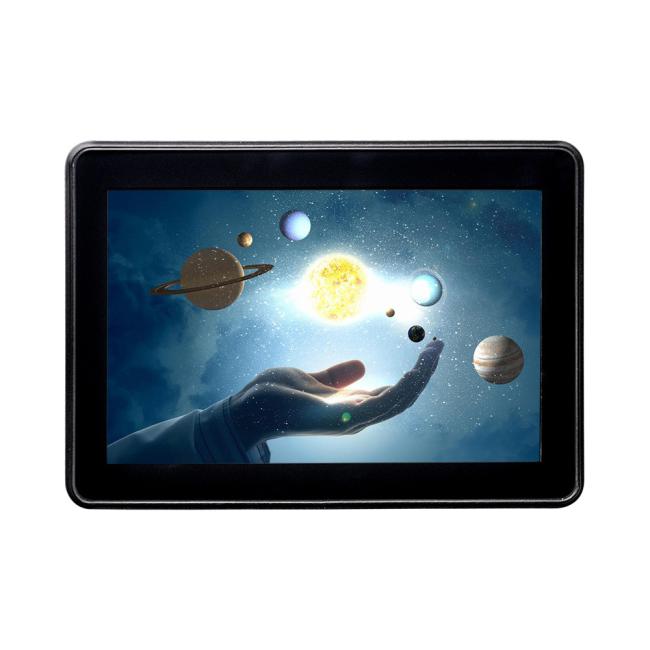

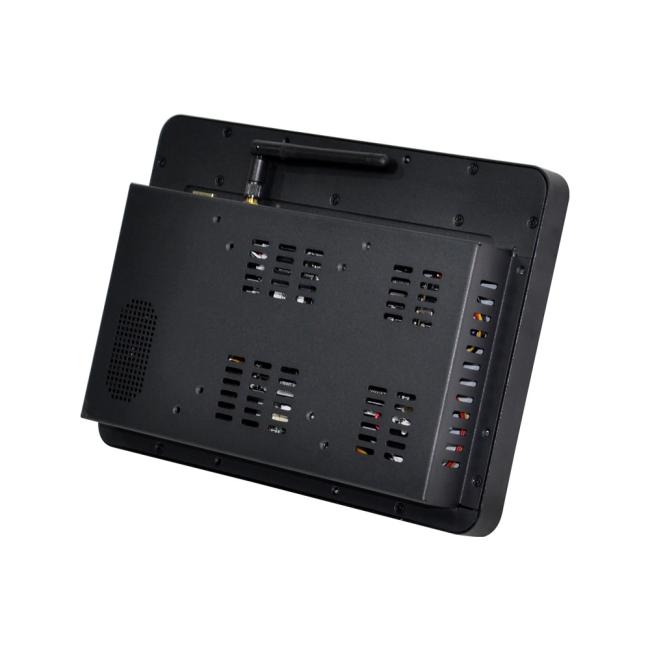

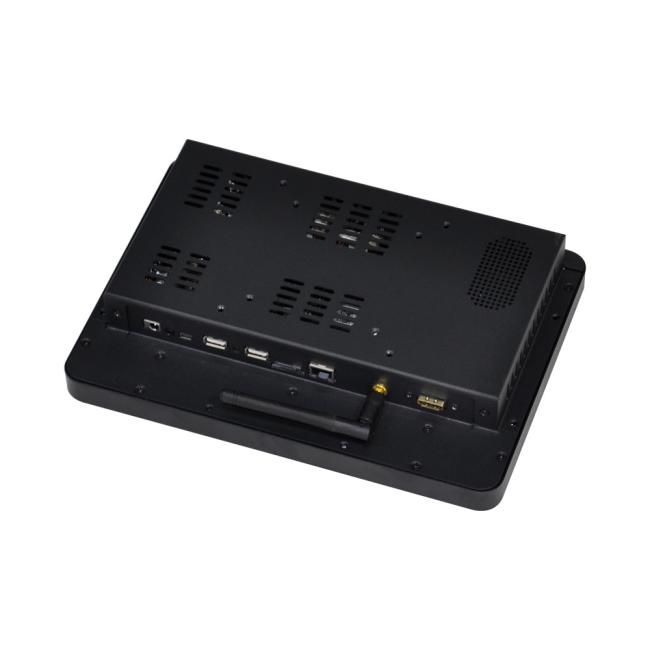

10.1inch all in one PC Pictures:

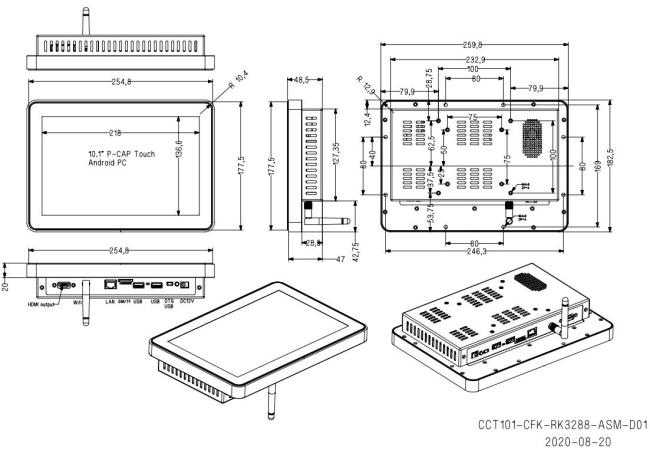

10.1inch all in one PC drawing:

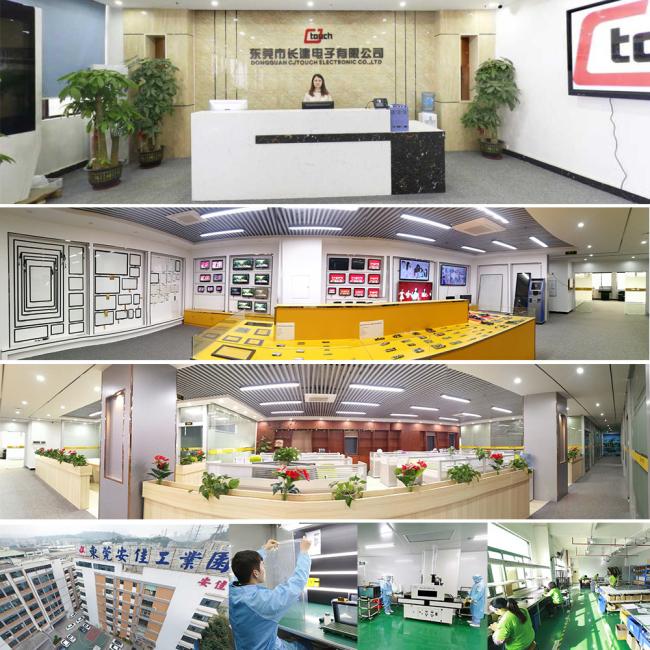

Who we are ?
We CJTOUCH Established in 2006 and headquartered in Dongguan, China, CJTouch has proven to be reliable and trustworthy partners to help seamlessly integrate our products into your total solution.
Over 12years of combined experience in researching and developing touch-enabled screens and monitors.
Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.

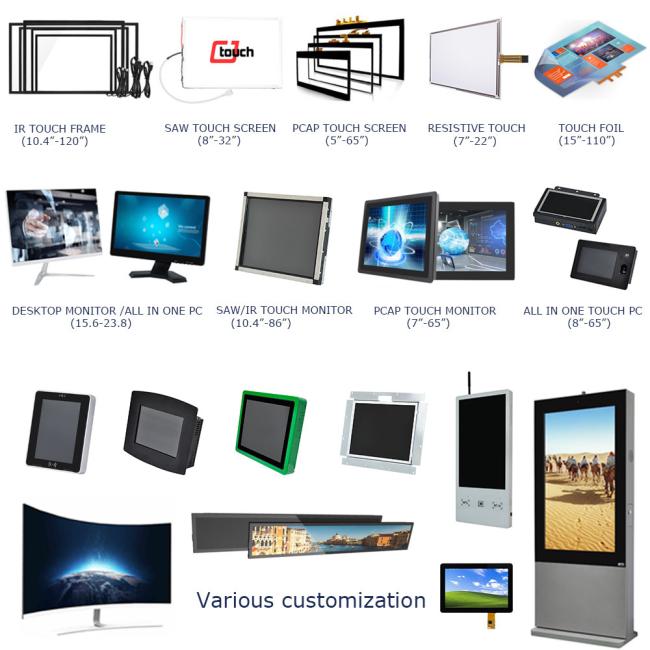

What We can offer ?
♦ IR touch screen/Frame
♦ SAW touch screen
♦ PCAP touch screen panel
♦ 4wire/5wire resistive touch screen
♦ PCAP/NANO touch foil/film
♦ PCAP flat screen touch monitor
♦ SAW touch screen monitor
♦ IR Open frame touch display
♦ Desktop touch monitor
♦ Desktop all in one touch PC
♦ PCAP all in one touch computer
♦ Bar lcd panel
♦ High brightness advertising player/advertising machine
♦ Curved touch display
♦ Full bonding TFT lcd panel with touch screens
♦ Touch monitor with mirror
♦ OEM/ODM/Customization
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
