Dustproof 17 Inch Infrared Touch Monitor Screen For Kiosk Width 390mm
Dustproof 17 inch ir touchscreen monitor lcd/led panel display monitor for kiosk
1-10 point real multi touch
Aluminum frame /LED/LED display
Free for 1 year warranty
Optional size:10.4'' 12.1'15''15.6''17''18.5''19''21.5''22''23.6''27''...........
Can Customizable vanfalprool /waterproof /dusproof/Anti Sunlight/AG/AR/AF Glass option.
Specification:
|
General information |
|
| Model | COT170-IPF03 |
| Series | Dust-proof and compact |
| Monitor Dimentions | Width:390mm Height: 322mm Depth: 51.4mm |
| LCD Type | 17’’ a-Si TFT-LCD |
| Video Input | VGA, DVI,HDMI. |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface | Mount bracket, horizontal or vertical |
| Warranty | 1 year for complete unit |
| LCD Specification | |
|
Active Area(mm) |
337.92(H)×270.336(V) |
| Resolution | 1280×1024 |
| Pixel Pitch(mm) | 0.264×0.264 (H×V) |
| Nominal Input Voltage | +5V(Typ) |
| Viewing Angle (v/h) | 85/85/80/80 (Typ.) |
|
Contrast |
3000:1 |
| Luminance(cd/m2) | 300 |
| Interface | LVDS |
| Response Time(Rising/Falling) | 7/5 (Typ.)(Tr/Td) ms |
|
Support Color |
16.7M |
| Backlight MTBF(hr) | 30000 |
| Touchscreen Specification | |
| Type | Cjtouch infrared touch screen |
| Multi touch | 2 points touch |
| Touch Life Cycle | 50 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240V AC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
Product Picture

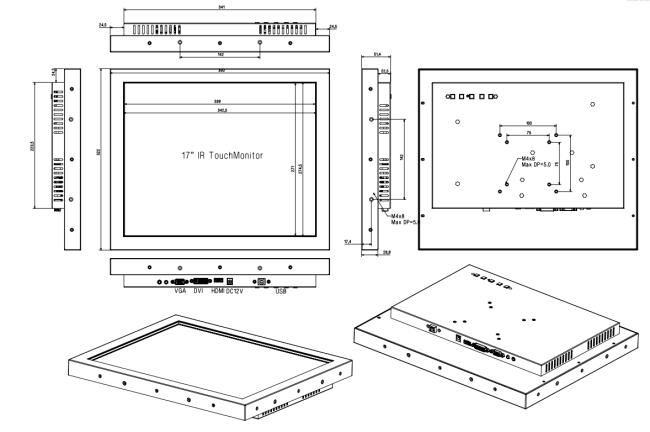

Drawing :
