22inch Acoustic Wave Touch Screen 1680×1050 With 1 Year Warranty
Factory custom Dustproof 22inch SAW Touchscreen monitor LCD+LED Panel display monitor
This monitor will come with 4mm/6mm Industrial touch screen,
Waterproof, dust-proof, Anti-glare, Anti-vandal are optional.
Multiple mounting options including rear Mount and VESA mounting
Can do USB and RS232 touch interface, DVI, HD-MI, VGA video input optional
Technology:
Dongguan CJTouch Electronic Co., Ltd. is a leading provider of touchscreens, touch monitors and All-in-one computers. With advanced, cost-effective touch solutions, CJTouch believes in engaging with customers while providing customized services.
CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most cutting-edge solutions in the industry.
Sur face Acoustic Wave (SAW) touch technology
Infrared touch technology
Projected Capacitive Touch technology
Applications:
We offer an extensive array of services with products being widely used in industries such as finance, gaming, retail store, kiosk,health care, education, etc.
Specification :
| Model | COT220-APK02 |
| Series | Dustproof |
| Monitor Dimensions | Width: 526mm Height: 345mm Depth: 54.5mm |
| Weight(N.W/G.W) | 6Kg / 9Kg (Approx.) |
| LCD Type | 22"SXGA Color TFT-LCD (Panel Model :G220EG01 V0) |
| Video Input |
Accepts RGB input directly, DVI,HDMI and Audio function can be supported optionally |
| Recommend Resolution | 1680(RGB)×1050 |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| Regular Warranty | 1 years for SAW Sensor; 3 years for controller; 1 year for LCD |
| Agency Approval | FCC,CE |
2.LCD specs
| Active Area(mm) | 473.76 × 296.1 (H×V) |
| Resolution | 1680×1050 |
| Dot Pitch(mm) | 0.094×0.282 mm |
| Nominal Input Voltage VDD | +5.0V(Typ) |
| Viewing angle (v/h) | 85/85/80/80 (Typ.) |
| Contrast | 1000:1 |
| Brightness | 250 |
|
Pixel Pitch(W×H) |
0.282×0.282 mm [90PPI] |
| Support Color | 16.7M colors |
| Response Time | 1.3/3.7 (Typ.)(Tr/Td) |
| NOTE:The LCD Specification will change follow the relevant LCD panel brand and model | |
3.Touch screen
| Type | Cjtouch Surface Acoustic Wave(SAW) |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 16ms |
| Touch System Interface | RS-232 and USB interface |
| Power consumption | +5V@80mA |

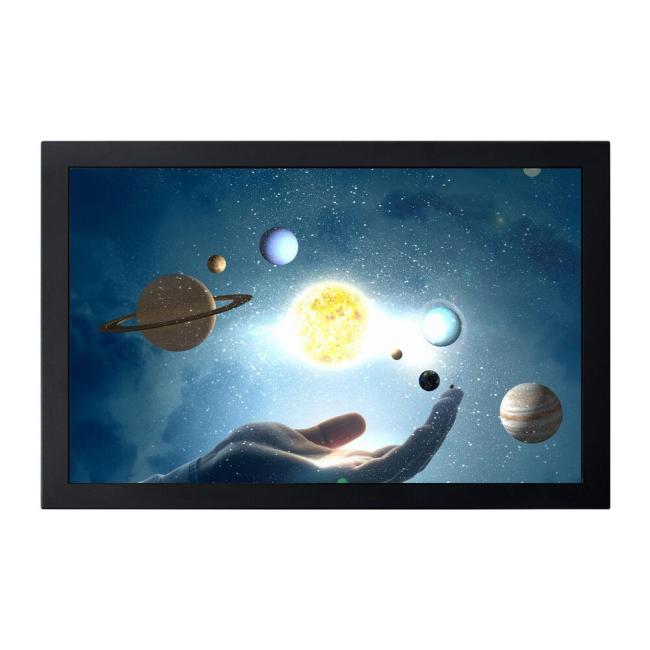

Touch Monitor Pictures

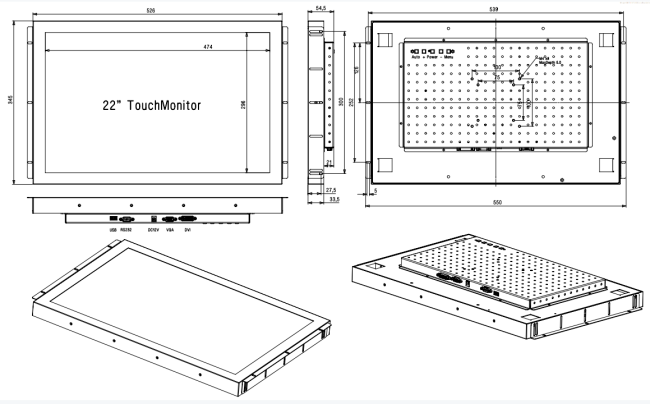

Products Drawing :
