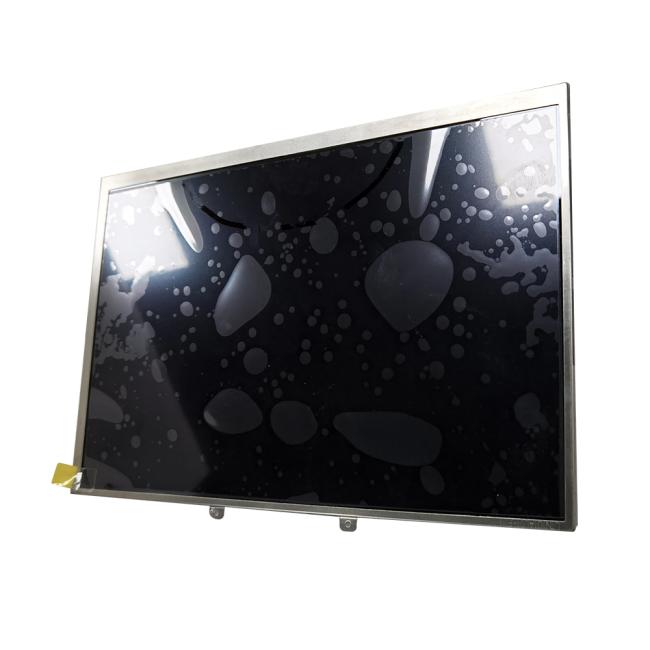

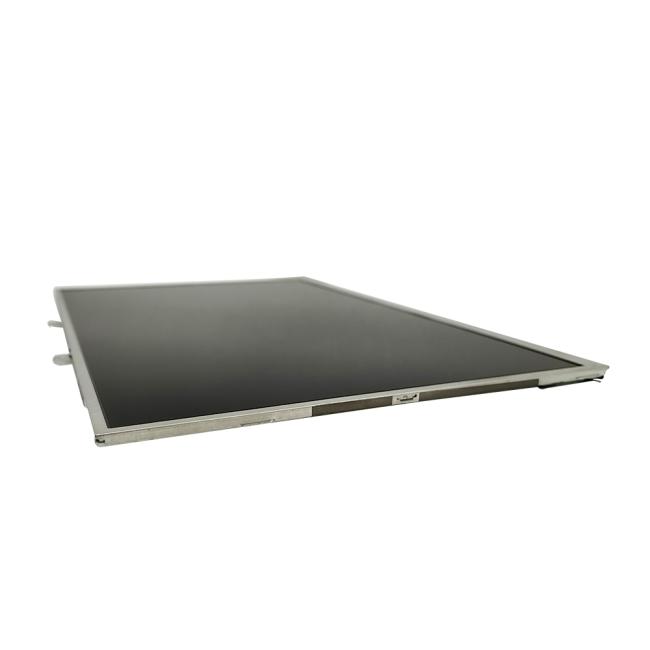

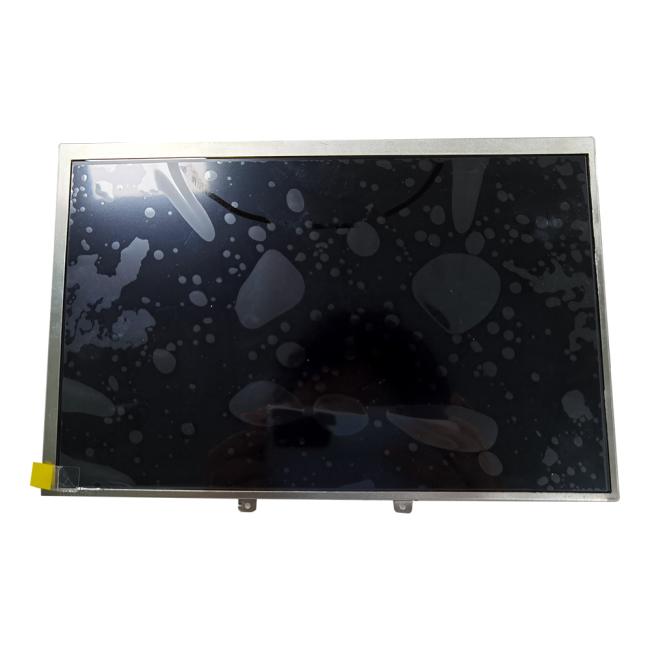

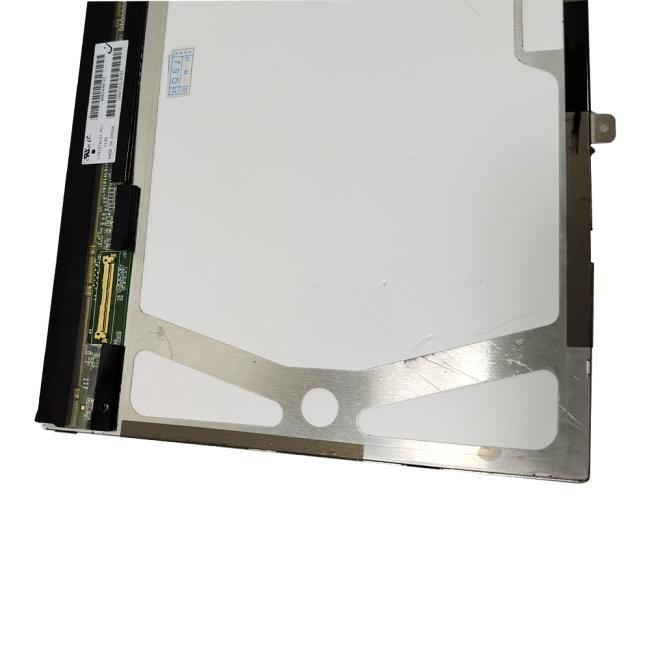

1280x800 TFT LCD Panel , Industrial / Medical 10.1'' LVDS Display Panel
10.1 Inch 1280x800 res Industrial/Medical LVDS IPS Screen LCD Screen
GENERAL DESCRIPTION
CJLTN101AL01 is a color active matrix TFT (Thin Film Transistor) liquid crystal display
(LCD) that uses amorphous silicon TFT as switching devices.

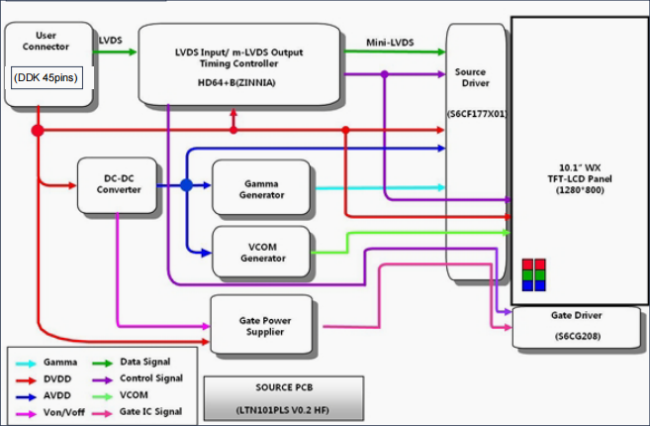

This model is composed of a TFT LCD panel, a driver circuit and a backlight unit.
The resolution of a 10.1" contains 1280 x 800 pixels and can display up to 16,777,216 colors.

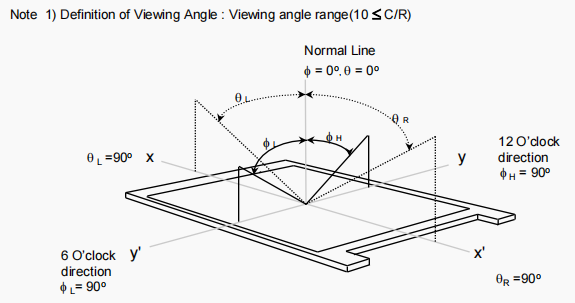

6 O'clock direction is the optimum viewing angle.
APPLICATIONS
• Notebook PC
• If the usage of this product is not for PC application, but for others, please contact SEC
GENERAL INFORMATION FEATURES

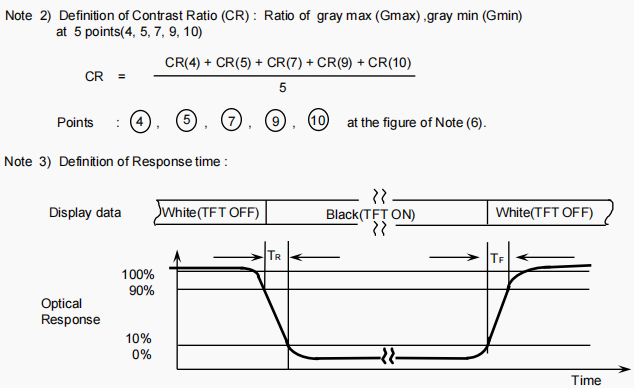

• High contrast ratio
• WXGA (1280 x 800 pixels ) resolution
• Low power consumption
• Fast Response
• DE (Data enable) only mode
• 3.3V LVDS Interface
• Green product (RoHS compliant)
APPLICATIONS
• Notebook PC
• If the usage of this product is not for PC application, but for others, please contact SEC
GENERAL INFORMATION
|
Item |
Specification |
Unit |
Note |
|
Display area |
216.96(H)x 135.60(V)(10.1( diagonal) |
mm |
|
|
Driver element |
a-Si TFT active matrix |
|
|
|
Display colors |
16,777,216 |
colors |
6bit +FRC |
|
Number of pixel |
1280x 800 |
pixel |
|
|
Pixel arrangement |
RGB vertical stripe |
|
|
|
Pixel pitch |
0.1695(H)x 0.1695(V) |
mm |
TYP |
|
Display Mode |
Normally black, PLS mode |
|
|
|
Surface treatment |
Glare |
|
|
ENVIRONMENTAL ABSOLUTE RATINGS
|
Item |
Symbol |
Min. |
Max. |
Unit |
Note |
|
Storage temperate |
TSTG |
-20 |
60 |
C |
-1 |
|
perating temperate(Temperature of glass surface) |
TOPR |
0 |
50 |
C |
-1 |
|
Shock(non-operating) |
Snop |
|
240 |
G |
(2),(4) |
|
Vibration (non-operating) |
Vnop |
|
2.41 |
G |
(3),(4) |
BACK-LIGHT UNIT
|
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
LED Forward Current |
IF |
|
23 |
|
mA |
|
|
LED Forward Voltage |
VF |
2.8 |
2.9 |
3 |
V |
|
|
LED Array Voltage |
VP |
|
17.4 |
|
V |
VFX 6LEDs |
|
Power Consumption |
P |
|
2.4 |
2.5 |
W |
IFXVFX 36LEDs |
|
perating Life TimeOI |
Hr |
10000 |
|
|
Hour |
-1 |
LVDS AC characteristic
|
TEM |
SYMBOL |
MIN. |
TYe |
MA入 |
n1 |
|
|
|
LVDS input clock frequency |
FcuK_ LVDs |
20 |
|
p0 |
t tc |
|
|
|
RIN skewmargin |
pOMHz Fcuy Lvos265MHz |
RSKM |
400 |
|
*… |
|
8 |
|
65MHzFcuy Los220MHz |
-o00 |
|
o… |
|
8 |
||
|
Modulating frequency ofLVDS inputclock during SSCG |
FcLK_MoD |
|
|
… |
l |
|
|
|
Maximum deviation ofLVDS input clockduring SSCG |
FcLK_DEv |
|
|
- |
C |
|
|

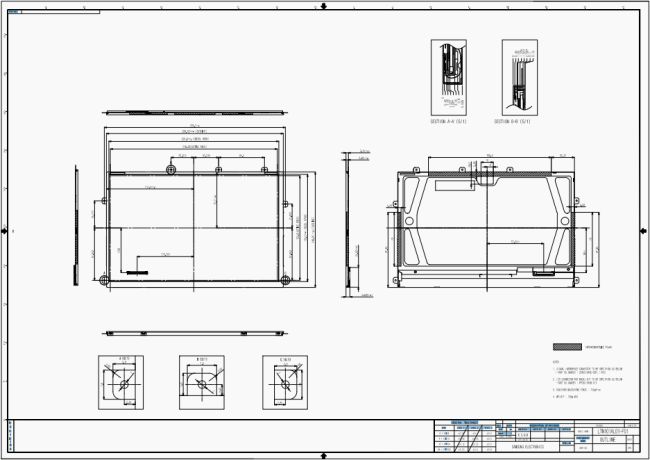

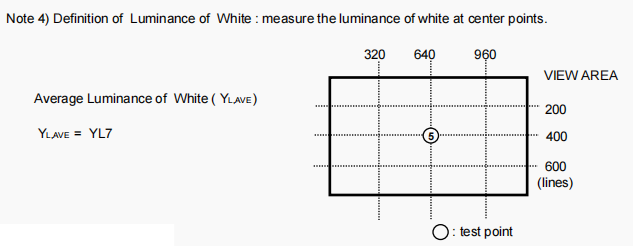

Drawing
Details
TFT LCD Module
