10.4inch Surface Wave Touch Screen 1024×768 Open Frame Waterproof
Price:
negotiable
MOQ:
1 pcs
Delivery Time:
2-3 days
Brand:
CJ TOUCH
Product Description
Factory Saw Monitor Lcd display 10.4inch Open Frame Waterproof SAW Touchscreen Monitor
LCD 1024*768 etc Resolution;Touch 1,2,4,6,10 MultiPoints SAW TouchScreen Touch Panel Touch Frame;
3/4/6mm Thickness Tempered Transparent Pure Touch Glass Overlay Kit
Ports USB,RS232,,VGA,DVI,Remote Control etc Interface;
Application Filed Usage
Self-service Kiosk,Advertising Signage,Whiteboard,Touch Table,Payment ATM,POS,Vending ect.
Industrial /Indoor IP65 / Anti Glare / Anti Reflection / Anti Fingerprint ect.
Tempered / Vandalproof / Waterproof / Anti Sunlight / Dustproof / AR / AG / AF ect option;
Structure Design
Openframe / Wall mounted / Embedded / Landscape / VESA and Brackets Supported ;
About Us:
Professional R&D team, pre-sales and after-sales service,,Provide you with professional solutions.
Our products are exported to the EU, America, Asia, etc., and have enjoyed a great reputation in the whole world market.
Our goal is "Innovation First, Quality First, Customer First, Service First". We are committed to providing quality products,
3/4/6mm Thickness Tempered Transparent Pure Touch Glass Overlay Kit
Ports USB,RS232,,VGA,DVI,Remote Control etc Interface;
Application Filed Usage
Self-service Kiosk,Advertising Signage,Whiteboard,Touch Table,Payment ATM,POS,Vending ect.
Industrial /Indoor IP65 / Anti Glare / Anti Reflection / Anti Fingerprint ect.
Tempered / Vandalproof / Waterproof / Anti Sunlight / Dustproof / AR / AG / AF ect option;
Structure Design
Openframe / Wall mounted / Embedded / Landscape / VESA and Brackets Supported ;
About Us:
Professional R&D team, pre-sales and after-sales service,,Provide you with professional solutions.
Our products are exported to the EU, America, Asia, etc., and have enjoyed a great reputation in the whole world market.
Our goal is "Innovation First, Quality First, Customer First, Service First". We are committed to providing quality products,

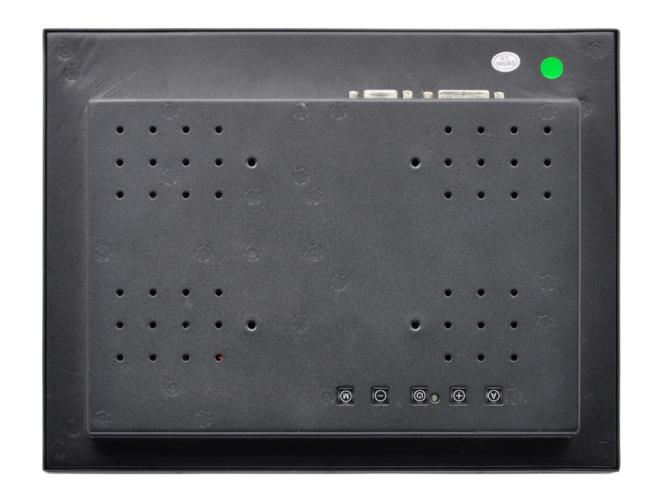

Touch monitor Pictures:
Specification :
| Model | COT104-APF02 |
| Series | Water-proof and Compact |
| Monitor Dimensions | Width: 268mm Height: 208mm Depth: 44mm |
| Weight(N.W/G.W) | 4Kg / 7.8Kg (Approx.) |
| LCD Type | 10.4"SXGA Color TFT-LCD (Panel Model :G104EG01 V0) |
| Video Input |
Accepts RGB input directly, DVI,HDMI and Audio function can be supported optionally |
| Recommend Resolution | 1024×768 |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| Regular Warranty | 3 years for SAW Sensor; 3 years for controller; 1 year for LCD |
| Agency Approval | FCC,CE |
2.LCD specs
| Active Area(mm) | 211.2x158.4 |
| Resolution | 1024×768 |
| Dot Pitch(mm) | 0.0685×0.2055 mm (H×V) |
| Signal Electrical Voltage Input | 3.3V (Typ.) |
| Viewing angle (v/h) | 75/75/75/75 |
| Contrast | 900:1 |
| Luminance(cd/m2) | 350cd/m² |
| Response Time(Rising/Falling) | 20/10 (Typ.)(Tr/Td) |
| Support Color | 16.7M colors |
| Backlight MTBF(hr) | 50000 |
| NOTE:The LCD Specification will change follow the relevant LCD panel brand and model | |
3.Touch screen
| Type | Cjtouch Surface Acoustic Wave(SAW) |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 16ms |
| Touch System Interface | RS-232 and USB interface |
| Power consumption | +5V@80mA |

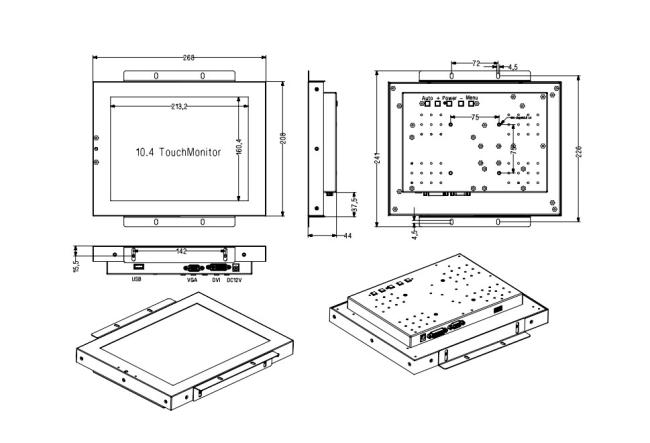

Products Drawing :
