18.5 Inch 30 Pins IPS LCD Panel Screen With Normal LED LVDS WXGA 1366*768
18.5 Inch 30 pins Normal LED LVDS WXGA 1366*768 IPS LCD Panel Screen
OVERVIEW

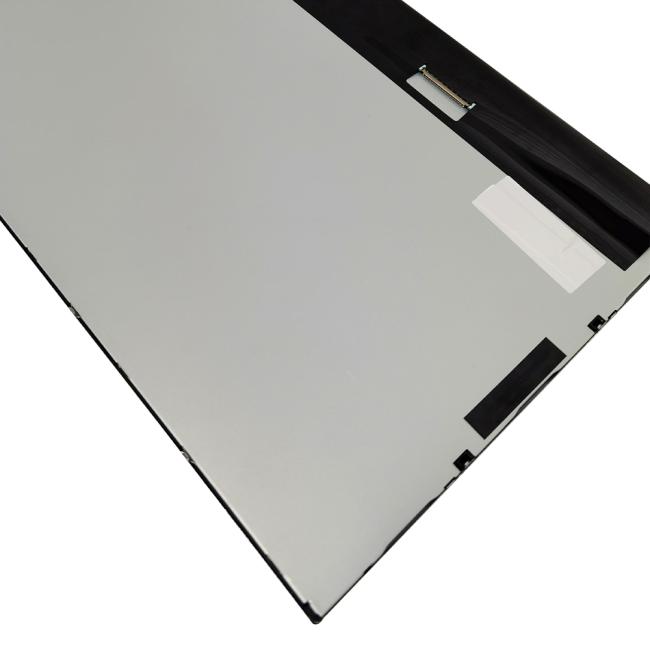

CJV185BJ1-LE1 is a 18.5” TFT Liquid Crystal Display module with WLED Backlight unit and 30 pins 1ch-LVDS
interface. This module supports 1366 x 768 HDTV format and can display up to 16.7M (8 bit) colors. The
converter module for Backlight is not built in.
FEATURES
High brightness (250 nits)
High contrast ratio (3000 1)
Fast response time (Gray to gray average 9.0 ms)
High color saturation (NTSC 72%)
HDTV (1366 x 768 pixels) resolution, true HDTV format
DE (Data Enable) only mode
LVDS (Low Voltage Differential Signaling) interface
Optimized response time for 60 Hz frame rate
Ultra wide Viewing Angle: Super MVA Technology
RoHS compliance.
GENERAL SPECIFICATIONS
|
Item |
Specification |
Unit |
|
Active Area |
409.8(H)x 230.4(V) |
mm |
|
Bezel OpeningArea |
413.4 (H)x 234.0(V) |
mm |
|
Driver Element |
a-si TFT active matrix |
|
|
Pixel Number |
1366x R.G.B.x 768 |
pixel |
|
Pixel Pitch(Sub Pixel) |
0.1 (H)x 0.3(V) |
mm |
|
Pixel Arrangement |
RGB vertical stripe |
|
|
Power consumption |
14.89W(Max.)[Cell 4.89W(Max.)+ BLU 10.00W(ax.) |
Watt |
|
Display Colors |
16.7M |
color |
|
Display Operation Mode |
Transmissive Mode/Normally Black |
|
|
Surface Treatment |
Anti-Glare coating (Haze 1.0%),Hard coating (3H) |
MECHANICAL SPECIFICATIONS
| Item | Min. | Typ. | Max. | Unit | |
| Module Size | Horizontal(H) | 429.87 | 430.37 | 430.87 | mm |
| Vertical(V) | 254.1 | 254.6 | 255.1 | mm | |
| Depth (D) | 9.5 | 10.5 | 11.5 | mm | |
| Weight | 1170 | 1230 | 1290 | g | |
ABSOLUTE RATINGS OF ENVIRONMENT
| Item | Symbol | Value | Unit | |
| Min. | Max. | |||
| Storage Temperature | TST | -20 | 60 | C |
| perating Ambient Temperature | TOP | 0 | 50 | PC |
| Shock (Non-Operating) | SNOP | 50 | G | |
| Vibration (Non-Operating) | VNOP | 1 | G | |
Note (1) Temperature and relative humidity range is shown in the figure below.
(a) 90 %RH Max. (Ta 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The maximum operating temperature is based on the test condition that the surface temperature of
display area is less than or equal to 65 ºC with LCD module alone in a temperature controlled chamber.
Thermal management should be considered in final product design to prevent the surface temperature
of display area from being over 65 ºC. The range of operating temperature may degrade in case of
improper thermal management in final product design.
Note (3) 11 ms, half sine wave, 1 time for ± X, ± Y, ± Z.
Note (4) 10 ~ 200 Hz, 30 min, 1 time each X, Y, Z.
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough so that
the module would not be twisted or bent by the fixture.
Measurement Setup:
The LCD module should be stabilized at given temperature for 1 hour to avoid abrupt
temperature change during measuring. In order to stabilize the luminance, the measurement
should be executed after lighting backlight for 1 hour in a windless room.
