SAW LCD Open Frame Touchscreen Monitor 23.6 Inch Wall Mounted
High quality EXW factory direct sale (15" 17" 18.5" 23.6.") Wall Mounted VESA 23.6'' SAW Touch Monitor
- Metal and plastic well-sealed front frame, IP65 sur face waterproof.
- With New brandgrade A TFT LCD, 300cd/m2 to 1500cd/m2 brightness optional
- Supporting multi-language OSD control
- VGA+DVI+HDMIVideo input, USB/RS232 touch interface
- Support Win-dows/An-droid/Lin-ux OS
Touch Screen Monitor
Series: metal-cased open frame dustproof type
Size: 582mm*338mm*55mm
LCD Type:SXGA Color TFT-LCD
OSD control: [auto]+[-]+[+]+[menu]+[power], Allow on-screen adjustments of Brightness, Contrast Ratio,
Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Mount interface: VESA 75mm and 100m + mount bracket
Transportation choice:
Transport and Packing process Express(UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available. Delivery Time Samples: 1-3working days 500PCS or More orders:5-15working days
prfessional 360 °safe
pack vacuum bage-5 layer corrugated carton-thick pearl cotton protectiom
Specification :
| Model | COT236-APK03 |
| Series | Water-proof and Compact |
| Monitor Dimensions | Width: 582mm Height: 338mm Depth: 55mm |
| Weight(N.W/G.W) | 5Kg / 7.8Kg (Approx.) |
| LCD Type | 23.6"SXGA Color TFT-LCD (Panel Model :G236EG01 V0) |
| Video Input |
Accepts RGB input directly, DVI,HDMI and Audio function can be supported optionally |
| Recommend Resolution | 1920(RGB)×1080, FHD |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| Regular Warranty | 1years for SAW Sensor; 1years for controller; 1 year for LCD |
| Agency Approval | FCC,CE |
LCD specs
| Active Area(mm) | 521.28(W)×293.22(H) mm |
| Resolution | 1920(RGB)×1080, FHD |
| Dot Pitch(mm) | 0.0905×0.2715 mm |
| Nominal Input Voltage VDD | 5.0V (Typ.) |
| Viewing angle (v/h) | 89/89/89/89 (Typ.)(CR≥10) |
| Contrast | 3000:1 |
| Luminance(cd/m2) | 250 (Typ.) |
| Response Time(Rising/Falling) | 1.5/3.5 (Typ.)(Tr/Td) ms |
| Support Color | 16.7M colors |
| Backlight MTBF(hr) | 50000 |
| NOTE:The LCD Specification will change follow the relevant LCD panel brand and model | |
Touch screen
| Type | Cjtouch Surface Acoustic Wave(SAW) |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 16ms |
| Touch System Interface | RS-232 and USB interface |
| Power consumption | +5v |

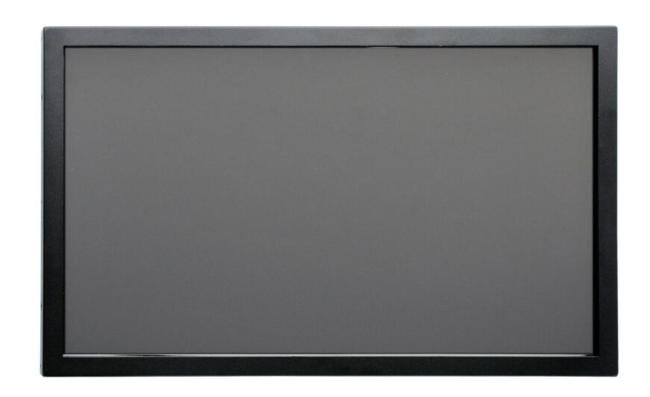

Touch monitor Pictures
Products Drawing :
