Projected Capacitive PCAP Touch Screen Ratio 4:3 Square 12.1inch
4:3 Square Screen PCAP Touchscreen 12.1 inch capacitive touch screen technology
Applictions
- Smart mirror
- Digital signage
- All in one pc
- ATM
- Indoor kiosks
- Outdoor kiosk
Main Feature
- Compact size for easy integration
- Customization available on glass sensorsize, driver, accessories
- Strong mechanical strength
- High image clarity
- Free of drift
- Z-axis pressure recognition
- Short response time
The Capacitive have a advantage , you need know .
Durability.Of course, another key benefit of capacitive touchscreen technology is its strength and durability. Touchscreen devices see a lot of use throughout the years, especially in commercial applications. As such, it’s important to choose a durable touchscreen device that’s able to withstand this use. Capacitive touchscreens are more durable than resistive touchscreens, as dirt and fingerprint smudges won’t affect their function.
Projected capacitive is susceptible to electrical noise due to its detection mechanism. Noise from LCD is especially influential to the sensor. Recently, various methods are developed to improve tolerance for noise.
Are yo know what is capacitive touch screen technology?
Capacitive touch screens are control displays that utilise the electrical properties of the human body as input. When a finger (or specialised input device, such as stylus) comes in contact with the display it detects when and where on the display the user touches it.
Specification of Product
| Technical specification | |
| Type | Projected touch panel |
| Interface | USB |
| Number of touch point | 10 |
| input voltage | 5V ---- |
| Pressure endurance value | <10g |
| Input | Hand writing or capacitive pen |
| Transmittance | >90% |
| Surface Hardness | ≥6H |
| Usage | The specification is applied to transparent and handwriting input |
| capacitive touch panels | |
| Application | It's applied in ordinary electric equipments and automatic office facilities |
| Cover Lens Specification | |
| Pressure Value | 400 ~500 mPA above 6u |
| Ball Drop Test | 130g±2g, 35cm, No damage after the impact at the central area for once. |
| Hardness | ≥6H Pencil: 6H Pressure: 1N/45. |
| Environment | |
| Working temperature and humidity | -10~+60ºC, 20~85% RH |
| Storage temperature and humidity | -10~+65ºC, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 65ºC, 120H |
| Cold resistance | -10ºC, 120H |
| Thermal shock | -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles |
| Anti - glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Software(Firmware) | |
| Scanning | Auto full screen scanning |
| Operate system | Win 7,Win 8,Win10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |

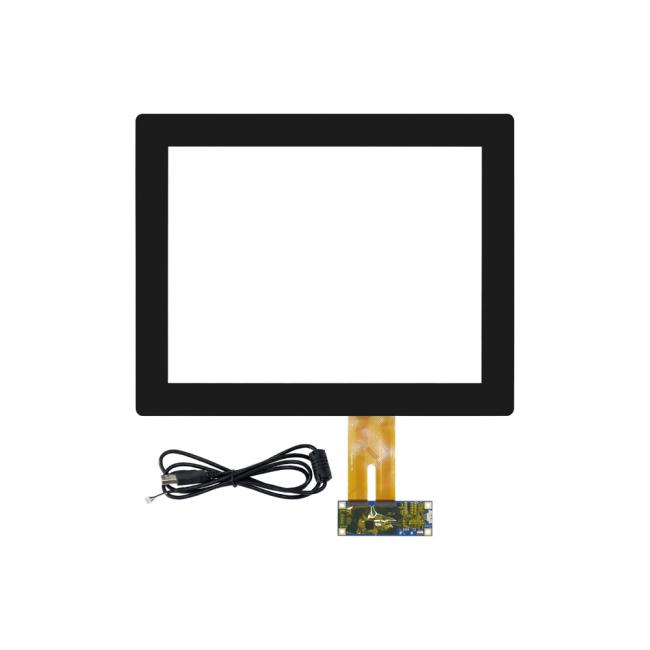

Picture of Product

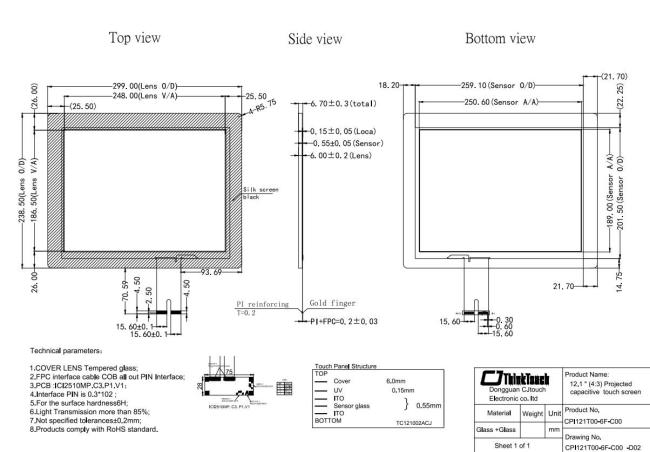

Technical Drawing
