USB Interface 16: 9 PCAP Touch Screen 21.5 Inches For POS Terminals
PCAP Touch Panel 21.5 Inches Capacitive Touchscreen USB Interface 16: 9 for POS terminals
Common Applications
- POS terminals
- Financial - ATM and Bill Pay Kiosks
- Factory Automation
- Industrial Control
- Medical Equipment
- Outdoor and indoor kiosk
- Retail Kiosks
- Mobile
- Auto Industry
Industrail Control
Touch Panel solution
1.G+G structure,2.0 thick Corning tempered glass cover with surface AF processed.
2.Cypress program with FPC screened.
3. Convenient for TP and TFT Assembly
Intelligent Household
Touch screen solution
1.G+G Structure, thick tempered glass cover with surface AF processed
2.Cypress or Atmel program with good anti-interfernce
Medical Equipment
Touch Panel solution
1.G+G structure,Asahi glass cover with surface AF processed.
2.Cypress, fifth series progarm with good anti-interference performance
Outdoor Equipment
Touch screen solution:Capacitive touch screen glove function and water function, service life, visibility in the sun, impact resistance is generally comcerned, so stable G+G structure is usually recommeded
Are yo know what is capacitive touch screen technology?
Capacitive touch screens are control displays that utilise the electrical properties of the human body as input. When a finger (or specialised input device, such as stylus) comes in contact with the display it detects when and where on the display the user touches it.
Specification of Product
| Technical specification | |
| Type | Projected touch panel |
| Interface | USB |
| Number of touch point | 10 |
| input voltage | 5V ---- |
| Pressure endurance value | <10g |
| Input | Hand writing or capacitive pen |
| Transmittance | >90% |
| Surface Hardness | ≥6H |
| Usage | The specification is applied to transparent and handwriting input |
| capacitive touch panels | |
| Application | It's applied in ordinary electric equipments and automatic office facilities |
| Cover Lens Specification | |
| Pressure Value | 400 ~500 mPA above 6u |
| Ball Drop Test | 130g±2g, 35cm, No damage after the impact at the central area for once. |
| Hardness | ≥6H Pencil: 6H Pressure: 1N/45. |
| Environment | |
| Working temperature and humidity | -10~+60ºC, 20~85% RH |
| Storage temperature and humidity | -10~+65ºC, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 65ºC, 120H |
| Cold resistance | -10ºC, 120H |
| Thermal shock | -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles |
| Anti - glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Software(Firmware) | |
| Scanning | Auto full screen scanning |
| Operate system | Win 7,Win 8,Win10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |

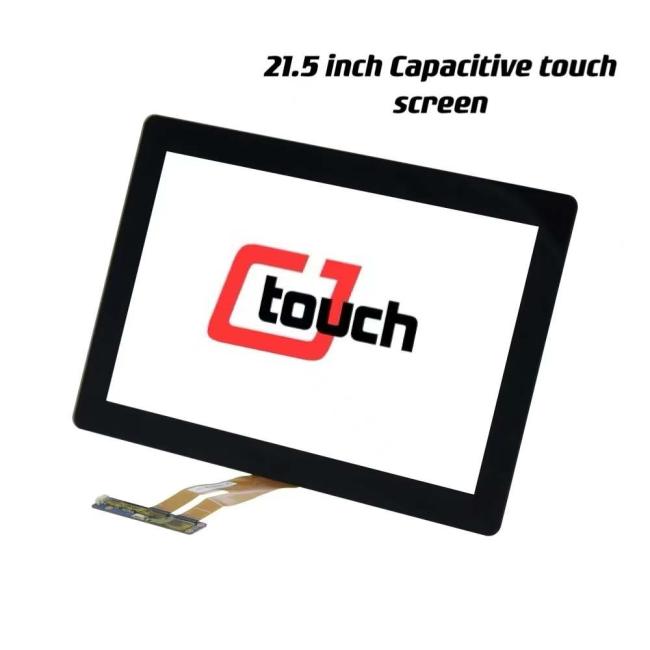

Picture of Product

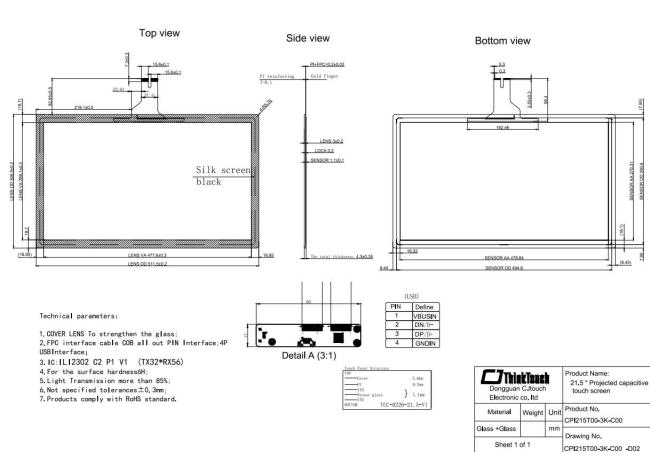

Technical Drawing
