CE High Brightness Infrared Touch Monitor
19inch Infrared Touch Monitor Customization of Industrial for gaming monitor
OEM & ODM It Is Welcome
1. Different Metal Case Optional.
2. No Frame Optional (SKD).
3. Touch Screen Optional (Resistive,Infrared,Capacitive Touch).
4. DVI USB AV BNC SD Card Optional.
5. Industrial Panel, IPS Panel, High Brightness Panel Optional.
6. Different Size 5inch-42inch Optional.
7. Desktop,Wall Mount Optional.
8. Customized Service.
Features
--1-10 point real multi touch
--VESA Hole for Wall Mount installation
--Free for 1 year warranty
--Optional size:10.4'' 12.1'15''15.6''17''18.5''19''21.5''22''23.6''27''...........
--Can Customizable vanfalprool /waterproof /dusproof/Anti Sunlight/AG/AR/AF Glass option.
--This 19 inch open frame touch monitor is nicely mounted onto any special application. Industrial grade chipset&overall design.
Easy to be integrated on POP/POS display/kiosk.
Packing Details
--Anti-static film, bubble bag, Pearl sponge and wooden case
Delivery Details
--1~20 working days after deposit received
Delivery method
--TNT, DHL, airfreight and seafreight are welcome. You are welcome to ask us to delivery for you and contact your own agent.
Specification:
| General | |
| Model | COT190E-IWF02 |
| Series | Water-proof (IP65) |
| Monitor Dimensions | Width: 415mm Height: 343mm Depth: 55mm |
| LCD Type | 19” Active matrix TFT-LCD |
| Video Input | VGA and DVI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface | 1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 376.320(H)×301.060(V) |
| Resolution | 1280×1024@60Hz |
| Dot Pitch(mm) | 0.294×0.294 |
| Nominal Input Voltage VDD | +5.0V(Typ) |
| Viewing angle (v/h) | 80°/85° |
| Contrast | 1000:1 |
| Luminance(cd/m2) | 250 |
| Response Time(Rising/Falling) | 3ms/7ms |
| Support Color | 16.7M colors |
| Backlight MTBF(hr) | 30000 |
| Touchscreen Specification | |
| Type | Cjtouch Infrared (IR) touch screen |
| Multi-touch | Default 2points touch , 4/6/10points can optional |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |

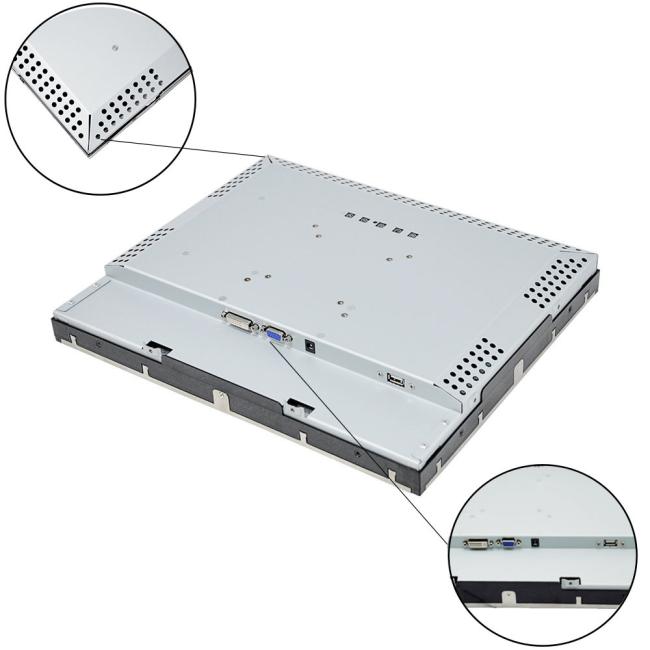

Product Picture
Drawing :
