Waterproof All In One AIO Touch PC Vandal Proof ODM 10.1 Inch
Price:
Negotiable
MOQ:
10 pcs
Delivery Time:
5-8 working days
Brand:
CJTOUCH
Product Description
AIO Touch PC ODM Aio Touch Waterproof And Vandal Proof Computer 10.1 Inch
10.1'' aio touch Features:
- Aio touch size 10.1'' / 10.4'' / 12.1'' / 15'' / 15.6'' / 17'' / 18.5'' / 19'' / 21.5'' / 23.8'' / 27'' / 32'' / 43'' / 49'' / 55'' / 65''
- High image clarity and fast respone
- 3mm tempered vandal-proof touch screen glass
- L G, Sam sung, AU O, BO E, ect LCD LED Panels
- capacitive technology support 5 or 10 points multi-touch function
- IP65 touch screen sur face waterproof sealled
- It can be euipped with J1900/I3/I5/I7/A-ndroid diffferent CPU for high speed operation
- 2/4/8/16/32 GB ect RAM Optional
- 32/64/128/256/512 ect SSD Optional
- Perfact solutions for use in public
- VESA mounting and rear mounting
- Factory competitive price and fast delivery
- Our aio touch are widely used in so many fileds, including transportation, entetainment, education, finance, industrial control, self service kiosk, etc.
- Warranty: 1 year
- 14 years' experienced manufacturer of SAW / Infrared / PCAP touch screens/touch monitors/ aio touch
10.1inch Aio Touch Specifications:
| General Information | |
| Model | CCT101-CFK-M600SE |
| CPU | Intel(R)Celeron(R)CPU J1900 - I3/I5/I7/ Android optional |
| RAM | 2/4/8/16/32GB RAM |
| Memory | 32/64/128/256/512 GB SSD |
| Interface | H-DMI, VGA, USB, COM, RJ45 |
| Power supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A |
| Mount Interface |
1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical |
| OS | Wins7/8/10 or Android |
| LCD Specification | |
| Active area(mm) | 220.8(H)×139.2(V) mm |
| Resolution | 1280(RGB)×800, WXGA, 149PPI |
| Pixel Pitch(mm) | 0.0565×0.1695 |
| Nominal input voltage VDD | 3.3v |
| Viewing angle(v/h) | 80/80/80/80 (Typ.)(CR≥10) |
| Contrast | 500:1 (Typ.) (TM) |
| Luminance (cd/m2) | 400 cd/m² (Typ.) |
| Response time | 30 (Typ.)(Tr+Td) ms |
| Support color | 16.7M , 45% NTSC |
| Backlight MTBF(hr) | 30000 |
| Environment | |
| Operating temp. | 0~50°C |
| Storage temp. | -20~60°C |
| Operating temp. | 20%~80% |
| Stroage RH | 10%~90% |
Components Of AIO Touch:
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
Package :
1 or 2 pcs aio touch in one carton, EPE package inside
Shipping :
For small order: By Fedex, TNT, UPS, DHL etc. door to door service
For big order: By air to airport or by sea to seaport

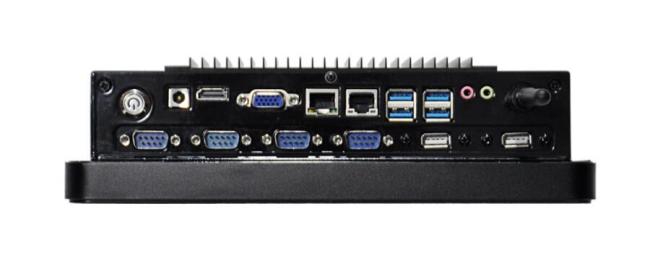

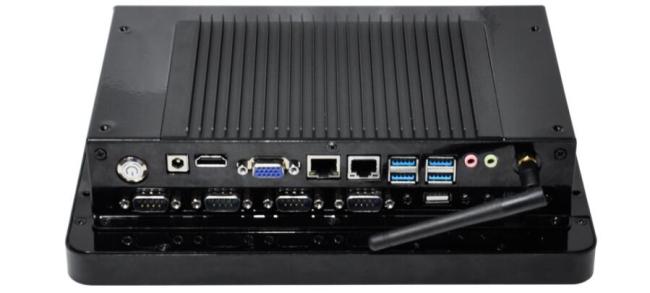

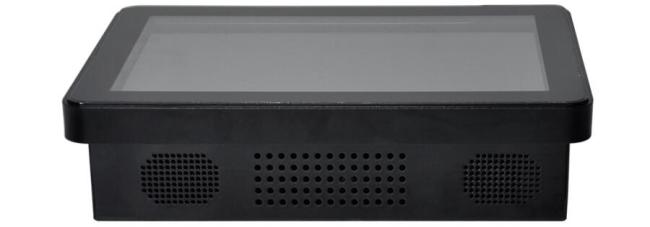

10.1'' AIO Touch Pictures:
10.1'' AIO Touch Drawing:
