Minisize Capacitive PCAP Touch Screen For Smart Lockers 10.4 Inch
Minisize PCAP Touch screen 10.4 inch Capacitive touch screen for Smart Lockers monitor
Capacitive Touch Screen Technology
Capacitive touch screen technology is a popular and durable technology that is used in a wide range of applications. It has a higher clarity than resistive technology, but it only responds to finger contact and will not work with a gloved hand or pen stylus. A capacitive touch screen consists of a glass panel with a capacitive (charge storing) material coating its surface. Circuits located at corners of the screen measure the capacitance of a person touching the overlay.
Used on smart monitor , projected capacitive is the most widespread touch screen, How is the structure like?
There are various structures in projected capacitive technology. "One sheet piled-up structure" has X and Y electrodes piled on one sheet. "One sheet two-sided structure" has X and Y electrodes on its surface and backside of one sheet respectively. "Two-sheets-laminated structure" consists of two sheets facing each other with electrodes in between.
Main Feature
- High image clarity
- Free of drift
- Z-axis pressure recognition
- Strong mechanical strength
- Short response time
- Compact size for easy integration
- Customization available on glass sensorsize, driver, accessories
Specification of Product
| Technical specification | |
| Type | Projected touch panel |
| Interface | USB |
| Number of touch point | 10 |
| input voltage | 5V ---- |
| Pressure endurance value | <10g |
| Input | Hand writing or capacitive pen |
| Transmittance | >90% |
| Surface Hardness | ≥6H |
| Usage | The specification is applied to transparent and handwriting input |
| capacitive touch panels | |
| Application | It's applied in ordinary electric equipments and automatic office facilities |
| Cover Lens Specification | |
| Pressure Value | 400 ~500 mPA above 6u |
| Ball Drop Test | 130g±2g, 35cm, No damage after the impact at the central area for once. |
| Hardness | ≥6H Pencil: 6H Pressure: 1N/45. |
| Environment | |
| Working temperature and humidity | -10~+60ºC, 20~85% RH |
| Storage temperature and humidity | -10~+65ºC, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 65ºC, 120H |
| Cold resistance | -10ºC, 120H |
| Thermal shock | -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles |
| Anti - glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Software(Firmware) | |
| Scanning | Auto full screen scanning |
| Operate system | Win 7,Win 8,Win10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |

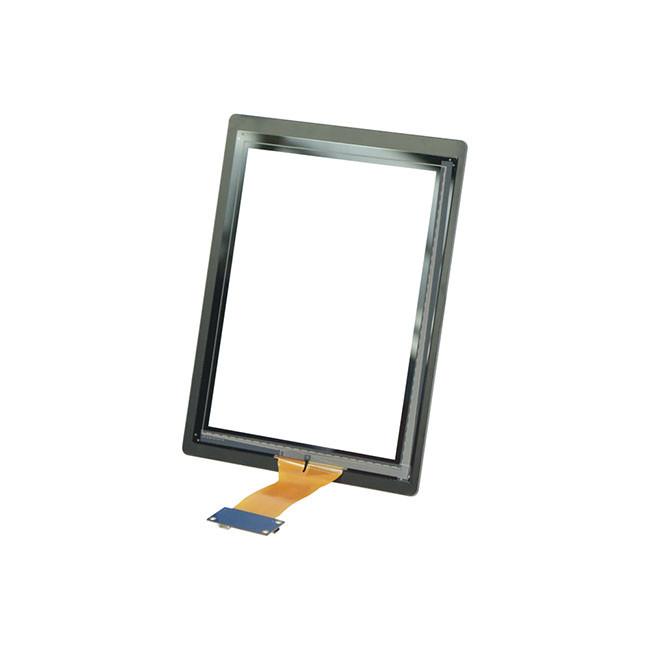

Picture of Product

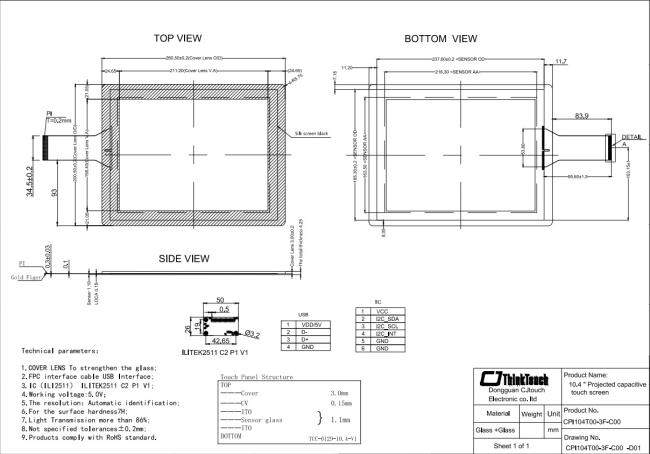

Technical Drawing
