Projected Capacitive Screen Touch Film 43 Inch with USB Interface
43 Inch Projected Capacitive PCAP Touch Foil with USB Interface 10 Points Touch
Capacitive PCAP Nano TouchScreen Touch Foil Film--CJTOUCH--Made in China Factory Direct Supply
Standard Size 15~110 inch Capacitive Nano TouchScreen Film Touch Foil;
USB 10 points PCAP Touch Foil Films;
CE,FCC,ISO14001,ISO9001,RoHS Certifications;
EETI,ILKTEK,LG,Samsung,SIS Compatible Controller Board Driver;
Transparent ,Frameless ,Waterproof ,Esay and Delightful for Transpotation;
Windows,Linux,Android,Imac,Raspberry pi OS Supported.
Applications of Interactive Touch Foil
Suitable for Store window displays,
Indoor / outdoor kiosks,Exhibitions,
Visitor attractions,
Museums Touch tables,
Training,meeting rooms,etc.
Advantage of interactive touch foil:
· Low power consumption, the maximu consumption is only 0.5w
· The film sensor could be laminated on any smooth nonmetallic flat
· Various size from 17" to 100", lowest cost customization.
Specification
| Description | Capacitive Nano Touch Foil / Touch Film | ||
| Technology | Capacitive Nano Touch Foil | ||
| Regular Size Range | 22-84 inch | ||
| Main Characters | Transparent / Frameless / Waterproof / Esay Transpotation / Screen can be Bent Over | ||
| Application | Workable with Projector / LCD / LED | ||
| Installation | Paste to Windows /Wooden/ Glass/ Mirror/ Plastic/ LCD/ LED /Acrylic ect | ||
| Touch Points | 10-30 Touch Points | ||
| IC Chipset | SIS (Taiwan) | ||
| Foil Thickness | 0.2mm | ||
| Light Transmission | 91% | ||
| PCB Wire | 80 / 110 / 160 Road | ||
| Touch Deviation | ≤2mm (Safe Distance) | ||
| Respond Time | ≤3ms | ||
| Drive | Free-Drive | ||
| Scan Velocity | 90p/1ms | ||
| Power | 0.5W-2W | ||
| Supply Voltage | 5V USB | ||
| Output Method | USB | ||
| Distance with LCD | 2mm | ||
| Humidity | 0%~95% RH No Condensation | ||
| Temperature | -20ºC~+70ºC | ||
| Anti-Glare | Outdoor / Indoor Full Strong Sunlight Workable | ||
| Touch Method | Click and Drag, Amplification, Narrow, Rotation | ||
| Output Interface | Standard HID-USB Device | ||
| OS Support | Windows/Androd/Linux | ||
| Accessory | Touch Foil + Controller Board + USB Cable | ||
| Scanning frequency | 60Hz~130hz |
| Output way | USB 2.0 (HID public interface to USB Mini B interface) |
| Compatibility system | WIN7 /WIN8 /Linux (ubantu 12.04.4,kernel version:3.11.0-15-generic) / Android4.2 or above ( kernel veersion>A20->3.3.0,RK3188->3.0.36) etc. |
Types of Interactive Touch Foil
| Touch foil type for paste | Tail version | Touch controller | Foil ratio | Touch points |
| Water-adhesive (removable) | Base or bottom | USB interface | 16:9 (17”-120”) | 2,4,10,20,40 points |
| Adhesive (permernent) | Side or short | USB interface | 4:3 (40”-120”) |
Details

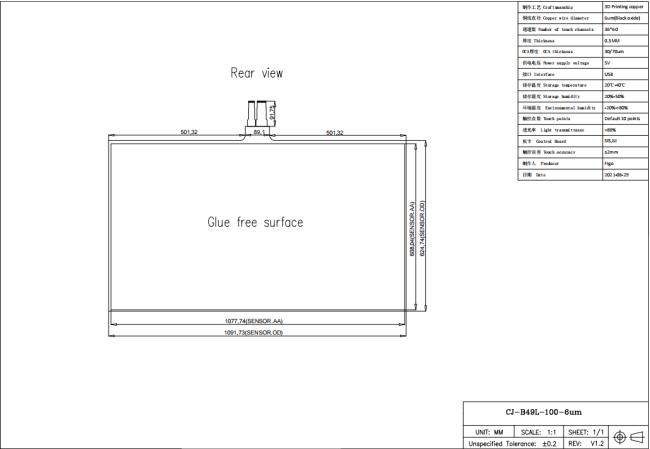

Drawings
