Anti Tamper 19" Capacitive Resistive Touch Screen For Office Facilities Monitor
Anti-tamper 19" Capacitive touch Panel PCAP Touch screen for office facilities monitor
Limitations of capacitive touch screen technology:
- Ofter retofitted to standrad non-touch LCD monitors which may not be as stable when touched
- Not usually fitted to monitors when applications require dust , water , scratch or impact resistance
- Can not be used with stylus
- Requires periodic recalibration
- Can not be used with a gloved hand
Application
- Point of sale terminals
- Monitor
- AMT
- All in one PC
- Control Panels
- Industrial automation
- Digital signage
- Information kiosk
- Kiosk indoor and outdoor
Take an application example In Financial institutions
In addition to the industries described above. We use touch screens widely in a variety of industries. We frequently use touch screen in Shopping malls, exhibition halls and venues. Therefore,It can transmit and publicize information mainly through the touch screen. To facilitate delivery to customers.
Take an application example In Cinema
The staff of touch screen manufacturers introduced that movie theaters are also places where touch screens are often used. Many movies need to be promoted through the touch screen in the early stage of the screening. Only in this way can more people learn about the movie and its content. So according to the staff of touch screen manufacturers, the frequency of use of touch screens in movie theaters has gradually increased in recent years. So many lovers and theater staff lovers lov many movie lovers and theater staff.
Main Feature
- High image clarity
- Free of drift
- Z-axis pressure recognition
- Strong mechanical strength
- Short response time
- Compact size for easy integration
- Customization available on glass sensorsize, driver, accessories
Specification of Product
| Technical specification | |
| Type | Projected touch panel |
| Interface | USB |
| Number of touch point | 10 |
| input voltage | 5V ---- |
| Pressure endurance value | <10g |
| Input | Hand writing or capacitive pen |
| Transmittance | >90% |
| Surface Hardness | ≥6H |
| Usage | The specification is applied to transparent and handwriting input |
| capacitive touch panels | |
| Application | It's applied in ordinary electric equipments and automatic office facilities |
| Cover Lens Specification | |
| Pressure Value | 400 ~500 mPA above 6u |
| Ball Drop Test | 130g±2g, 35cm, No damage after the impact at the central area for once. |
| Hardness | ≥6H Pencil: 6H Pressure: 1N/45. |
| Environment | |
| Working temperature and humidity | -10~+60ºC, 20~85% RH |
| Storage temperature and humidity | -10~+65ºC, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 65ºC, 120H |
| Cold resistance | -10ºC, 120H |
| Thermal shock | -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles |
| Anti - glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Software(Firmware) | |
| Scanning | Auto full screen scanning |
| Operate system | Win 7,Win 8,Win10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |

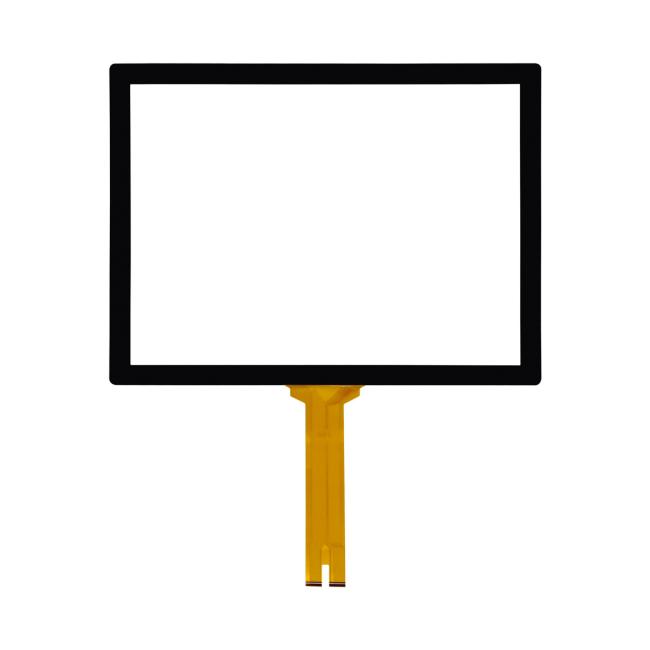

Picture of Product
Technical Drawing
