Luminance 400 Cd/M2 CE All In One Computers , ODM Touch Screen AIO Desktop
Pcap Capacitive Multi Touch Aio Touch PC All In One 13.3 Inch With I3 I5 I7
13.3'' Touch PC All In One Features:
- Aio touch size 10.1'' / 10.4'' / 12.1'' / 15'' / 15.6'' / 17'' / 18.5'' / 19'' / 21.5'' / 23.8'' / 27'' / 32'' / 43'' / 49'' / 55'' / 65''
- High image clarity and fast respone
- 3mm tempered vandal-proof touch screen glass
- L G, Sam sung, AU O, BO E, ect LCD LED Panels
- capacitive technology support 5 or 10 points multi-touch function
- IP65 touch screen sur face waterproof sealled
- It can be euipped with J1900/I3/I5/I7/A-ndroid diffferent CPU for high speed operation
- 2/4/8/16/32 GB ect RAM Optional
- 32/64/128/256/512 ect SSD Optional
- Perfact solutions for use in public
- VESA mounting and rear mounting
- Factory competitive price and fast delivery
- Our Touch PC All In One are widely used in so many fileds, including transportation, entetainment, education, finance, industrial control, self service kiosk, etc.
- Warranty: 1 year
- 14 years' experienced manufacturer of SAW / Infrared / PCAP touch screens/touch monitors/ Touch PC All In One
13.3 inch Touch PC All In One Specifications:
| General Information | |
| Model | CCT131-CFK-3855U |
| CPU | J1900 / I3/I5/I7/ Android optional |
| RAM | 2/4/8/16/32GB RAM |
| Memory | 32/64/128/256/512 GB SSD |
| Interface | H-DMI, VGA, USB, COM, RJ45 |
| Power supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A |
| Mount Interface |
1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical |
| OS | Wins7/8/10 or Android |
| LCD Specification | |
| Active area(mm) |
293.472 × 165.078 (H×V) mm |
| Resolution |
1920(RGB)×1080 (FHD) 166PPI |
| Pixel Pitch(mm) |
0.15285×0.15285 mm [166PPI] |
| Nominal input voltage VDD | 3.3v |
| Viewing angle(v/h) |
89/89/89/89 (Typ.)(CR≥10) |
| Contrast |
800:1 |
| Luminance (cd/m2) | 400 cd/m² (Typ.) |
| Response time | 25 (Typ.)(Tr+Td) ms |
| Support color |
16.7M , 90% NTSC |
| Backlight MTBF(hr) | 30000 |
|
Touchscreen Specification |
|
|
Type |
Cjtouch PCAP Projected Capacitive touch screen |
|
Multi touch |
10 points touch |
|
Touch Life Cycle |
10 millions |
|
Touch Response time |
8ms |
|
Touch System Interface |
USB interface |
|
Power consumption |
+5V@80mA |
|
External AC Power Adapter |
|
|
Output |
DC 12V /5A |
|
Input |
100-240 VAC, 50-60 Hz |
|
MTBF |
50000 hr at 25°C |
|
Environment |
|
| Operating temp. | 0~50°C |
| Storage temp. | -20~60°C |
| Operating temp. | 20%~80% |
| Stroage RH | 10%~90% |
Components:
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
Packing Details
--Anti-static film, bubble bag, Pearl sponge and wooden case
Delivery Details
--1~20 working days after deposit received
Delivery method
--TNT, DHL, airfreight and seafreight are welcome. You are welcome to ask us to delivery for you and contact your own agent.

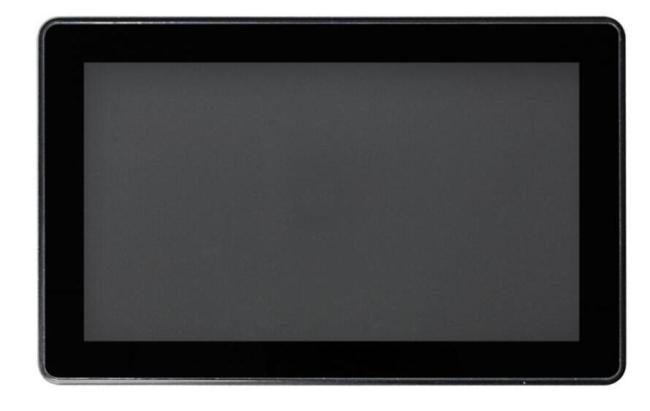

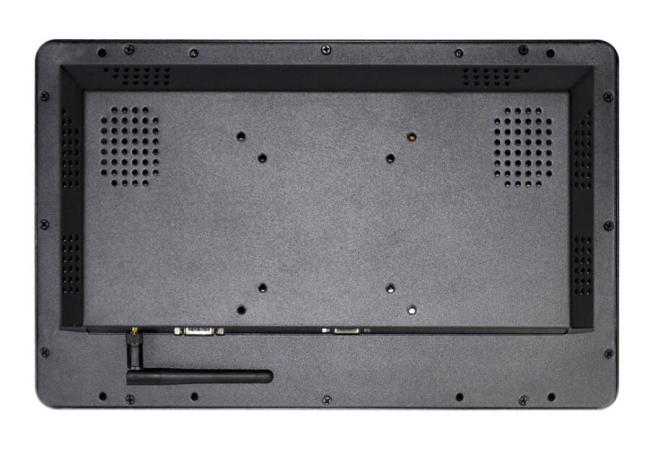

Pictures:

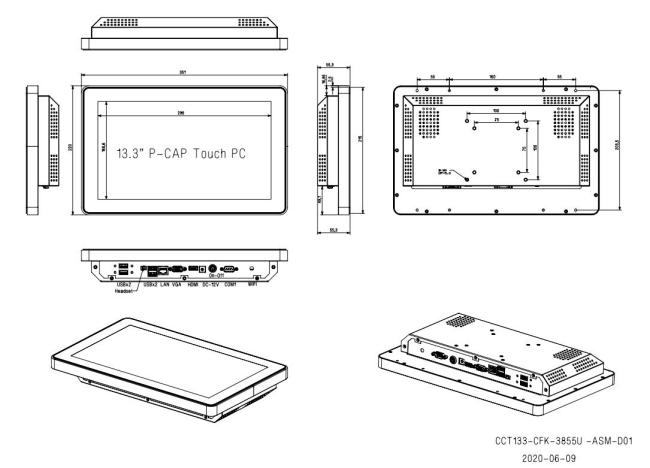

Drawing:
