DC5V Resistive Touch Screen Five Wire 12.1 Inch USB Interface Type
Five-Wire 12.1 inch Resistive Touch Screen for Industrial Application
Customized Resistive Touch Screen:
- Our resistive touch panel design can be suitable for housing design from the customers to cover their lens or replace the physical buttons on its original module.
- We are also capable of doing the customized shape needed to suit for customer's mechanical design.
- With the assistance of the simulation software, equipment with high accuracy and simplifying assembly process, we are capable of making the sample in shorter period and with lower development charge.
Product Application:
- Telecommunication Devices
- Consumer Products
- Technical Equipment
- Office Automation
- Home Appliances
- Automobile Display
- IT Products
- Medical Equipment
Do resistive touch screens work with gloves?
Known as resistive touchscreens, these devices support bare and gloved fingers. Since they work using pressure instead of capacitance, you can use a resistive touchscreen device while wearing gloves.
How does a resistive touch screen work?
In simple terms, a Resistive Touch Screen is a touch-sensitive computer display that responds by applying pressure.When contact is made to the surface of the touchscreen, these two sheets are pressed together. Each sheet has horizontal and vertical lines that register the precise location of the touch.
Main Feature
- High accurate
- Pressure sensitive
- Can responds to any input device
- Short response time
- Compact size for easy integration
- Customization available
Specification of Product
| 5 Wires Resistive Touch Panel Specification | |
| General Size | 10.4 inch To 22 inch |
| Fit in with | Panel display device |
| Mechanical | |
| Input Method | Finger or gloved hand (rubber ,cloth or leather) |
| Active Force | Stylus or Finger or Similar <45g~110g |
| Ball Impact | ø13.0. Steel Ball/9g, Height=30cm, 1 time, no damage [Impact at center area] |
| Durability | >35 million touches |
| Positional Accuracy | <1.5% |
| Optical | |
| Light Transmission | 82% |
| Clear surface | <3% |
| Anti-glare Surface | <4% |
| Anti-Newton | <10% |
| Gloss | 90±20 gloss units tested on a hard-coated front surface Accordance with ASTM D 2457 |
| Electrical | |
| Supply voltage | DC5V |
| Circuit Resistance | X:20~25Ω0, Y:20~250Ω |
| Linearity | X<1.5%, Y<1.5% |
| Response | <15ms |
| Insulation | >20MΩ/25V(DC) |
| Endurance | No acting damage at DC50V/60sec. |
| Resolution | Based on controller resolution of 4096 x 4096 |
| Environmental | |
| Operation Temperature | -10°C ~ +60°C |
| Operation Humidity | 20%RH ~ 85%RH, no condensing |
| Storage Temperature | -40°C ~ +80°C |
| Storage Humidity | 10%RH ~ 90%RH, no condensing |
| Waterproof | Not damaged by running water applied to the active area |
| Reliability | |
| Heat Cycle | 70°C /240 hrs |
| Cold Cycle | -40°C /240 hrs |
| Thermal Cycle | -40°C ~7°0C [60 min./cycle] *10 cycles |
| Operationg System | |
| Operation System | Linux/ Dos / Windows ME/95/98 / NT4.0/XP/2000/ 7 /Mac OS |
| Warranty | |
| Touch screen 1 years | |
| Touch Controller 1 years | |

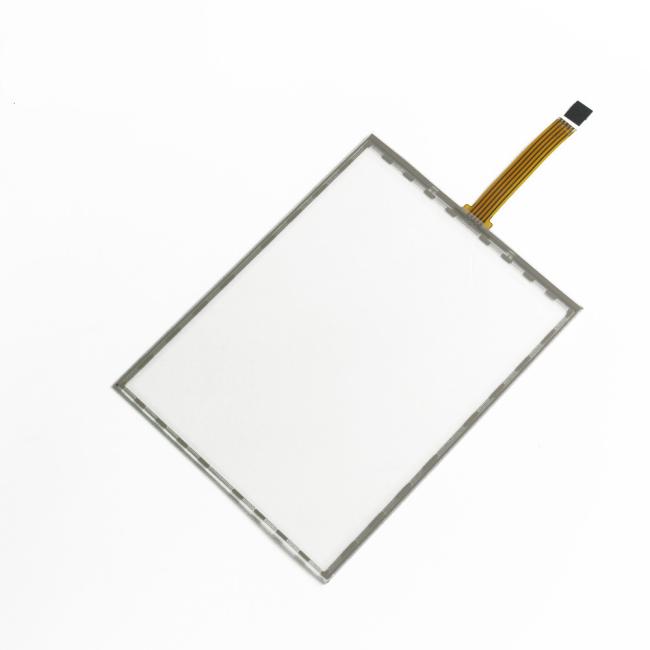

Picture of Product

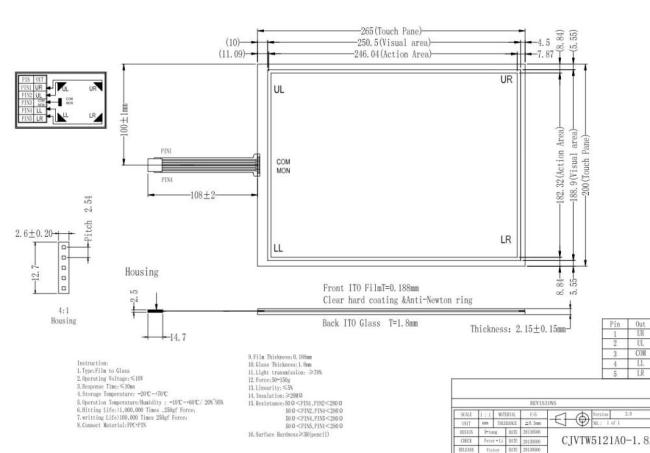

Technical Drawing
